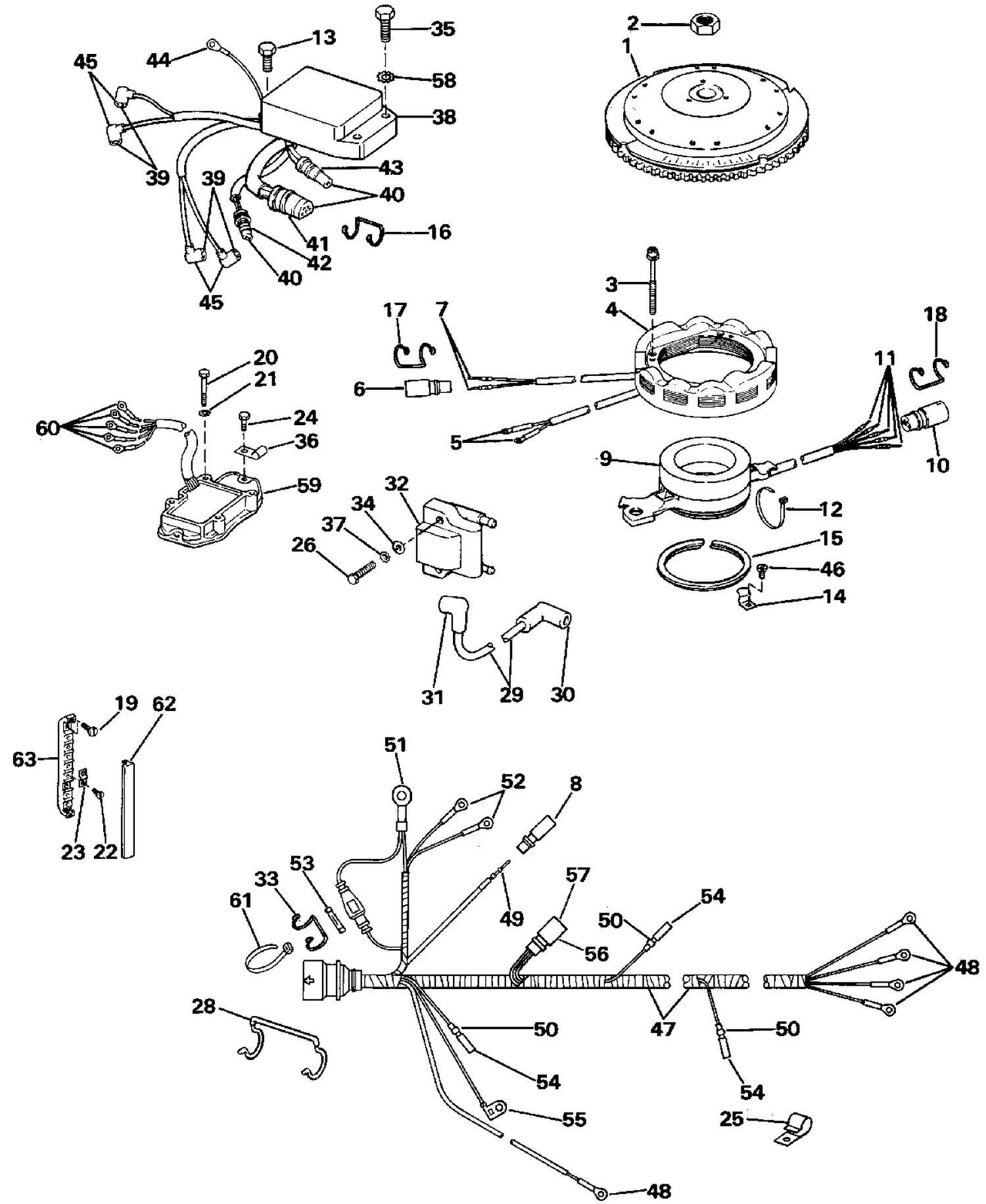

| Ref | Part Number | Description |
|---|
| 1 |
0583339 |
FLYWHEEL ASSY. |
| 2 |
0329267 |
NUT, Flywheel This part replaces 0314209. |
| 4 |
0583536 |
STATOR ASSY., 3/9 AMP |
| 8 |
0123405 |
CONNECTOR |
| 9 |
0583379 |
TIMER BASE & SENSOR ASSY. |
| 14 |
0326439 |
CLAMP, Leads |
| 15 |
0313666 |
RET., Distributor base 1 |
| 17 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 18 |
0512743 |
DISPOSITIF DE RETENUE |
| 19 |
0306644 |
VIS, capteur de papillon |
| 20 |
0306778 |
ECREW,Exhaust cover,1-3/8"long |
| 22 |
0329182 |
VIS, borne |
| 23 |
0315004 |
FIL DE LIAISON, bornier |
| 24 |
0306049 |
SCREW |
| 25 |
0330151 |
CLAMP, Harness to oil tank boss |
| 26 |
0328726 |
SCREW (Use existing coil screw) |
| 29 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 32 |
0582508 |
COIL ASSY |
| 35 |
0328726 |
SCREW (Use existing coil screw) |
| 36 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 38 |
0582262 |
POWER PACK This part replaces 0583041. |
| 43 |
0123404 |
CONNECTOR, 1-socket plug |
| 47 |
0584004 |
MOTOR CABLE ASSY. This part replaces 0583703. |
| 50 |
0512186 |
INSULATING SLEEVE |
| 59 |
0585195 |
RECTIFIER & REGULATOR ASSY. This part replaces 0583529. |
| 62 |
0431792 |
COVER ASSY. |
