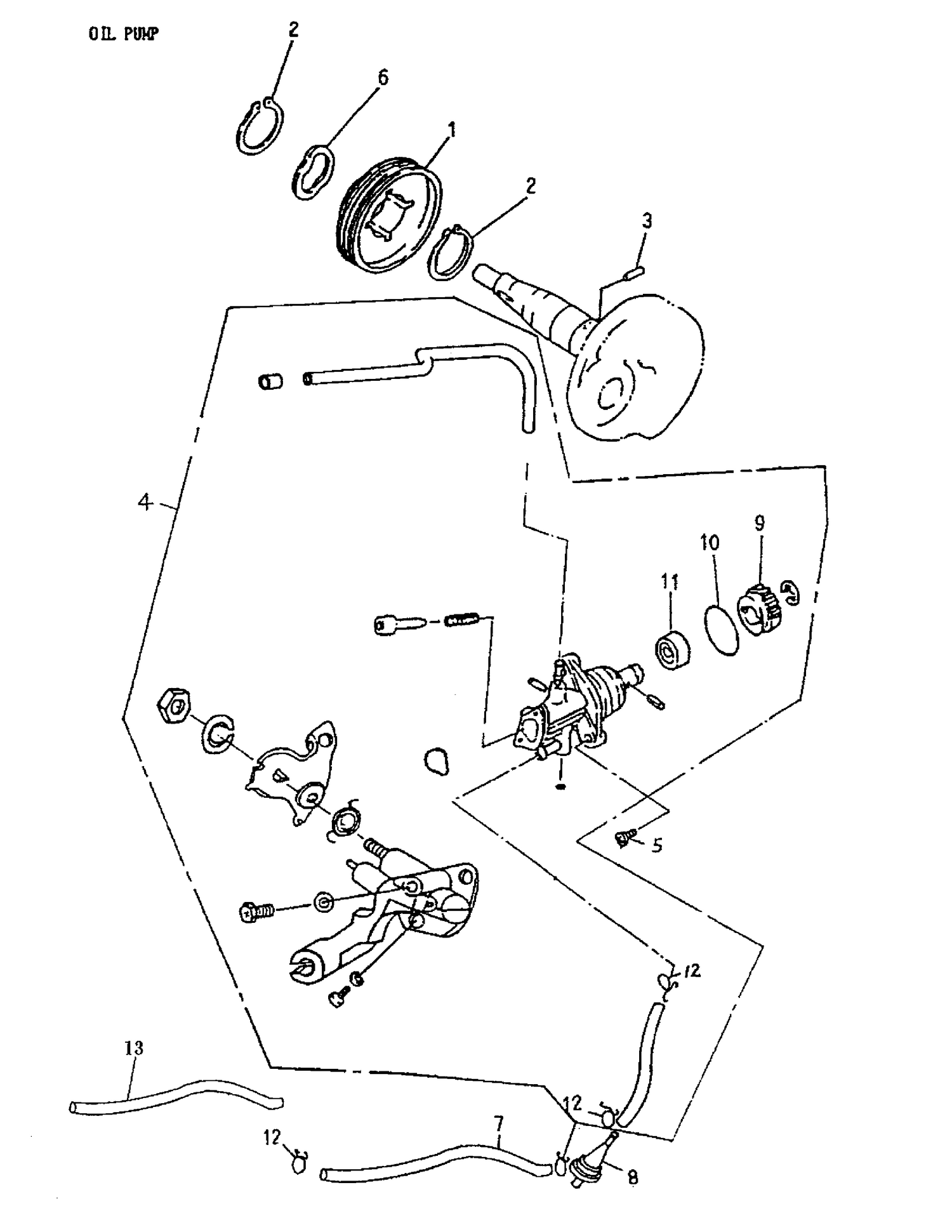

02- Oil Pump
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A15150104000 | Pump Drive Gear |
| 2 | A945111900S | External Circlip, Stw-19 |
| 3 | A96300030118 | CRANKSAHFT PIN - Call your local BRP dealership |
| 4 | A1510011700B | OIL PUMP ASS'Y - Call your local BRP dealership |
| 5 | V935000501501 | BOLT - Call your local BRP dealership This part replaces A9350005015. |
| 6 | A15151104000 | Wave Washer, 19.2 X 26 X 0.3 |
| 7 | A944000408490 | OIL TUBE - Call your local BRP dealership |
| 8 | A17502101000 | OIL FILTER CUP - Call your local BRP dealership |
| 9 | A15136110000 | Oil Pump Wormwheel, 40T |
| 10 | A91319110000 | OIL RING - Call your local BRP dealership |
| 11 | A9650009164 | OIL SEAL - Call your local BRP dealership |
| 12 | A9451008000 | Clip |
