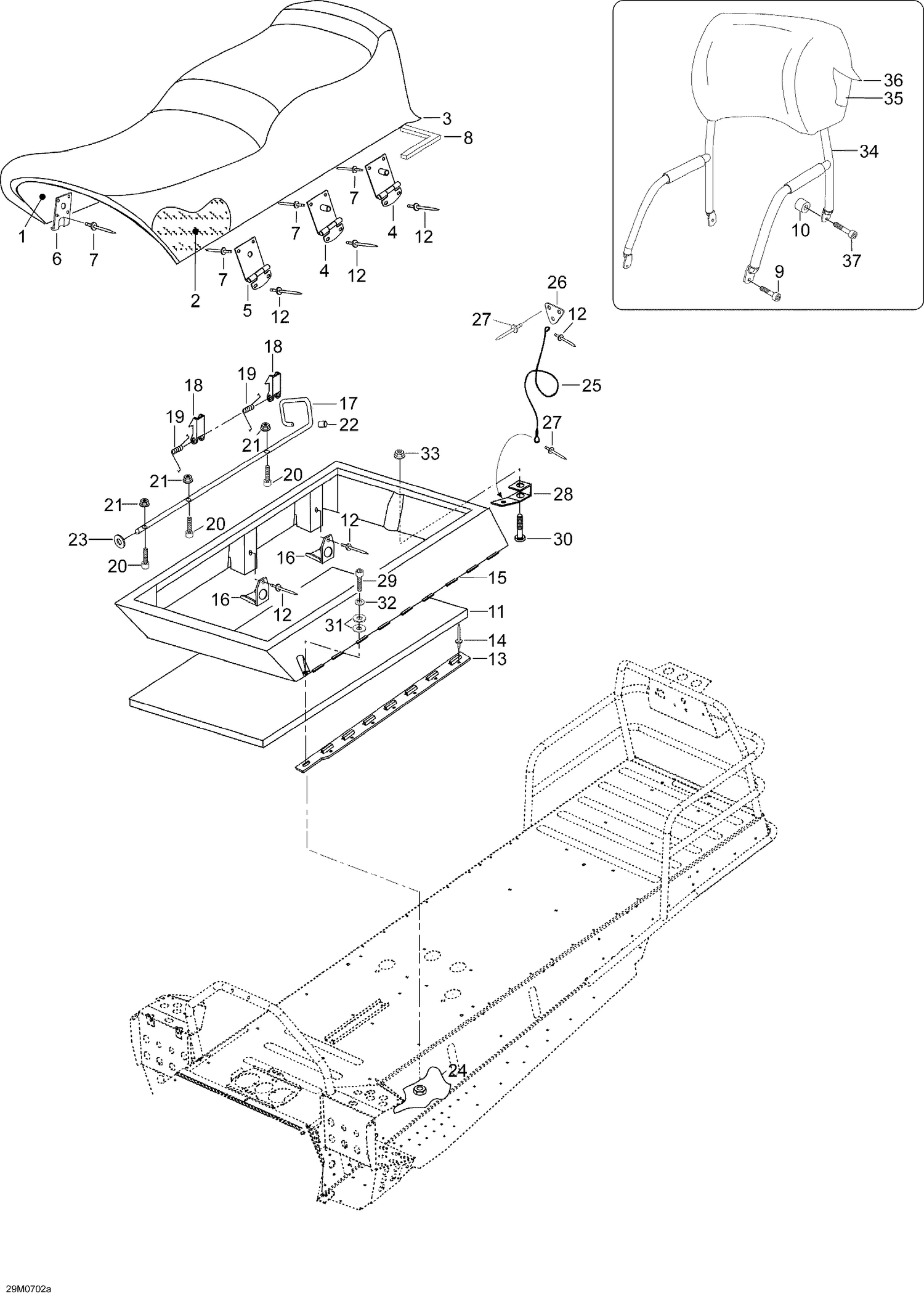

09- Seat WT 550
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | M519394 | Sub Seat |
| 2 | 605150323 | Foam Seat |
| 3 | 605153063 | COVER - Call your local BRP dealership |
| 4 | M549874 | HINGE - Call your local BRP dealership |
| 5 | M5440581 | HINGE - Call your local BRP dealership |
| 6 | M549732 | Lock Plate |
| 7 | M36071 | Rivet |
| 8 | M5440059 | SEALING STRIP PROFIL - Call your local BRP dealership |
| 9 | M40388 | SCREW-SOCKET - Call your local BRP dealership |
| 10 | M5440665 | Spacer |
| 11 | M5344621 | Foam |
| 12 | M36489 | Rivet |
| 13 | M5144028 | LH Support |
| 13 | M5144029 | RH Support |
| 14 | 36108 | Rivet This part replaces M36083. |
| 15 | M5142066 | Welded Seat Base Weld |
| 16 | M5443661 | Support |
| 17 | M5344987 | Pivot Pin |
| 18 | 605451589 | CAM LOCK - Call your local BRP dealership |
| 19 | M5444439 | SPRING - Call your local BRP dealership |
| 20 | M40144 | Screw M4 X 16 |
| 21 | 232541414 | Elastic Stop Nut M4 |
| 22 | M28019 | Cap |
| 23 | 234081410 | Flat Washer 8 mm |
| 24 | M33066 | NUT M6 - Call your local BRP dealership |
| 25 | 293750070 | Seat Retainer Cable This part replaces M546777. |
| 26 | 605452535 | SUPPORT - Call your local BRP dealership |
| 27 | M36038 | Rivet |
| 28 | M5444464 | Keeper Cable |
| 29 | M40052 | Socket Head Screw M6 X 20 |
| 30 | M40149 | Screw M6 X 30 |
| 31 | 234062410 | Flat Washer 6 mm This part replaces M20009. |
| 32 | 234161471 | Lock Washer M6, Black |
| 33 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 34 | M5245664 | Backrest |
| 35 | M539399 | Backrest Foam |
| 36 | 5340917 | COVER-BACKREST - Call your local BRP dealership This part replaces M5340917. |
