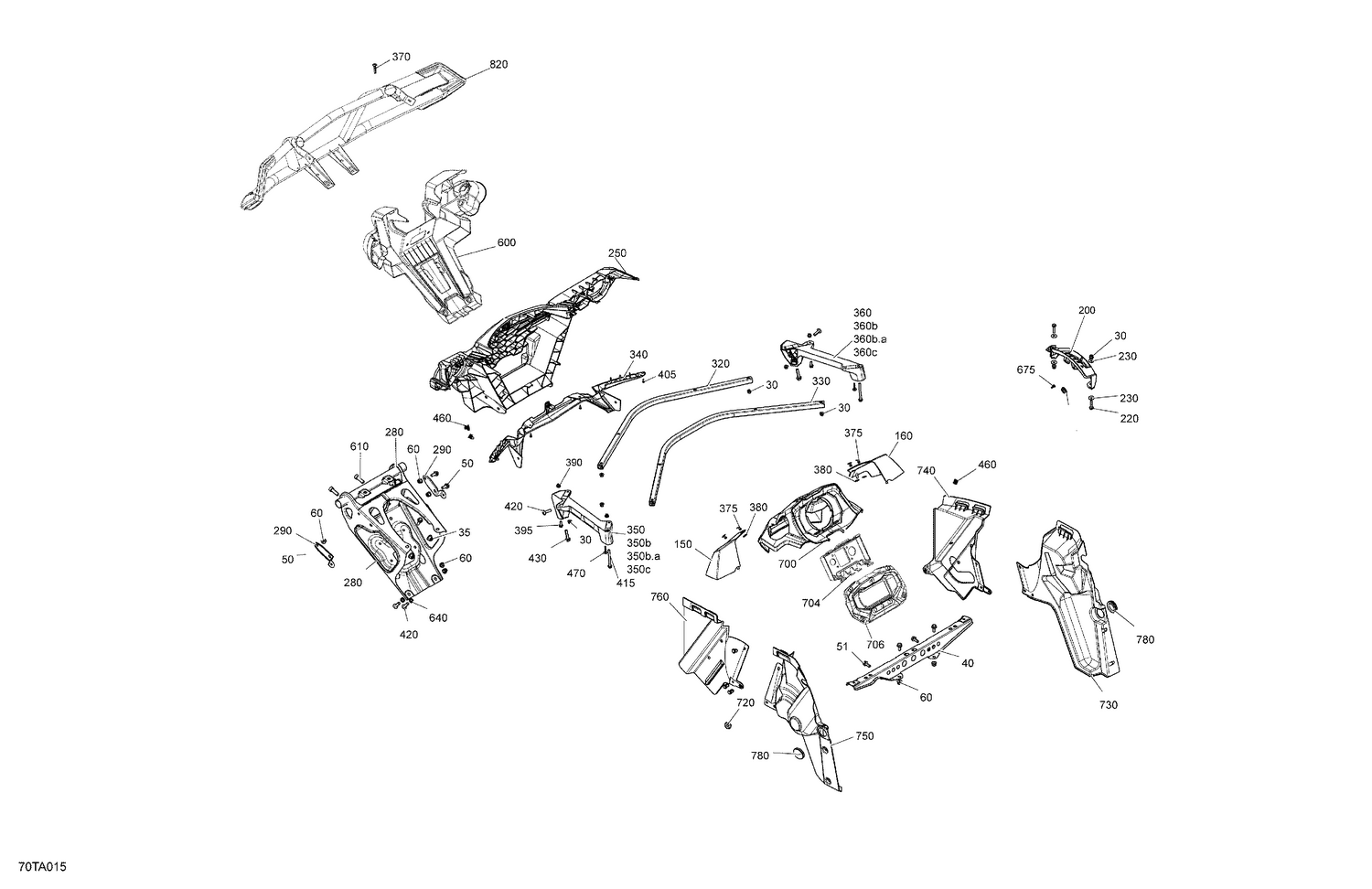

07- Body - Front Section
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 233261434 | Flange Elastic Nut M6 |
| 35 | 233201434 | Hex. Flange Elastic Nut M10 |
| 40 | 705006812 | Cargo Rack Center Support |
| 50 | 207682044 | Hex. Flange Screw M8 X 20 |
| 51 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 150 | 705006134 | LH Air Deflector |
| 160 | 705006135 | RH Air Deflector |
| 200 | 715007676 | Shifter Gate Ass'y |
| 220 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 230 | 224061201 | Flat Washer |
| 250 | 705012822 | Fascia |
| 280 | 705016893 | Front Bumper Support This part replaces 705009253. |
| 290 | 705004565 | Lower Fender Support |
| 320 | 705016640 | Sectional Bent Tube This part replaces 705016091. |
| 330 | 705016092 | Bent Sectional Tube |
| 340 | 705004523 | Lugage Rack Moulding |
| 350b | 269501943 | Elastic Nut Housing M8 |
| 350c | 232561600 | Hex. Elastic Stop Nut M6 |
| 360b | 269501943 | Elastic Nut Housing M8 |
| 360c | 232561600 | Hex. Elastic Stop Nut M6 |
| 370 | 250000646 | Black, Torx Screw M6 X 35 |
| 375 | 293150104 | Pop Rivet 3/16" |
| 380 | 517124300 | Washer |
| 390 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 395 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 405 | 241140060 | Screw K40 X 10 |
| 415 | 207567044 | Hex. Flange Screw M6x70, Scotch Grip |
| 420 | 250000886 | Torx Screw M8 X 30 |
| 430 | 207683544 | Hex. Flange Screw M8 X 35 |
| 460 | 517302785 | Edge Clip |
| 470 | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 600 | 705006300 | Front Guard Plate |
| 610 | 205003044 | Socket Screw M10 x 30 |
| 640 | 705004497 | Ring |
| 675 | 250000723 | Phillips Screw K40 X 16 |
| 700 | 705013984 | Gauge Support |
| 704 | 705015548 | Interior Gauge Support |
| 706 | 705015549 | Gauge Trim |
| 720 | 705003264 | Grommet |
| 730 | 705013925 | RH Wheel Arch Protector |
| 740 | 705011463 | RH Front Inner Fender |
| 750 | 705013924 | LH Wheel Arch Protector |
| 760 | 705017001 | LH Front Wheel Arch Protector This part replaces 705011465. |
| 780 | 293250242 | Rubber Cover |
