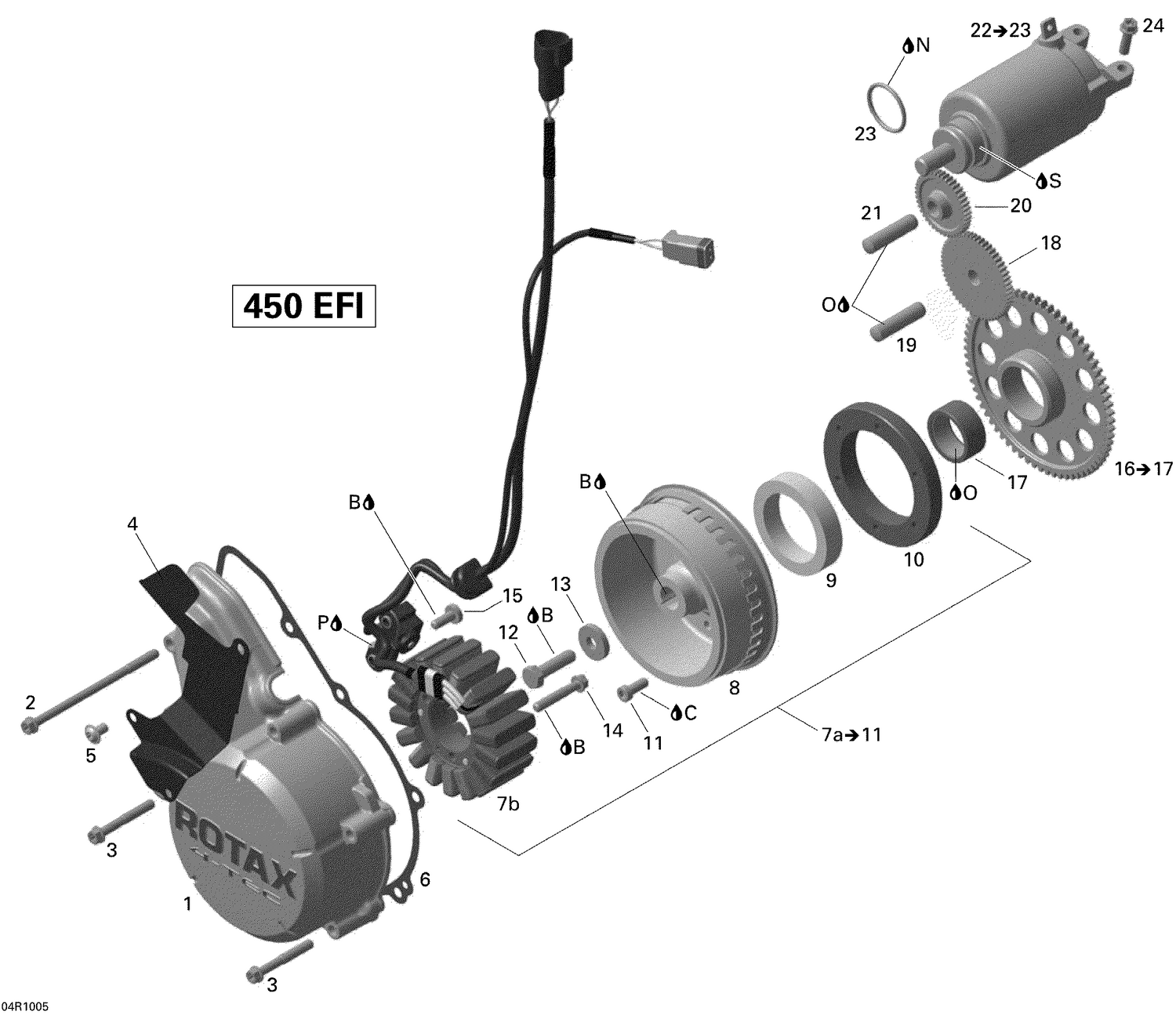

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| C |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| N |
293550030 |
Grease, Super Lube |
| O |
Not |
Available As Spare Part - Engine Oil |
| P |
293800081 |
Loctite 5910, 300 ml |
| 1 |
420611700 |
IGNITION COVER - Call your local BRP dealership |
| 2 |
420440612 |
Torx Flange Screw M6 X 105 |
| 3 |
420641198 |
Torx Flange Screw M6 X 45 |
| 4 |
420651020 |
Protection Shield |
| 5 |
420240607 |
FLANGED SCREW M10 X 10 - Call your local BRP dealership This part replaces 420240602. |
| 6 |
420430980 |
Gasket |
| 7b |
420296323 |
STATOR PLATE - Call your local BRP dealership |
| 8 |
Not |
Available As Spare Part - Flywheel |
| 9 |
420259070 |
Sprag Clutch |
| 10 |
420659860 |
SPRAG CLUTCH HOUSING - Call your local BRP dealership |
| 11 |
420640980 |
SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 12 |
420940485 |
SCREW M8 X 30 - Call your local BRP dealership |
| 13 |
420626460 |
WASHER 23 MM - Call your local BRP dealership |
| 14 |
420641258 |
Torx Flange Screw M6 X 35 |
| 15 |
420640324 |
Torx Screw M6 X 16 This part replaces 420640321. |
| 17 |
Not |
Available As Spare Part - Bushing Needle |
| 18 |
420685300 |
FRICTION CLUTCH - Call your local BRP dealership |
| 19 |
420229302 |
Location Pin 10 M6x50 This part replaces 420229301. |
| 20 |
420434790 |
INTERMEDIATE GEAR, 41 TEETH - Call your local BRP dealership |
| 21 |
420929935 |
INTERMEDIATE GEAR SHAFT - Call your local BRP dealership |
| 23 |
420250140 |
O-Ring |
| 24 |
420440207 |
Torx Flange Screw M6 X 20 This part replaces 420440202. |
