Parts Catalog

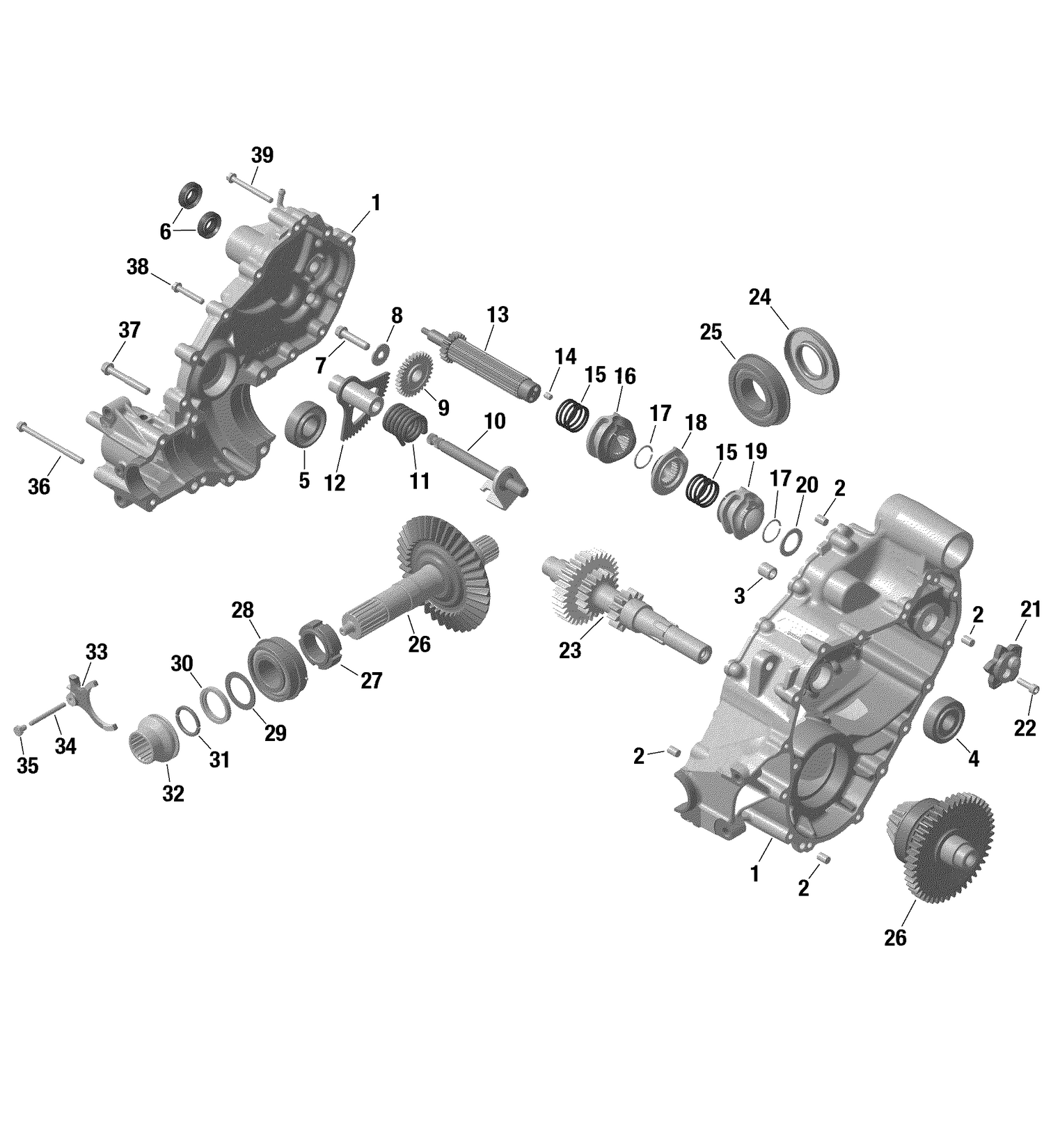

01- ROTAX - GearBox 1 - A

Parts (34)

Ref	Part Number	Description
1	XXX	Not Available As Spare Parts
2	420632010	Center Pin 8 X 12
3	XXX	Not Available As Spare Parts
4	420932816	Ball Bearing
5	420932433	Ball Bearing 6204
7	420440861	Torx Flange Screw M8 X 35
8	420227937	Plain Washer
10	XXX	Not Available As Spare Parts
11	XXX	Not Available As Spare Parts
12	XXX	Not Available As Spare Parts
14	XXX	Not Available As Spare Parts
15	XXX	Not Available As Spare Parts
16	XXX	Not Available As Spare Parts
17	XXX	Not Available As Spare Parts
18	XXX	Not Available As Spare Parts
19	XXX	Not Available As Spare Parts
20	XXX	Not Available As Spare Parts
21	XXX	Not Available As Spare Parts
22	XXX	Not Available As Spare Parts
23	420637707	Countershaft
25	XXX	Not Available As Spare Parts
26	XXX	Not Available As Spare Parts
27	XXX	Not Available As Spare Parts
28	XXX	Not Available As Spare Parts
29	XXX	Not Available As Spare Parts
30	XXX	Not Available As Spare Parts
31	XXX	Not Available As Spare Parts
32	420257674	Shifting Sleeve
33	420257606	Shifting Fork
34	420832650	Needle Pin
35	420841581	Hex Screw M6 X 8
36	420641228	Torx Flange Screw M6 X 85
37	420641213	Torx Flange Screw M8 X 55
38	420440274	Torx Flange Screw M6 X 35
