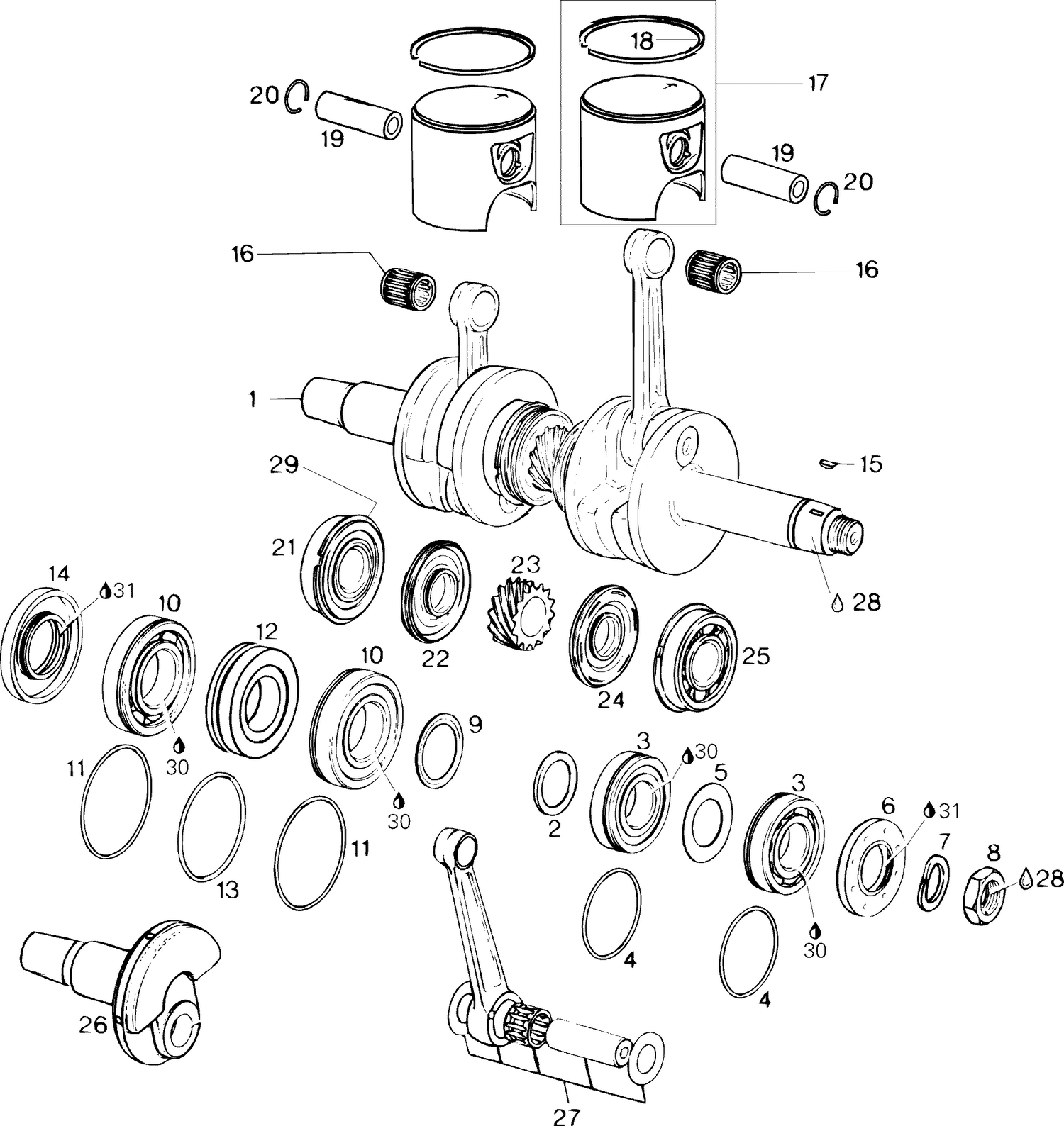

01- Crankshaft And Pistons
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420887352 | Crankshaft |
| 2 | 420827441 | SPACER RING - Call your local BRP dealership This part replaces 420827440. |
| 3 | 420832481 | Bearing_Ball This part replaces 420832209. |
| 4 | 420830355 | O-Ring |
| 5 | 420827715 | Stop Shim (30.4/1) |
| 6 | 420830749 | Oil Seal This part replaces 420830748. |
| 7 | 420945759 | Lock Washer, 22 mm |
| 8 | 420842239 | Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 9 | 420827760 | DISTANCE RING - Call your local BRP dealership |
| 10 | 420832584 | Bearing_Ball This part replaces 420832231. |
| 11 | 293300022 | O-Ring, 64 mm X 2 mm This part replaces 420250165. |
| 12 | 420830292 | Labyrinth Bushing |
| 13 | 420830370 | O-RING - Call your local BRP dealership |
| 14 | 420831952 | Oil Seal This part replaces 420831950. |
| 15 | 420246055 | Woodruff Key |
| 16 | 420932904 | Needle Bearing |
| 18 | 420815010 | Semi-Trapez Ring 76.0 mm |
| 18 | 420915821 | Semi-Trapez Ring 76.25 mm |
| 19 | 420916136 | PISTON PIN - Call your local BRP dealership |
| 20 | 420945735 | Piston Circlip |
| 21 | 420832481 | Bearing_Ball This part replaces 420832209. |
| 22 | 420831990 | Oil Seal |
| 23 | 420935746 | Central Gear (14 Teeth) |
| 24 | 420831355 | Oil Seal |
| 25 | 420832090 | Ball Bearing 6305 |
| 26 | 420818030 | Crankshaft Repair Kit (P.T.O. Side) |
| 27 | 420996626 | Crankshaft Rod Repair Kit |
| 28 | 293800060 | Loctite 243, 10 ml This part replaces 413703000. |
| 29 | 420845070 | Ring-Groove |
| 30 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
