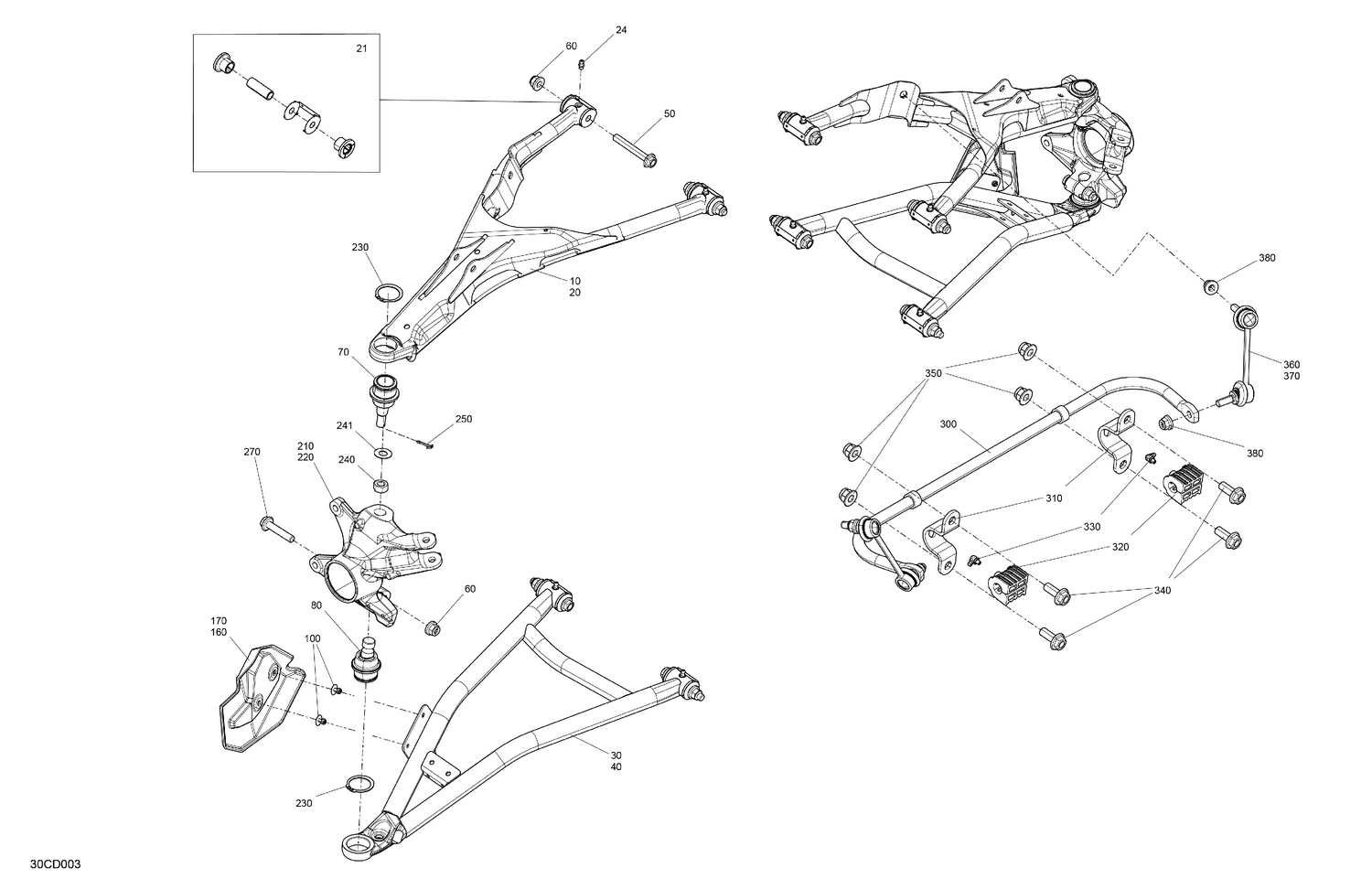

05- Suspension - Front Components
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715010633 | Legion Red, LH Upper Suspension Arm Ass'y With Balljoint This part replaces 706205661. |
| 20 | 715010636 | Legion Red, RH Upper Suspension Arm Ass'y With Balljoint This part replaces 706205662. |
| 21 | 703500875 | Suspension Arm Bushing Kit |
| 24 | 408200700 | Grease Fitting |
| 30 | 715010626 | Legion Red, LH Lower Suspension Arm Ass'y With Balljoint This part replaces 706205663. |
| 40 | 715010627 | Legion Red, RH Lower Suspension Arm Ass'y With Balljoint This part replaces 706205664. |
| 50 | 207607046 | Hex. Flange Screw M10 X 70 |
| 60 | 233201436 | Hex. Flange Elastic Nut M10 |
| 70 | 706203084 | Ball Joint |
| 80 | 706202045 | Ball Joint |
| 100 | 293150104 | Pop Rivet 3/16" |
| 160 | 706202135 | RH CV joint Guard |
| 170 | 706202134 | LH CV joint Guard |
| 210 | 706205517 | LH Knuckle |
| 220 | 706205047 | RH Knuckle This part replaces 706205518. |
| 230 | 293370035 | Circlip |
| 240 | 250100239 | Hex Nut M12 |
| 241 | 706200281 | Hardened Washer |
| 250 | 211400017 | Cotter Pin |
| 270 | 207605546 | Hex. Flange Screw M10 X 55 |
| 300 | 706204869 | Stabilizer Bar Ass'y |
| 310 | 706203437 | Clamp |
| 320 | 706205240 | Stabilizer Bar Bushing |
| 330 | 293550056 | Grease Fitting 90° |
| 340 | 250000951 | Hex. Flange Screw DIN.6921 |
| 350 | 250001195 | Elastic Flange Nut M12 |
| 360 | 706204803 | LH Link Stabilizer Bar |
| 370 | 706204804 | RH Link Stabilizer Bar |
