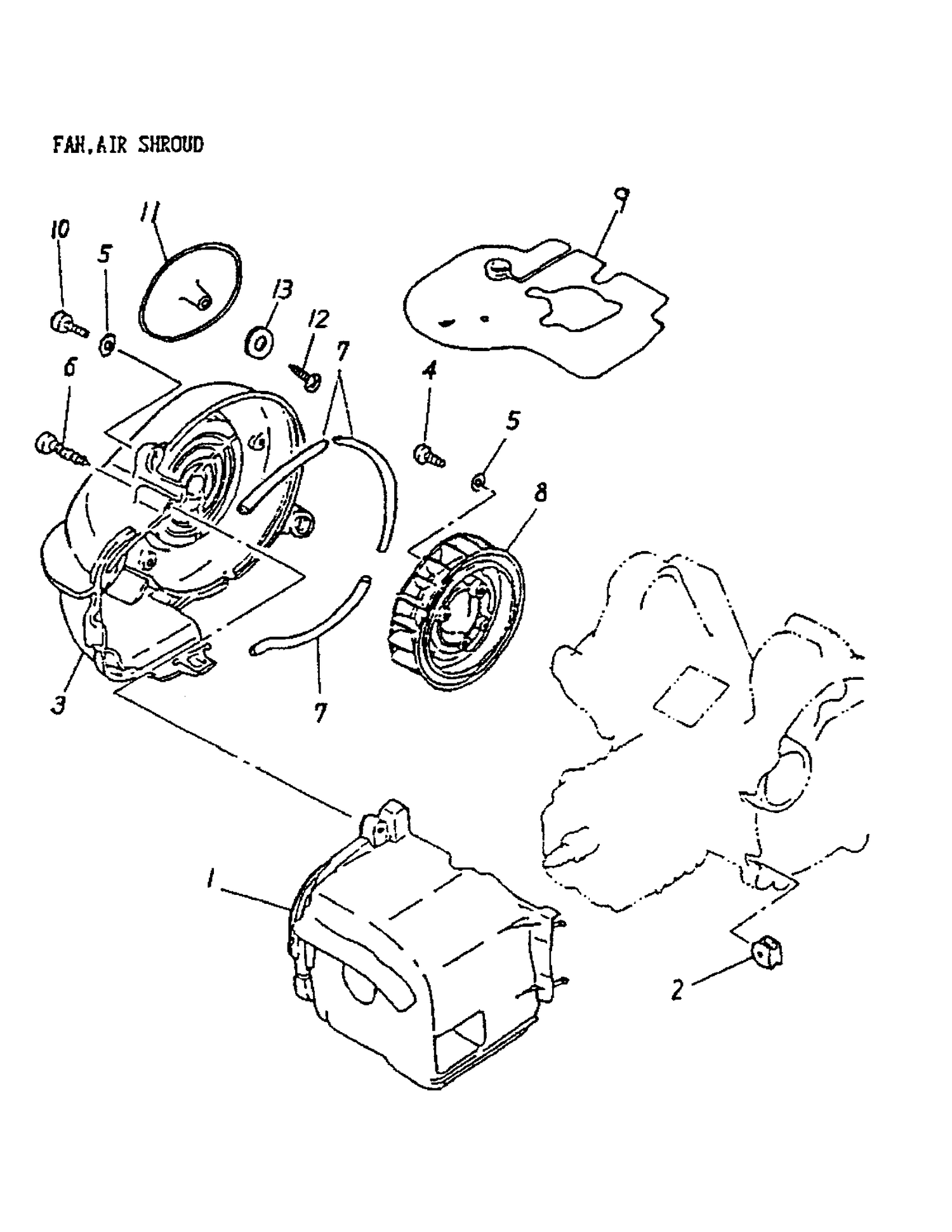

01- Fan, Air Shroud 170-03
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A19620117000 | Cylinder Air Shroud |
| 2 | A83552116000 | Grommet |
| 3 | A19610116000 | Generator Cover |
| 4 | A9100006015 | Hex. Socket Bolt M6 X 15 |
| 5 | A941010613010 | Plain Washer, 6 X 13 X 1 |
| 6 | A9390305040 | Tapping Screw Truss Head Phillips M5 X 4 |
| 7 | A17632116000 | DAMPER - Call your local BRP dealership |
| 8 | A19510116000 | Fan |
| 9 | A55122116000 | DEFLECTOR - Call your local BRP dealership |
| 10 | 205062044 | Socket Head Screw M6 X 20 This part replaces A9100006020. |
| 11 | A1961214500A | GENERATOR OUTTER COVER - Call your local BRP dealership |
| 12 | A9390305016 | Tapping Screw Truss Head Phillips M5 X 1 |
