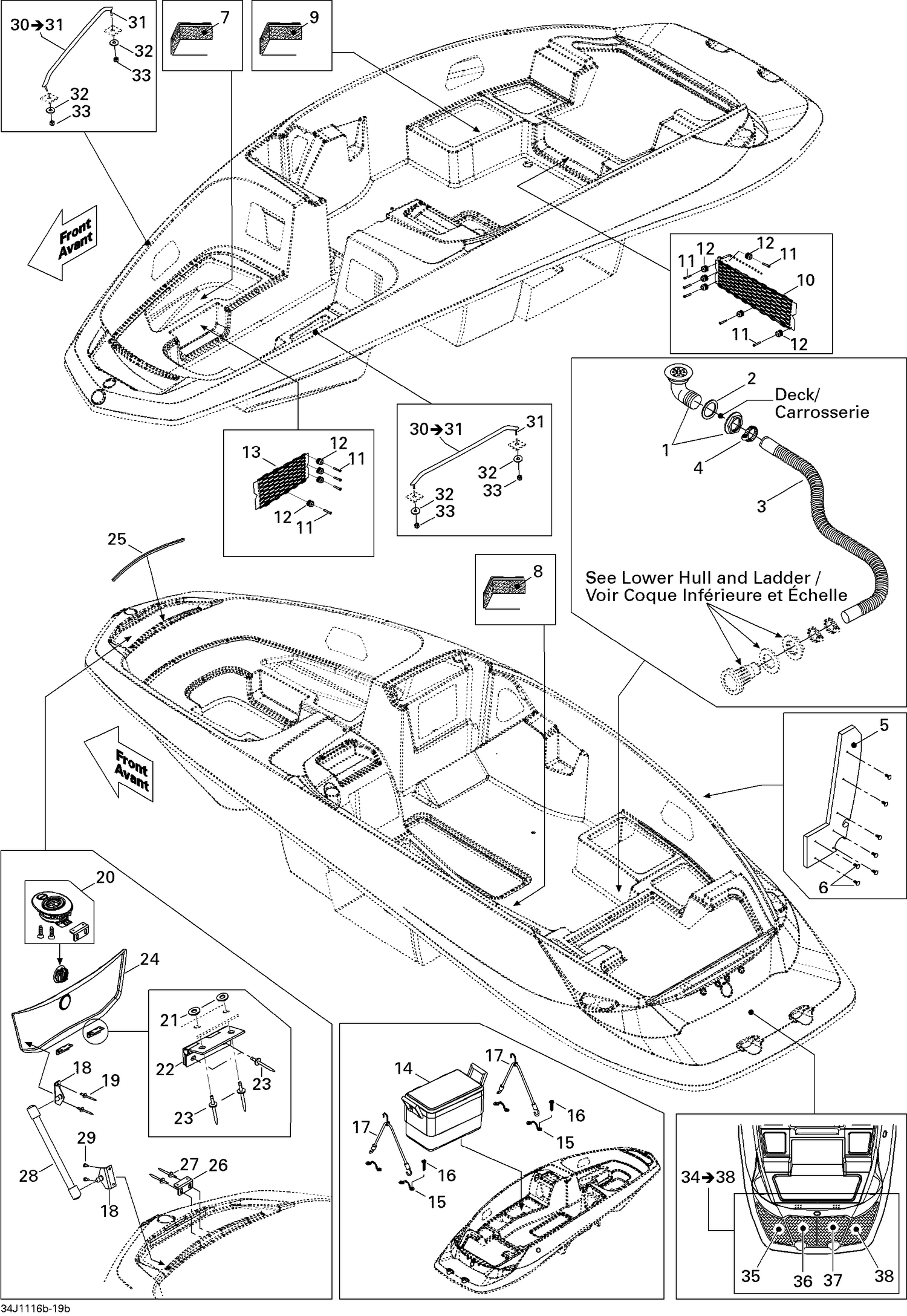

| Ref | Part Number | Description |
|---|
| 1 |
204073301 |
DRAIN FITTING - Call your local BRP dealership |
| 2 |
293250255 |
GASKET - Call your local BRP dealership |
| 3 |
204070560 |
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership |
| 4 |
293650074 |
Norma Clamp |
| 5 |
204072504 |
SOUNDWALL SEAL, PORT SIDE - Call your local BRP dealership |
| 6 |
293730014 |
Black Dart |
| 7 |
291003315 |
FRONT CARPET - Call your local BRP dealership |
| 8 |
291003316 |
CARPET-AFT/PORT - Call your local BRP dealership |
| 9 |
291003317 |
CARPET-AFT/STBD - Call your local BRP dealership |
| 10 |
204073217 |
STORAGE NET, REAR - Call your local BRP dealership |
| 11 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 12 |
204073221 |
Attachment Knob |
| 13 |
291003524 |
STORAGE NET - Call your local BRP dealership This part replaces 204073218. |
| 14 |
204072662 |
COOLER, 23 LITERS (25 QUARTS) - Call your local BRP dealership |
| 15 |
204071845 |
STRAP EYE - Call your local BRP dealership |
| 16 |
208442060 |
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership |
| 17 |
204070905 |
ICE CHEST STRAP - Call your local BRP dealership |
| 18 |
204073074 |
Shock Bracket |
| 19 |
204130050 |
POP RIVET 3/16 - Call your local BRP dealership |
| 20 |
204072838 |
Stainless Latch |
| 21 |
234051600 |
Flat Washer M5, Stainless |
| 22 |
204072601 |
HINGE - Call your local BRP dealership |
| 23 |
293150037 |
Avdel Rivet 3/16" |
| 24 |
291003160 |
Anchor Lid |
| 25 |
219704365 |
Was 293200017 Neoprene Seal |
| 26 |
204070060 |
KEEPER - Call your local BRP dealership |
| 27 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 28 |
204073017 |
GAS SHOCK - Call your local BRP dealership |
| 29 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 31 |
204100050 |
STUD 3/8?-16 X 2? - Call your local BRP dealership |
| 32 |
234002600 |
Flat Washer 10 mm, Stainless |
| 33 |
204100032 |
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership |
