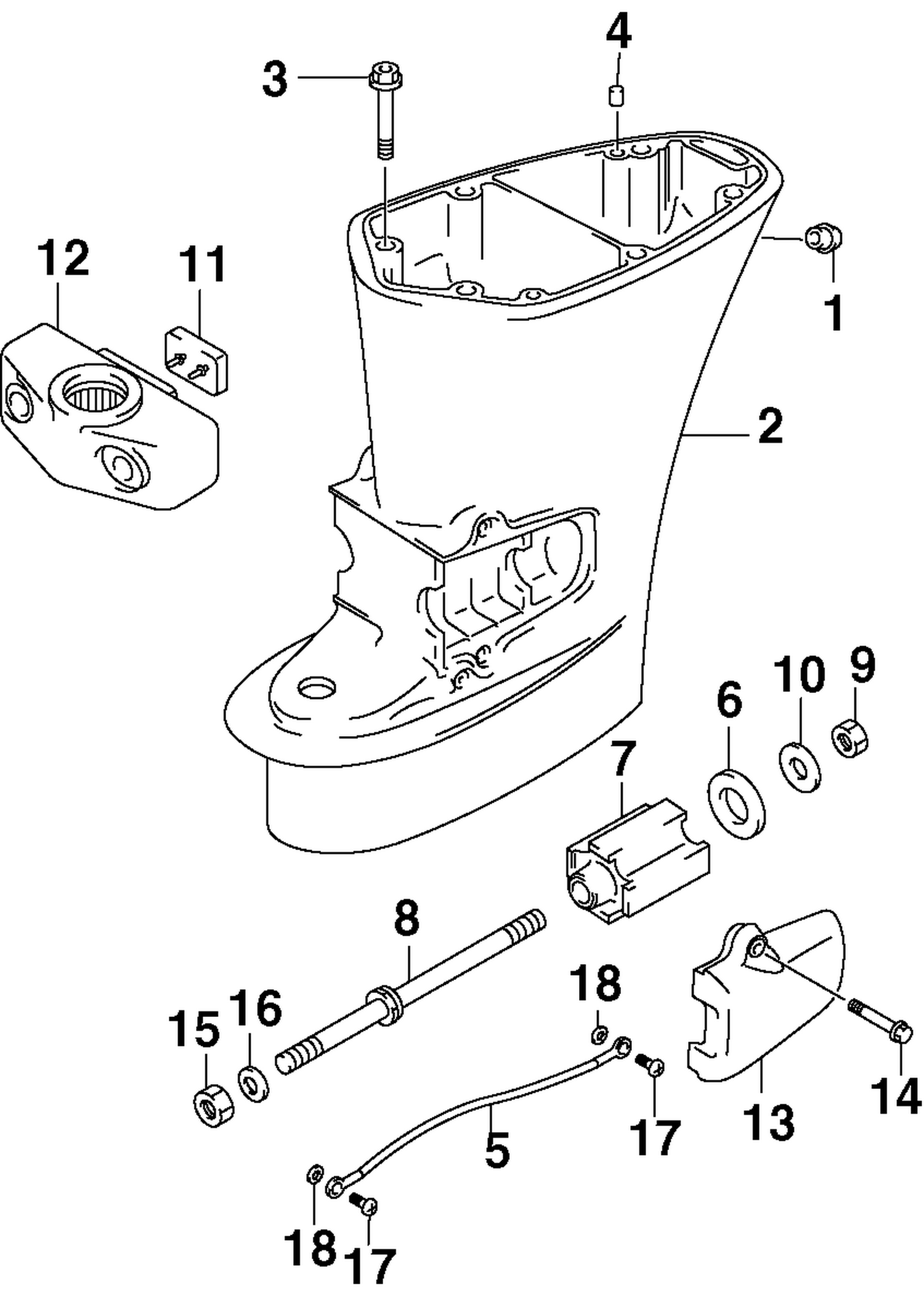

DRIVESHAFT HOUSING
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 5032796 | HOUSING, DRIVE SHAFT |
| 3 | *5035792 | BOLT, (10X45mm) This part replaces *5030399. |
| 4 | 5030511 | PIN |
| 5 | 5031667 | LEAD (MOUNT BRKT TO HSG) |
| 6 | 5030886 | DAMPER, Mount |
| 7 | 5031529 | MOUNT, LOWER |
| 8 | 5032676 | BOLT, Lower mount |
| 9 | 5030419 | NUT |
| 10 | 5030437 | WASHER |
| 11 | 5030893 | MOUNT, Lower thrust |
| 12 | 5032798 | BRACKET, LOWER MOUNT |
| 13 | 5032799 | COVER, LOWER MOUNT |
| 14 | 5031217 | BOLT |
| 15 | 5031221 | NUT |
| 17 | 5030407 | SCREW (5X8) |
