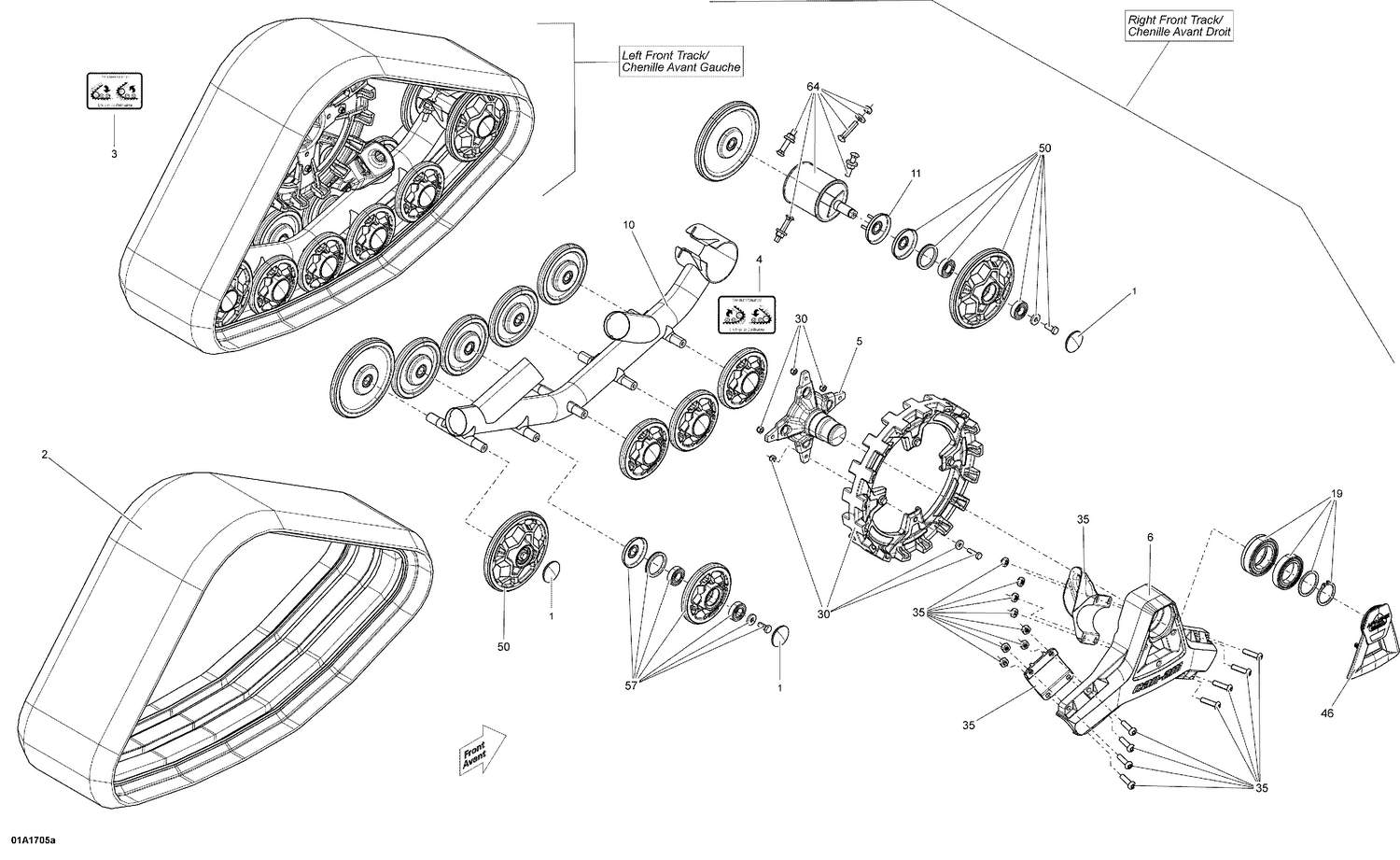

07- Track Kit Front
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 570063600 | Wheel Cap |
| 2 | 705402654 | Track_360 F This part replaces 705401208. |
| 3 | 704903853 | Decal, See Owner's Manual |
| 4 | 704903854 | DECAL, SEE OWNER'S MANUAL - Call your local BRP dealership |
| 5 | 705402653 | Main Axle - 360 This part replaces 705401210. |
| 6 | 705401212 | Aluminum Link |
| 10 | 705401463 | LH Front Frame |
| 10 | 705401464 | RH Front Frame |
| 11 | 705401469 | SEAL CAP - Call your local BRP dealership |
| 19 | 715001602 | Bearing Kit |
| 30 | 715001604 | Sprocket Kit |
| 35 | 715005241 | LH Front Clamp Kit This part replaces 715001603. |
| 35 | 715005242 | RH Front Clamp Kit This part replaces 715001608. |
| 46 | 715002044 | Cover Kit |
| 50a | 503190396 | Ball Bearing |
| 57a | 503190396 | Ball Bearing |
