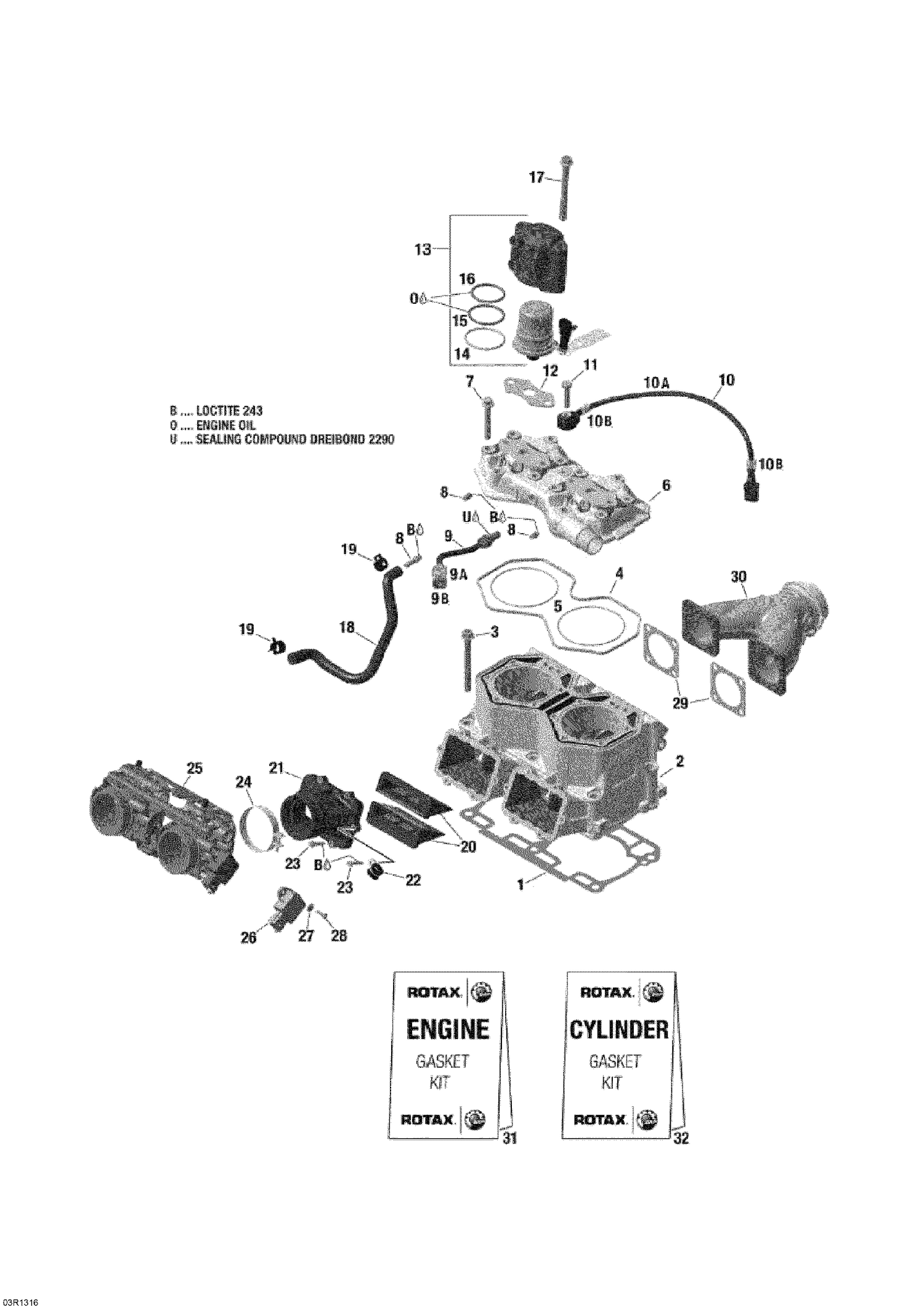

01- Cylinder And Injection System
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| O | Not | Available As Spare Part - Engine Oil |
| 2 | 420413041 | Cylinder |
| 6 | 420623304 | Head Cylinder Cover This part replaces 420623303. |
| 9A | 515175670 | Female Terminal Housing, 2 Circuits |
| 9B | 278000632 | Female Terminal |
| 10 | 270000484 | Noise Sensor |
| 10A | 420460010 | TUBE - Call your local BRP dealership |
| 10B | 420960890 | CLIP - Call your local BRP dealership |
| 14 | 415129497 | Crush Ring |
| 15 | 415129498 | O-Ring |
| 16 | 415129499 | O-Ring |
| 17 | 420441187 | Flanged Torx Screw M10 X 90 -SW 13/T50 |
| 18 | 420460867 | Molded Hose |
| 19 | 420853511 | Clamp |
| 20 | 420924798 | Reed Valve Ass'y This part replaces 420924794. |
| 21 | 420867333 | Intake Socket |
| 22 | 420851250 | Clamp |
| 24 | 420851815 | Clamp |
| 25 | 420889202 | Throttle Body This part replaces 420889199. |
| 26 | 420866120 | Position Sensor |
| 27 | 234041600 | Flat Washer 4 mm, Stainless |
| 28 | 208641660 | Phillips Screw M4 x 16 |
| 30 | 420673374 | Exhaust Manifold This part replaces 420673373. |
| 31 | 420893500 | Gasket Set, Engine |
| 32 | 420893505 | Gasket Set, Cylinder |
