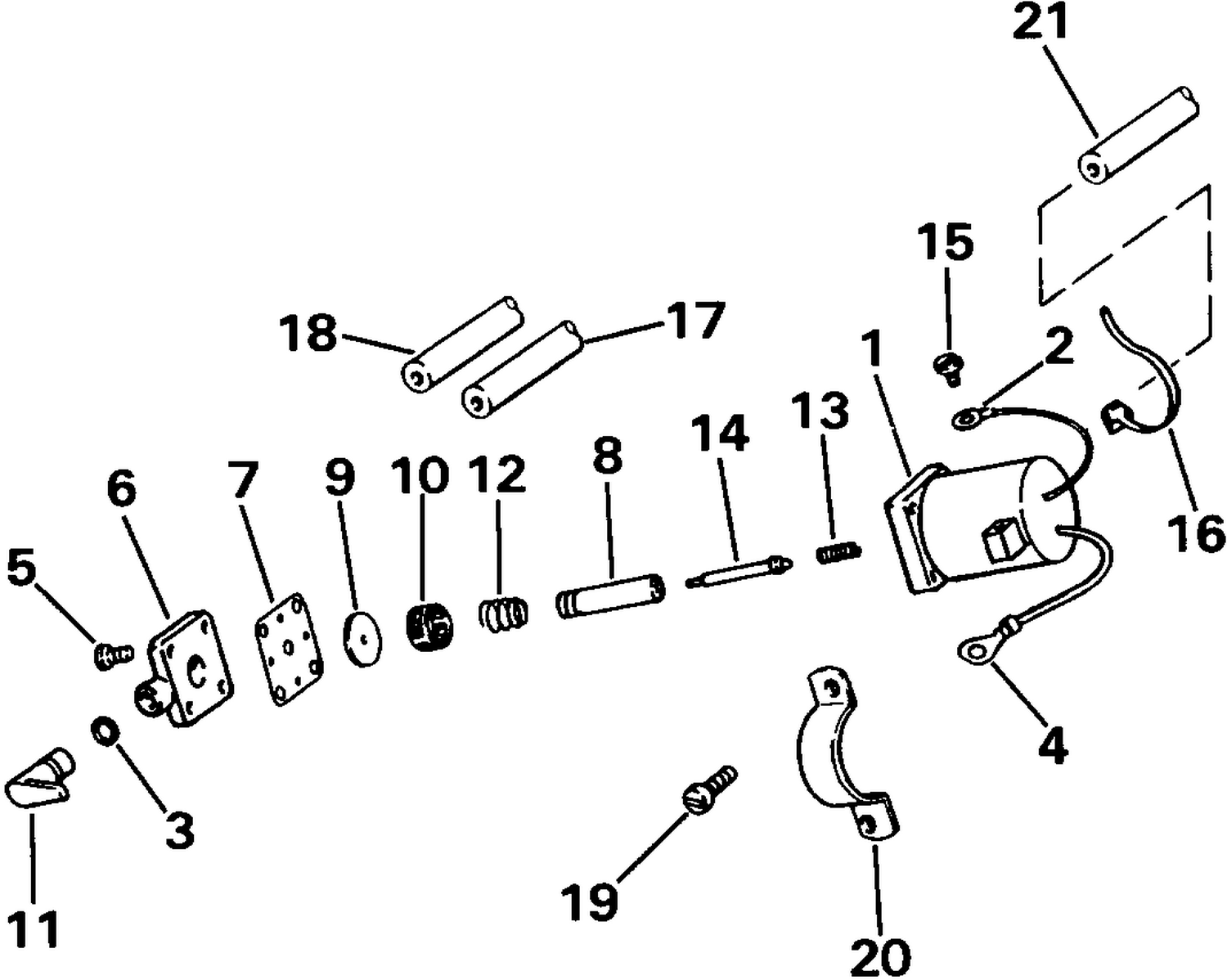

PRIMER SYSTEM - ELECTRIC START
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5007356 | Kit Ay This part replaces 0582865. |
| 6 | 0511807 | COVER&GASKET AY |
| 7 | 0333448 | GASKET This part replaces 0511808. |
| 9 | 0333448 | GASKET This part replaces 0511810. |
| 15 | 0329182 | VIS, borne |
| 17 | HOSE, | Primer solenoid to lower carb., 178mm (7") |
| 18 | HOSE, | Primer solenoid to upper carb., 267mm (10-1/2") |
| 19 | 0310539 | SCREW, Clamp choke solenoid |
| 20 | 0330118 | CLAMP |
