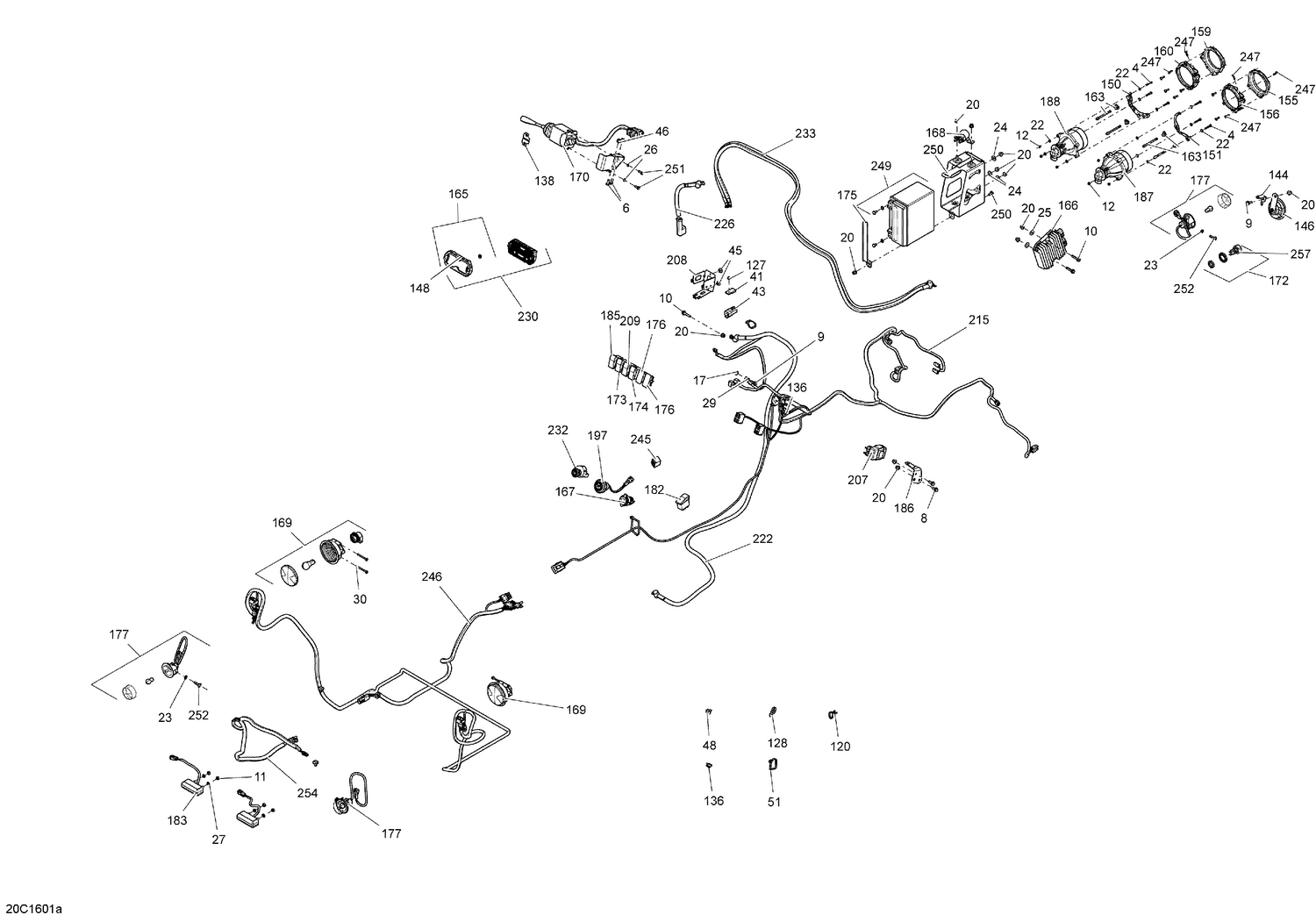

10- Electrical System - STD-DPS
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 207142544 | Hex. Screw M4 X 25 |
| 7 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 9 | 207662044 | Hex. Flange Screw M6 X 20 |
| 10 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 11 | 232061600 | Hex. Nut M6 |
| 12 | 232541414 | Elastic Stop Nut M4 |
| 15 | 232561434 | Elastic Stop Nut M6 |
| 17 | 233061414 | Hex. Flange Nut M6 |
| 20 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 22 | 234051410 | Flat Washer M5 |
| 25 | 234062670 | Stainless Steel Flat Washer |
| 27 | 234161601 | Lock Washer Helical M6 |
| 29 | 234461608 | External Serrated Lock Washer 6 mm |
| 30 | 241154540 | Hex. Screw K50 X 45 |
| 33 | 250000717 | Torx Head Screw M6 X 16 |
| 41 | 270000141 | Clip |
| 43 | 278002704 | Diagnostic Connector |
| 45 | 293150103 | Pop Rivet 3/16" |
| 48 | 293730040 | Mount Dart |
| 51 | 293750008 | Tie Wrap 368 mm |
| 120 | 293750009 | Tie-Rap 173 mm |
| 127 | 390402400 | Pop Rivet 3/16" |
| 128 | 414115200 | Tie-Rap 180 mm |
| 136 | 414227300 | Clip |
| 150 | 710001036 | LH High Light Support |
| 151 | 710001037 | LH Low Light Support |
| 153 | 710001081 | RH Low Front Housing |
| 154 | 710001082 | RH Low Rear Housing |
| 155 | 710001083 | LH Low Front Housing |
| 156 | 710001084 | LH Low Rear Housing |
| 157 | 710001085 | RH High Front Housing |
| 158 | 710001086 | RH High Rear Housing |
| 159 | 710001087 | LH High Front Housing |
| 160 | 710001088 | LH High Rear Housing |
| 161 | 710001094 | RH Low Light Support |
| 162 | 710001115 | RH High Light Support |
| 163 | 710001147 | Setting Screw |
| 166 | 710001191 | Voltage Regulator |
| 167 | 710001248 | DC Outlet |
| 169 | 710001645 | Tail Light Ass'y |
| 169a | 520000758 | Bulb |
| 173 | 710001737 | Interrupteur 4X4 |
| 175 | 710001916 | Battery Holder |
| 182 | 710002053 | Switch, Over ride |
| 187 | 710002524 | Low Beam Ass'y |
| 187a | 415129249 | Halogen Bulb |
| 188 | 710002525 | High Beam Ass'y |
| 188a | 415129249 | Halogen Bulb |
| 197 | 710002594 | Engine Start Button |
| 208 | 710003335 | Fuse Holder |
| 209 | 710003541 | Switch PPS Sport |
| 247 | 250000723 | Phillips Screw K40 X 16 |
| 249 | 410301203 | Battery YUASA YTX20L |
