| Ref | Part Number | Description |
|---|
| AMPLI |
ON |
M 278001008 Insulated Sheath 278001008 |
| BAT2 |
710000475 |
TERMINAL_FEMALE - Call your local BRP dealership |
| BCM1 |
710001589 |
Female Terminal |
| BCM1 |
710001591 |
Cover, 48 positions |
| BCM1 |
710001592 |
Plug |
| BCM1 |
710001727 |
Female Terminal |
| BCM1 |
710001728 |
Terminal |
| BCM1 |
710007617 |
Plug |
| BCM1 |
710007619 |
Seal Joint |
| BCM1 |
710007623 |
Femal Terminal |
| BCM1 |
710007625 |
Connector, Female 28 Cavities |
| BCM2 |
710001589 |
Female Terminal |
| BCM2 |
710001590 |
Female Terminal |
| BCM2 |
710001591 |
Cover, 48 positions |
| BCM2 |
710001592 |
Plug |
| BCM2 |
710001727 |
Female Terminal |
| BCM2 |
710001728 |
Terminal |
| BCM2 |
710007617 |
Plug |
| BCM2 |
710007619 |
Seal Joint |
| BCM2 |
710007623 |
Femal Terminal |
| BCM2 |
710007624 |
Connector, Molex Female 28 Cavities |
| BCM2 |
710007658 |
Femal Terminal |
| BLACK |
409010300 |
Female Terminal |
| BLUE |
409010300 |
Female Terminal |
| BN1 |
710000913 |
Terminal |
| BN2 |
710000913 |
Terminal |
| BN3 |
710008716 |
Terminal |
| BP1 |
278000992 |
Open Barrel |
| BP2 |
710007033 |
Cap Battery Cable |
| BP7 |
278001392 |
Open Barrel Terminal |
| BP8 |
515177996 |
Terminal |
| CL |
278002858 |
Female Housing 20 Circuits |
| CL |
278002860 |
Sealing Cap |
| CL |
515178018 |
Female Terminal |
| CL |
515178349 |
Female Terminal 22 AWG |
| D2 |
409012700 |
Diode |
| D4 |
409012700 |
Diode |
| D5 |
409012700 |
Diode |
| DC1 |
710005373 |
Housing |
| DC1 |
710005518 |
Terminal |
| DC3 |
515175231 |
Female Terminal |
| DC3 |
515175658 |
Female Housing, 2 Circuits |
| DESS |
710001163 |
Wire Seal |
| DESS |
710001164 |
Female Terminal |
| DESS |
710001222 |
Lock |
| DESS |
710007151 |
Female Delphi Connector 5 Cavities |
| DESS |
710007243 |
Lock |
| DLC |
710002705 |
Lock |
| DLC |
710002706 |
Female Housing 6 Circuits |
| DLC |
710005438 |
Female Terminal |
| DLC |
710005439 |
Female Terminal |
| DPS |
278002186 |
Wire Seal |
| DPS |
278002187 |
Female Terminal |
| DPS |
710001222 |
Lock |
| DPS |
710001873 |
Terminal This part replaces 710001765. |
| DPS |
710002075 |
Plug |
| DPS |
710003153 |
Seal |
| DPS |
710004989 |
Female Housing |
| DPS |
710005098 |
Lock |
| ECM1 |
515178596 |
Terminal |
| ECM1 |
515178597 |
Terminal |
| ECM1 |
515178598 |
Terminal |
| ECM1 |
515178599 |
Plug |
| ECM1 |
515178602 |
Cover |
| ECM1 |
515178603 |
Plate |
| ECM1 |
515178604 |
Plate |
| ECM1 |
515178618 |
Housing 56 Circuits |
| ECM1 |
515178666 |
Terminal |
| EVAP |
515177192 |
Female Housing, 2 Circuits |
| EVAP |
710001152 |
Lock |
| EVAP |
710001163 |
Wire Seal |
| EVAP |
710001164 |
Female Terminal |
| FRA |
515175231 |
Female Terminal |
| FRA |
515175658 |
Female Housing, 2 Circuits |
| FT |
710010265 |
Housing |
| FT |
710010266 |
Terminal |
| FT |
710010267 |
Terminal |
| FT |
710010268 |
Seal |
| FT |
710010270 |
Seal |
| FT |
710010348 |
Seal |
| GREEN |
409010300 |
Female Terminal |
| HIBM |
710002000 |
Housing |
| HIBM |
710003047 |
Terminal |
| HIBM |
710005491 |
Female Terminal |
| HIBM |
710006074 |
Label |
| HIC |
710001222 |
Lock |
| HIC |
710001225 |
Cap |
| HIC |
710001228 |
Terminal |
| HIC |
710001229 |
Terminal |
| HIC |
710001233 |
Seal |
| HIC |
710001332 |
Seal Wire |
| HIC |
710001930 |
Female Housing, 12 Circuits |
| HIC |
710006333 |
Lock |
| HIC |
FD |
F 710001232 Housing 710001232 |
| PF1 |
278000216 |
Wire Seal |
| PF1 |
278000218 |
Wire Seal |
| PF1 |
278001065 |
Wire Seal |
| PF1 |
278002578 |
Female Terminal |
| PF1 |
278003448 |
Fuse Base Ass'y |
| PF1 |
278003553 |
Fuse Cover |
| PF1 |
293300198 |
Seal |
| PF1 |
515177177 |
Female Terminal |
| PF1 |
710000048 |
Wire Seal |
| PF1 |
710000918 |
Female Terminal |
| PF1 |
LABEL |
STD 710009637 Decal 710009637 |
| PF2 |
278000218 |
Wire Seal |
| PF2 |
278001065 |
Wire Seal |
| PF2 |
278002578 |
Female Terminal |
| PF2 |
278002880 |
Seal Plug |
| PF2 |
293300198 |
Seal |
| PF2 |
710000048 |
Wire Seal |
| PF2 |
710000890 |
Female Terminal |
| PF2 |
710000918 |
Female Terminal |
| PF2 |
710001630 |
Terminal |
| PF2 |
710001631 |
Cap |
| PF2 |
710001636 |
Terminal |
| PF2 |
710002633 |
PLUG - Call your local BRP dealership |
| PF2 |
710003125 |
F Terminal |
| PF2 |
710003132 |
Seal Joint |
| PF2 |
710003134 |
Seal Joint |
| PF2 |
710004472 |
Fuse Holder Support |
| PF2 |
710005623 |
Fusebox Ass'y |
| PF2 |
710007491 |
Cover This part replaces 710004120. |
| PF2 |
710008508 |
Terminal |
| PF2 |
LABEL |
PWM 710010203 Decal 710010203 |
| PF3 |
278001325 |
Fuse Holder |
| PF3 |
710000113 |
Female Terminal |
| PF5 |
278001325 |
Fuse Holder |
| PF5 |
710000113 |
Female Terminal |
| PF8 |
278001325 |
Fuse Holder |
| PF8 |
710000113 |
Female Terminal |
| SB |
278001482 |
Seal |
| SB |
710001134 |
Female Terminal |
| SB |
710002043 |
Lock |
| SB |
710002177 |
Housing |
| SS |
515177192 |
Female Housing, 2 Circuits |
| SS |
710001152 |
Lock |
| SS |
710001153 |
Seal Wire |
| SS |
710001164 |
Female Terminal |
| STSW |
409012100 |
Female Terminal |
| STSW |
710000402 |
Wire Seal |
| SWW |
710002000 |
Housing |
| SWW |
710005491 |
Female Terminal |
| SWWRC |
278000223 |
Female Terminal |
| SWWRC |
278000273 |
Male Housing, 3 Circuits |
| SWWRC |
278001065 |
Wire Seal |
| XR3 |
278000770 |
Insulated Sheath |

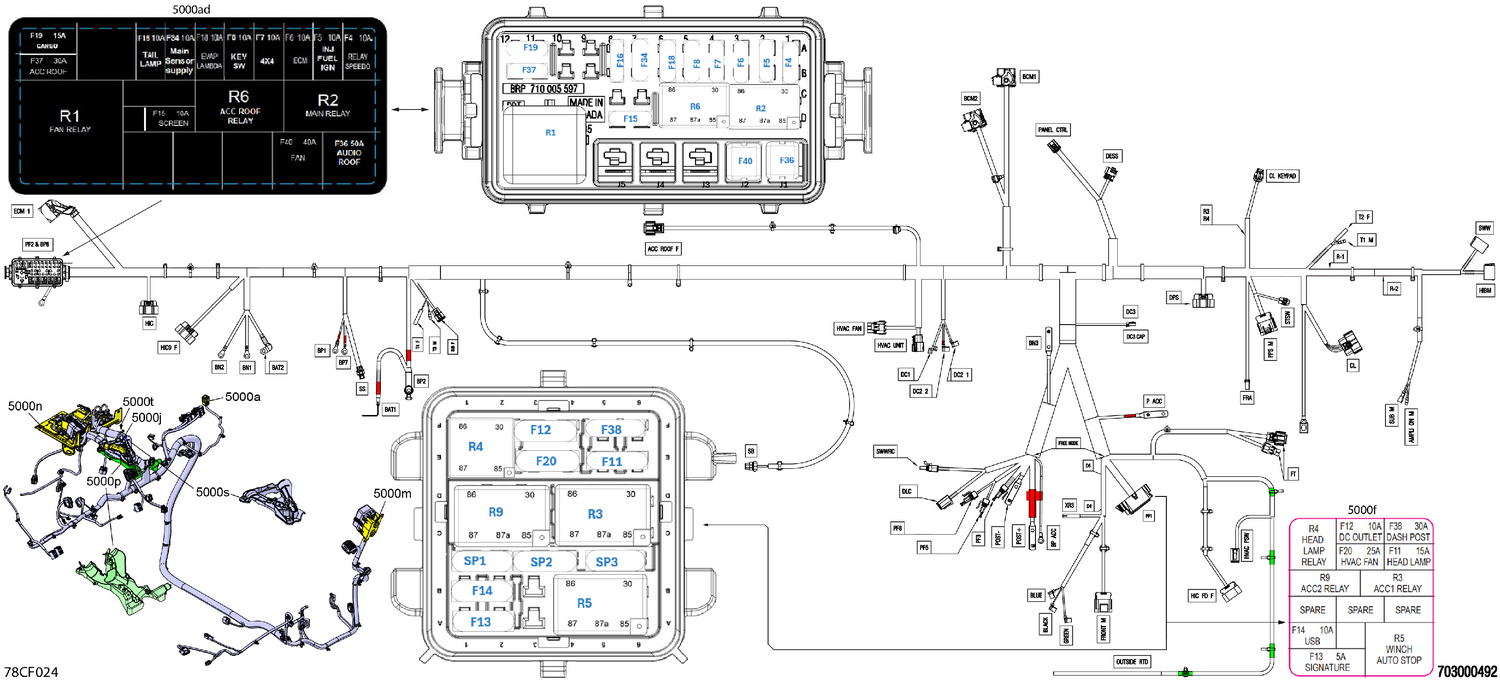

| 5000 |
710010175 |
Main Wiring Harness |
| 5000a |
278004473 |
Connector Female 4 Cavities |
| 5000ad |
710010203 |
Decal |
| 5000f |
710009637 |
Decal |
| 5000j |
710009658 |
Battery Cable Cap |
| 5000m |
710004472 |
Fuse Holder Support |
| 5000n |
710009443 |
Wiring Harness Support |
| 5000p |
710009301 |
Fuse Holder Support |
| 5000s |
710010884 |
Harness Support Post |
| 5000t |
250000959 |
Screw PT Type K-50 X 16 |
