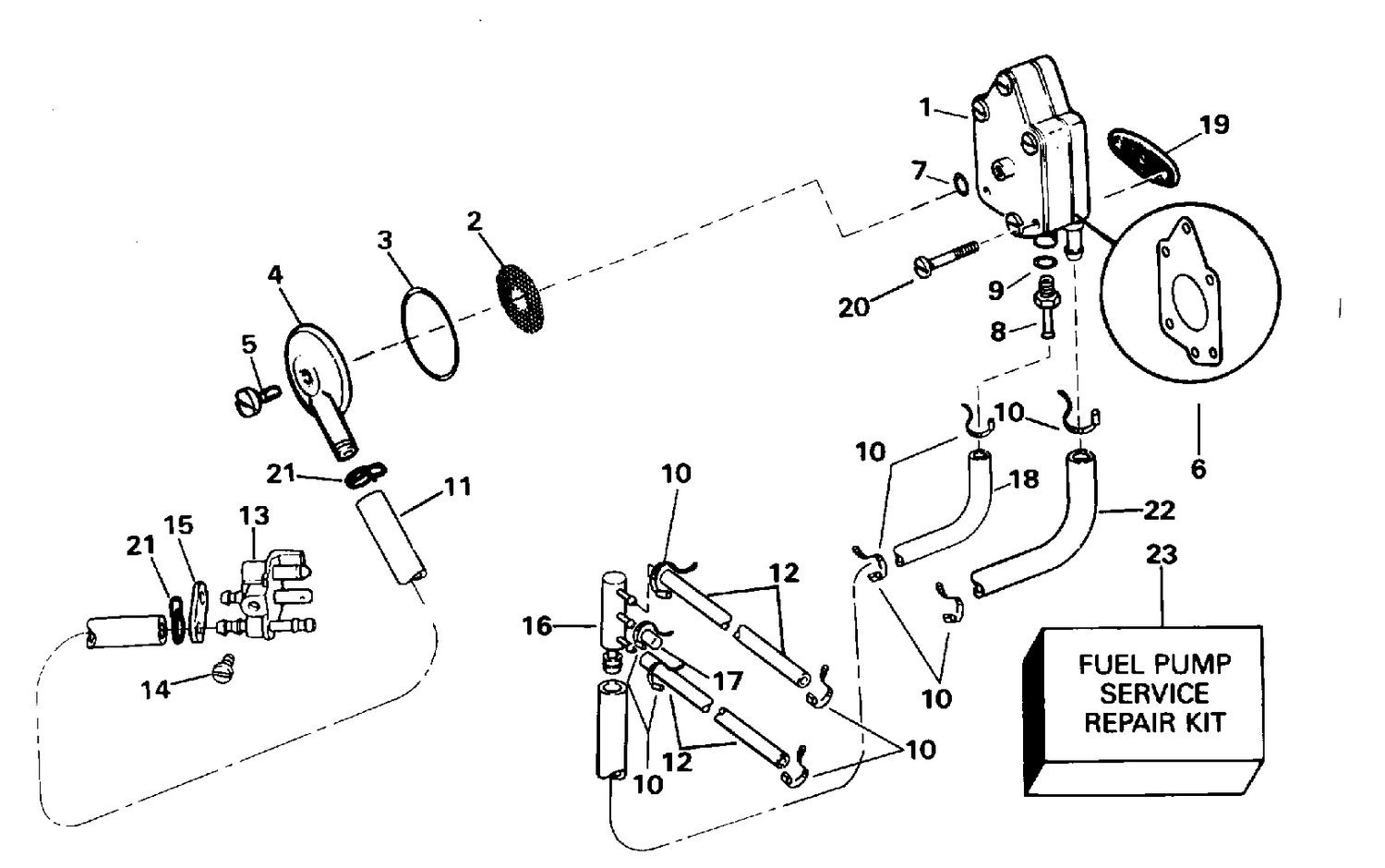

| Ref | Part Number | Description |
|---|
| 1 |
0438557 |
FUEL PUMP Assy This part replaces 0433388. |
| 10 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 |
Not |
Available As Spare Part - HOSE, Fuel connector to pump, 14 in. (356mm) |
| 12 |
0329695 |
HOSE |
| 14 |
0328731 |
VIS, câble de verrouillage |
| 16 |
5004610 |
FITTING, Fuel manifold This part replaces 0395540. |
| 17 |
0333264 |
CAP, Fuel manifold |
| 18 |
Not |
Available As Spare Part - HOSE, Pump to manifold, 14 in. (356mm) |
| 19 |
0303615 |
GASKET |
| 21 |
0339278 |
COLLIER DE SERRAGE |
| 22 |
Not |
Available As Spare Part - HOSE, Pulse, 16 in. (406mm) |
