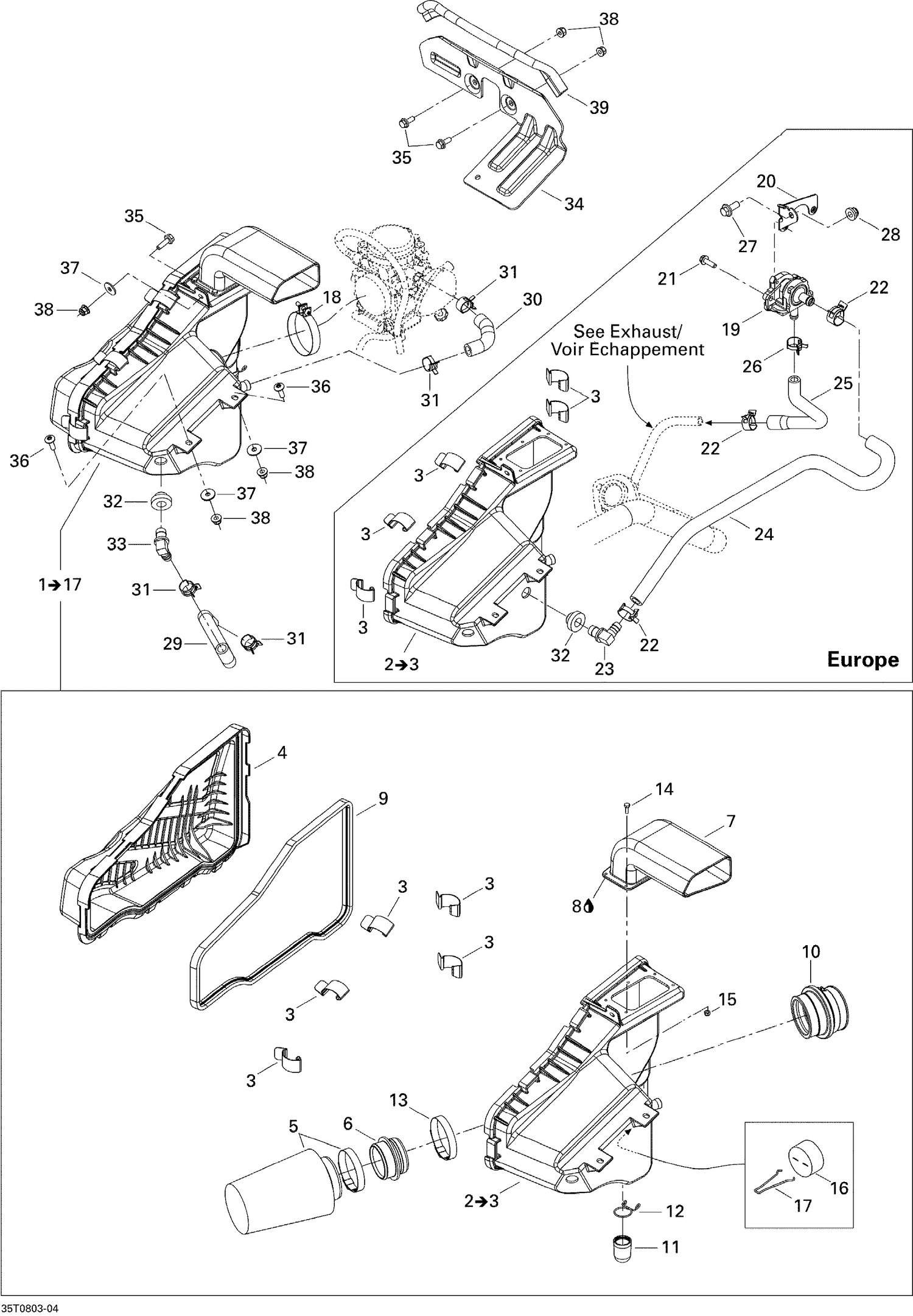

02- Air Intake
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 707800079 | Bracket Cover |
| 4 | 707800119 | Muffler Cover |
| 5 | 707800120 | Air Filter |
| 6 | 707800134 | RIGID ADAPTOR - Call your local BRP dealership |
| 7 | 707800121 | Front Intake Adaptor |
| 8 | 219704460 | Was 293800066 Sealant Loctite 5900, 300 ml |
| 9 | 293250133 | Oil Seal |
| 10 | 707800150 | INTAKE ADAPTOR - Call your local BRP dealership |
| 11 | 707800080 | Drain Tube |
| 12 | 707800081 | RETAINER CLIP - Call your local BRP dealership |
| 13 | 293650036 | Tridon Clamp |
| 14 | 207141244 | HEX. SCREW M4 X 12 - Call your local BRP dealership |
| 15 | 232541414 | Elastic Stop Nut M4 |
| 16 | 707800088 | FILTER FOAM - Call your local BRP dealership |
| 17 | 707800087 | FOAM BRACKET - Call your local BRP dealership |
| 18 | 293650155 | GEMI CLAMP - Call your local BRP dealership |
| 29 | 707800127 | Vent Hose |
| 30 | 707800128 | Carburetor Vent Hose |
| 31 | 293650110 | Norma Clamp |
| 32 | 707800347 | Grommet This part replaces 570273900. |
| 33 | 414523600 | Elbow Fitting |
| 34 | 707800227 | WATER DEFLECTOR - Call your local BRP dealership |
| 35 | 207662044 | Hex. Flange Screw M6 X 20 |
| 36 | 250000728 | Torx Screw M6 X 25 This part replaces 250000081. |
| 37 | 250200082 | Flat Washer This part replaces 391302000. |
| 38 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
