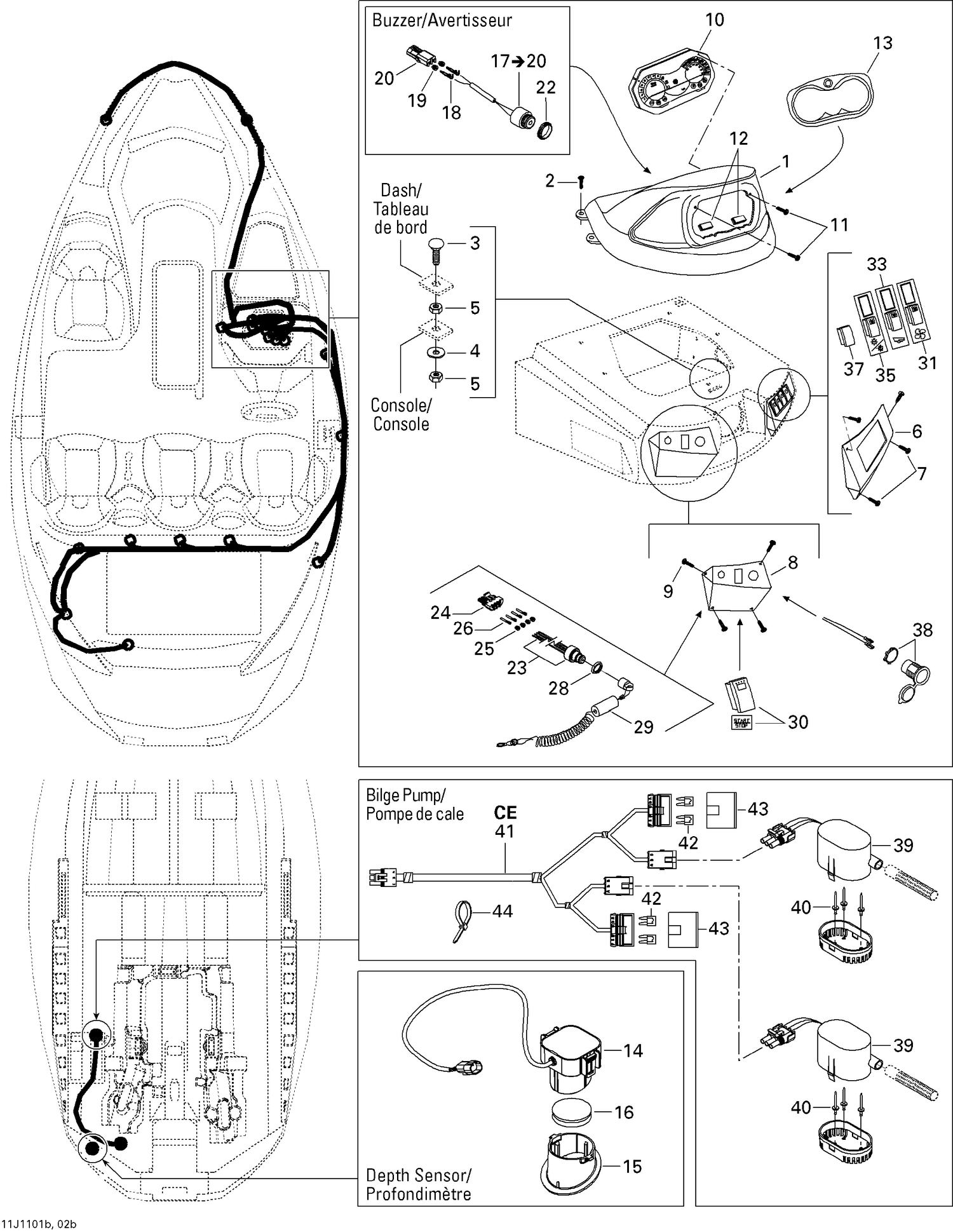

10- Electrical Accessories 2
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204471300 | DASH - Call your local BRP dealership |
| 2 | 204100058 | Phillips Tapping Screw |
| 3 | 204000130 | Elevator Bolt |
| 4 | 204100089 | FLAT WASHER 9/32? - Call your local BRP dealership |
| 5 | 211100026 | HEX. NUT 1/4 - Call your local BRP dealership |
| 6 | 204471302 | RH SWITCH PANEL - Call your local BRP dealership |
| 7 | 250000092 | Phillips Tapping Screw 3.5 X 19 |
| 8 | 204471301 | LH SWITCH PANEL - Call your local BRP dealership |
| 9 | 250000092 | Phillips Tapping Screw 3.5 X 19 |
| 10 | 204471378 | Cluster Gauge |
| 11 | 241141660 | Hex. Flange Screw K40 X 16 |
| 12 | 293830113 | TRIM - Call your local BRP dealership |
| 13 | 278002144 | Gauge Bezel, Chrome |
| 14 | 278001995 | DEPTH SENSOR - Call your local BRP dealership |
| 15 | 278001994 | Depth Sensor Base |
| 16 | 293550042 | Gel Pad |
| 17 | 204470913 | Buzzer Ass'y |
| 18 | 278000222 | Male Terminal |
| 19 | 278000218 | Wire Seal |
| 20 | 278000217 | Female Housing, 2 Circuits |
| 22 | 278000707 | Buzzer Nut |
| 23 | 278002351 | Safety Switch |
| 24 | 278000395 | Male Housing, 4 Circuits |
| 25 | 278000218 | Wire Seal |
| 26 | 278000223 | Female Terminal |
| 28 | 278002963 | Safety Nut (DESS Switch) This part replaces 278000508. |
| 29 | 204471206 | Safety Lanyard |
| 30 | 204471178 | START/STOP SWITCH - Call your local BRP dealership |
| 31 | 204470011 | VENTILATION SWITCH ASS'Y - Call your local BRP dealership |
| 33 | 204470099 | BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership |
| 35 | 204470100 | LIGHT SWITCH ASS'Y - Call your local BRP dealership |
| 37 | 204470596 | SWITCH PLUG - Call your local BRP dealership |
| 38 | 710001248 | DC Outlet |
