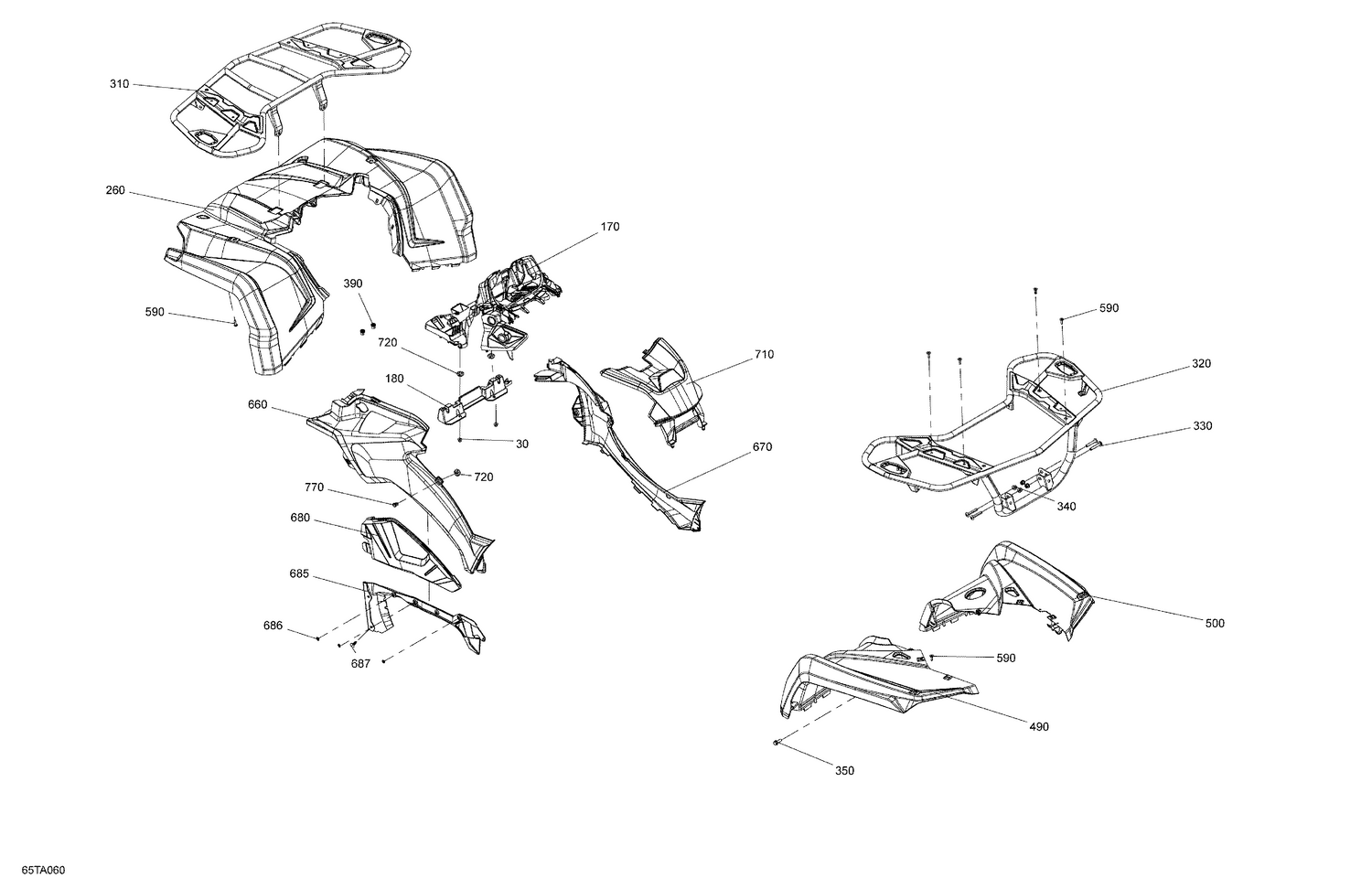

07- Body - Fender Kit - DPS
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 233261434 | Flange Elastic Nut M6 |
| 170 | 705013986 | Dash Support Kit |
| 180 | 705010406 | Console Support Insert |
| 260 | 705012731 | Jaune 2000, Aile Avant |
| 310 | 705006887 | Black, Front Luggage Rack |
| 320 | 705017598 | Deep Black, Rear Luggage Rack This part replaces 705005304. |
| 330 | 250000761 | Torx Truss Screw M8 X 50 |
| 340 | 233281464 | Elastic Flange Nut M8 |
| 350 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 390 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 490 | 705014815 | Jaune 2000, Aile Arrière GA |
| 500 | 715002718 | Jaune 2000, Aile Arrière DR |
| 590 | 250000722 | Torx Screw M6 X 20 |
| 660 | 705016111 | Granite Grey, LH Central Body Panel |
| 670 | 705016114 | Granite Grey, RH Central Body Panel |
| 680 | 715007294 | Deflector Body Panel Kit |
| 685 | 705014061 | Deflector Body Panel |
| 686 | 732610072 | Push Nut |
| 687 | 293730006 | Black, Dart |
| 710 | 705006690 | Console Cap |
| 720 | 705003264 | Grommet |
