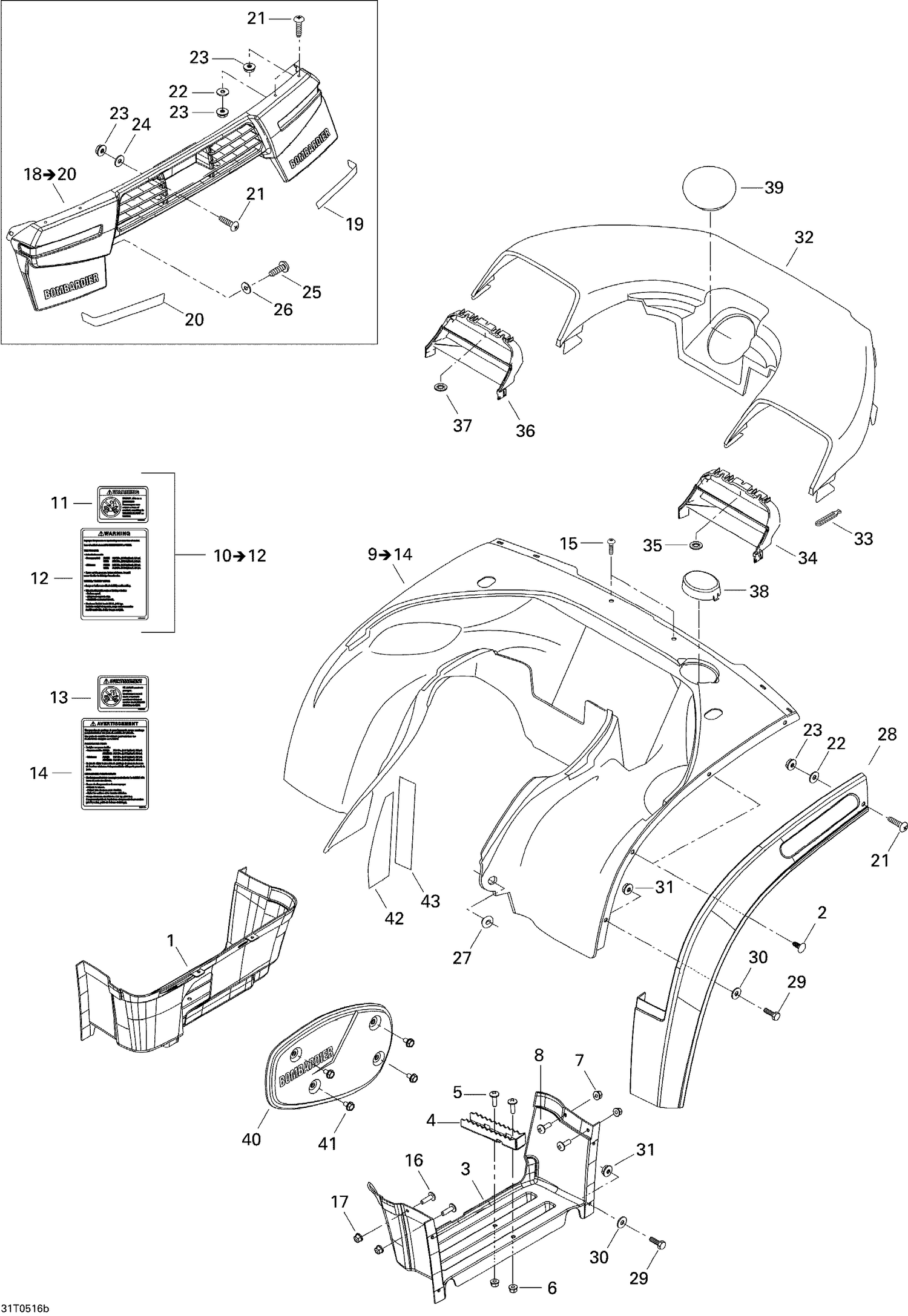

| Ref | Part Number | Description |
|---|
| 1 |
705000535 |
RH Footboard, Black |
| 2 |
293730011 |
Black, Dart |
| 3 |
705000536 |
LH Footboard, Black |
| 4 |
705001083 |
Footrest, Black |
| 5 |
207662554 |
Hex. Flange Screw M6 X 25 This part replaces 207662584. |
| 6 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 7 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 8 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 15 |
732600009 |
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership |
| 16 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 19 |
704900085 |
RH Rear Reflector |
| 20 |
704900086 |
LH Rear Reflector |
| 21 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 22 |
224060201 |
Flat Washer |
| 23 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 24 |
224060201 |
Flat Washer |
| 25 |
732600009 |
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership |
| 26 |
224061121 |
Flat Washer |
| 27 |
705005156 |
Oval Washer |
| 28 |
705001574 |
RH Rear Mudguard |
| 28 |
705001575 |
LH Rear Mudguard |
| 29 |
207162044 |
Hex. Screw M6 X 20 |
| 30 |
224060201 |
Flat Washer |
| 31 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 33 |
570023800 |
Windshield Latch |
| 34 |
705000180 |
LH Grill, Black |
| 35 |
250100000 |
PUSH NUT - Call your local BRP dealership |
| 36 |
705000181 |
RH Grill, Black |
| 37 |
250100000 |
PUSH NUT - Call your local BRP dealership |
| 38 |
705000132 |
COVER, BLACK - Call your local BRP dealership |
| 39 |
705000207 |
CAP - Call your local BRP dealership |
| 41 |
210261050 |
Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 42 |
705000491 |
Reflective Sheet |
