Home / BRP / JOHNSON / 1975 / 9.90 / 10E75C 1975 / CARBURETOR & MANIFOLD

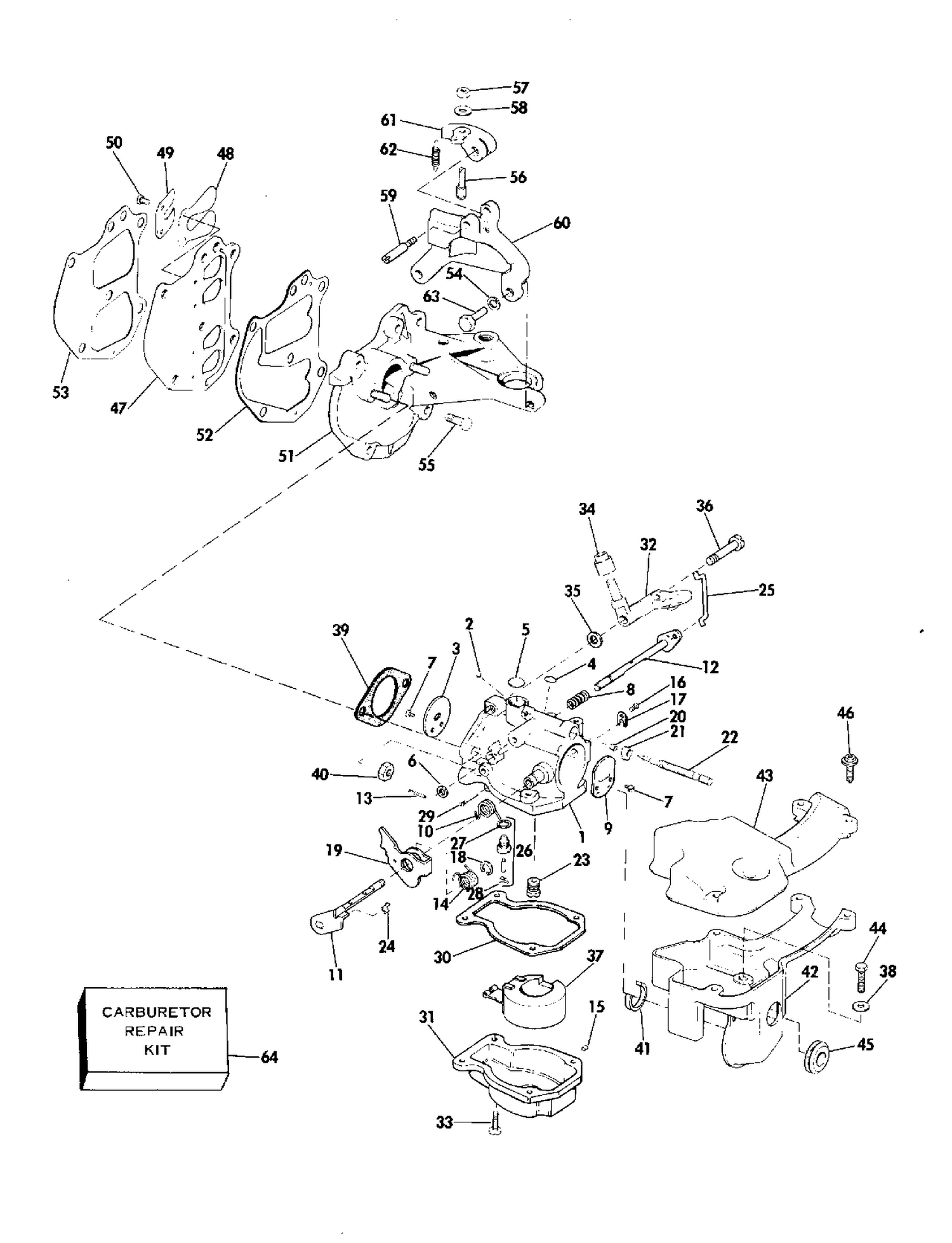

CARBURETOR & MANIFOLD

CARBURETOR & MANIFOLD

Parts (41)

RefPart NumberDescription
3 0320435 VALVE, Throttle
9 0320267 VALVE, Choke
11 0386168 CHOKE SHAFT AND LEVER ASSEMBLY
12 0386917 THROTTLE SHAFT AND LEVER ASSEMBLY
14 0321734 SPRING Choke override This part replaces 0319022.
16 0307191 SCREW, Choke shaft retaining clip
20 0314166 BEARING, Needle valve
21 0315232 RETAINER , Needle valve stbd
22 0386152 NEDDLE, Slow speed
23 0319016 ORIFICE PLUG
24 0318536 SLEEVE
25 0330192 LINK, Cam follower This part replaces 0312830.
28 0336842 CLIP, SPRING This part replaces 0603145.
30 0338878 GASKET This part replaces 0319011.
31 0330881 FLOAT CHAMBER This part replaces 0319010.
32 0320492 CAM FOLLOWER
33 0319008 GROMMET, Cable, lower motor cover
34 0318953 ROLLER, Cam follower
39 0318932 JOINT
40 0328742 NUT This part replaces 0306338.
41 0319287 SEAL, Air silencer
42 0322120 BASE, Air silencer This part replaces 0319289.
43 0330581 COVER, Air silencer This part replaces 0319290.
44 0314496 SCREW, Air silencer
45 0320521 GROMMET
50 0303761 SCREW
51 0390460 MANIFOLD, Intake This part replaces 0386109.
52 0325260 GASKET, Leaf plate This part replaces 0318919.
53 0318924 GASKET, Leaf plate to c'case
55 0306409 VIS, collecteur vers carter-moteur
55 0306418 VIS, ancrage
56 0320486 CAM FOLLOWER, Starter interlock
58 0328737 RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015.
59 0319540 SHOUDLER SCREW, Starter interlock pawl to bra cket
60 0320487 BRACKET, Starter interlock
61 0320488 PAWL, Starter interlock
62 0320490 SPRING, Pawl to cam follower
63 0300646 VIS, ancrage
0320434 0320434 CAM, Throttle control
0386987 0386987 CARBURETOR ASSEMBLY
0387000 0390050 LEAF PLATE ASSEMBLY This part replaces 0387000.
