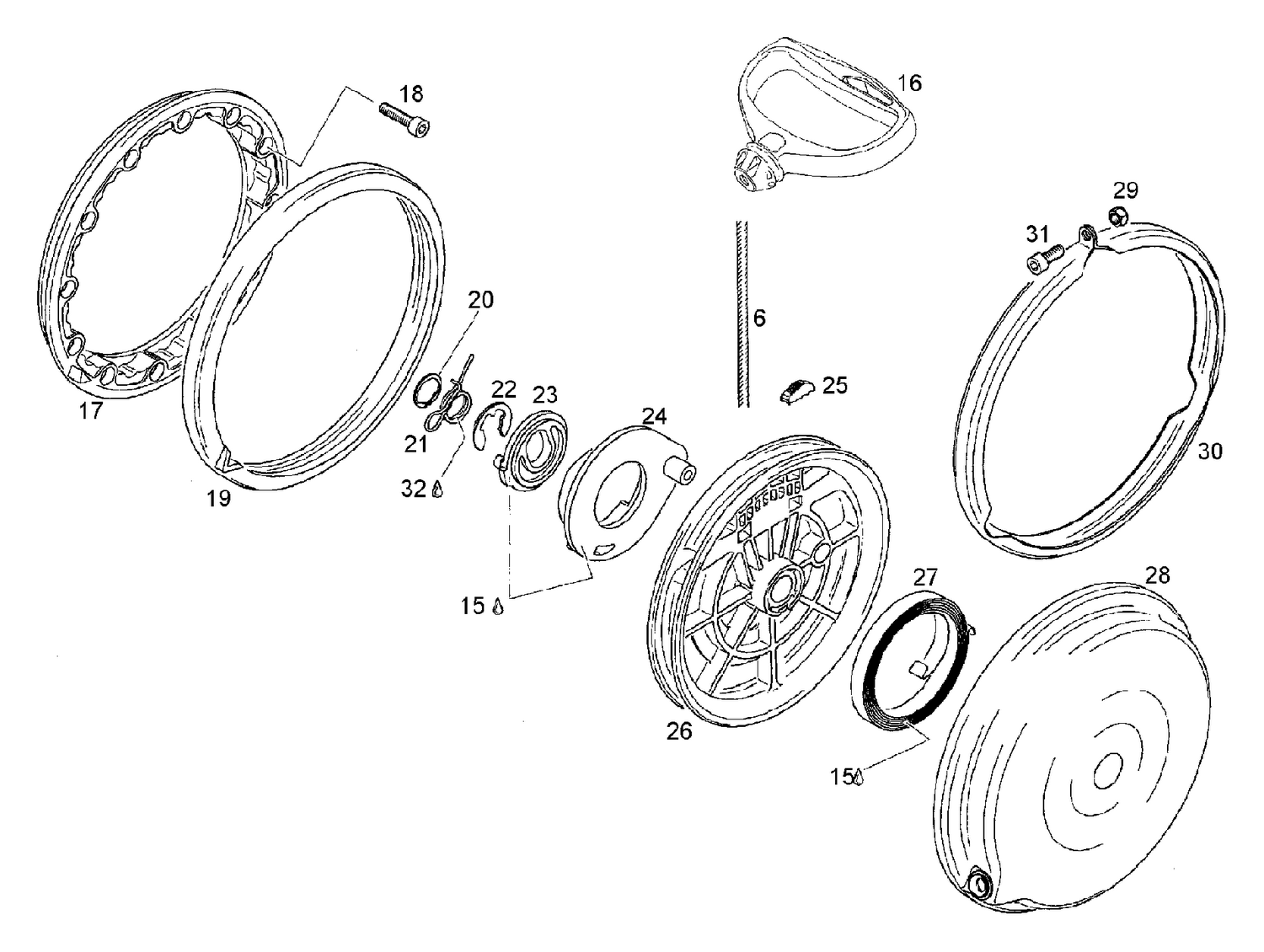

| Ref | Part Number | Description |
|---|
| 6 |
412500100 |
Starter rope 30m |
| 6 |
412500200 |
Starter Rope This part replaces 420852491. |
| 15 |
420897061 |
Silicon compound |
| 16 |
572084400 |
Handle |
| 17 |
420810860 |
Connecting flanged |
| 18 |
205062544 |
Allen Screw M6 x 25 This part replaces 420840861. |
| 19 |
420860950 |
DAMPER RING - Call your local BRP dealership |
| 20 |
420945770 |
LOCK RING - Call your local BRP dealership |
| 21 |
420938986 |
Locking spring |
| 22 |
420845300 |
CIRCLIP - Call your local BRP dealership |
| 23 |
420852301 |
PAWL LOCK - Call your local BRP dealership |
| 24 |
420852296 |
Pawl |
| 25 |
420852070 |
Key clamp |
| 26 |
420852284 |
ROPE SHEAVE - Call your local BRP dealership |
| 27 |
420939115 |
Rewind Spring Ass'y |
| 28 |
420887448 |
Demarreur *Rewind Starter This part replaces 420810875. |
| 29 |
232561434 |
Elastic Stop Nut M6 This part replaces 420842040. |
| 30 |
420851330 |
Clamp |
| 31 |
420241237 |
Socket Head Screw M6 X 16 This part replaces 420241236. |
