Home / BRP / 2026 / 008 - XTerrain Series / Europe - XTERRAIN 600R E-TEC - Limited / Europe - XTERRAIN - 600R E-TEC - Limited - SVTA - Deep Black - 146X16X2.0P Track - 2026 000SVTA00 / 07- Body - Seat

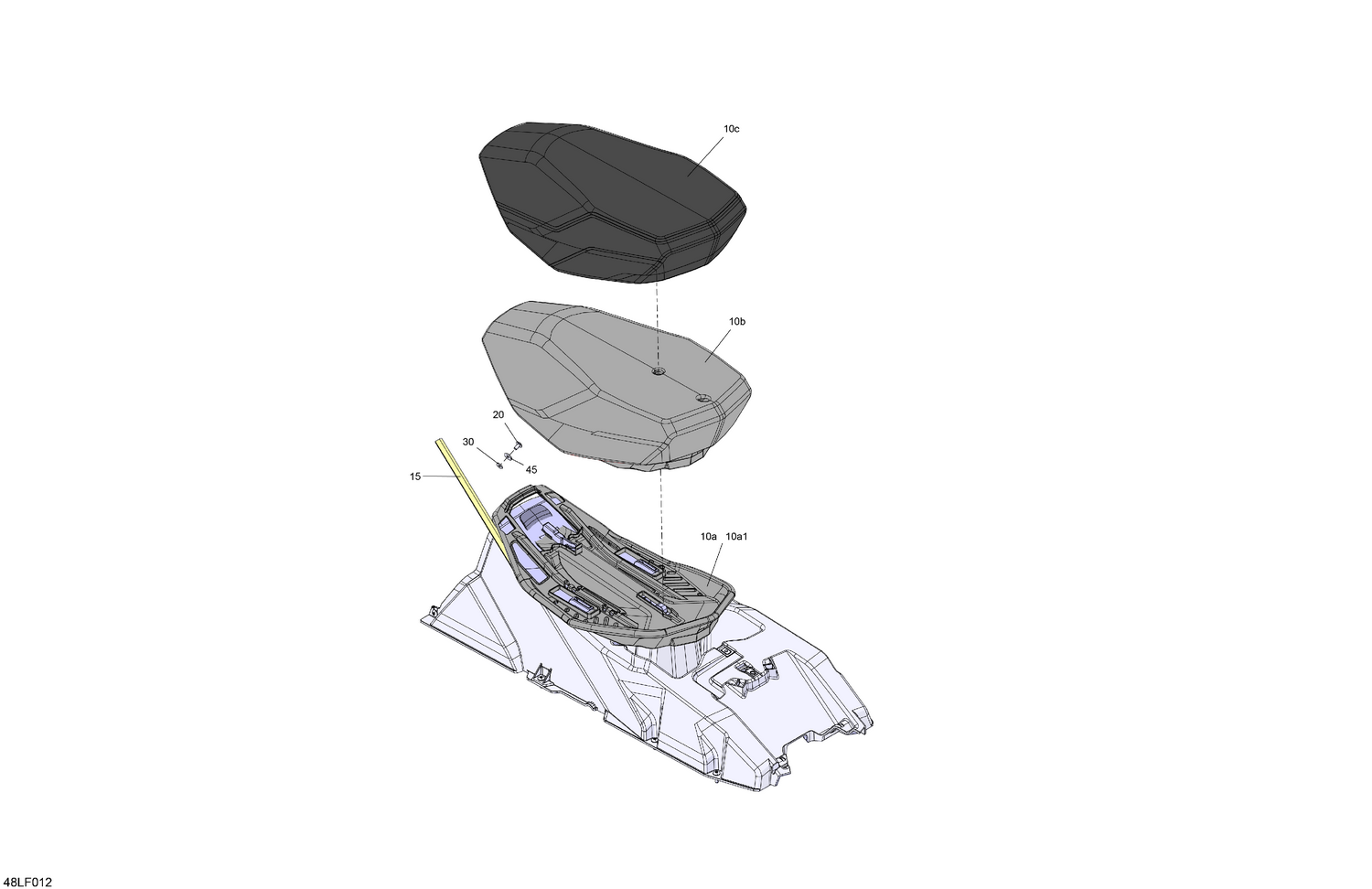

07- Body - Seat

07- Body - Seat

Parts (6)

RefPart NumberDescription
10a1 510007701 Driver Seat Base
10b 510008147 Driver Seat Foam
10c 510008207 Driver Seat Cover
15 510007841 Tube_Sectional
20 250000767 Torx Truss Screw M6 X 12
30 250200039 Flat Washer
