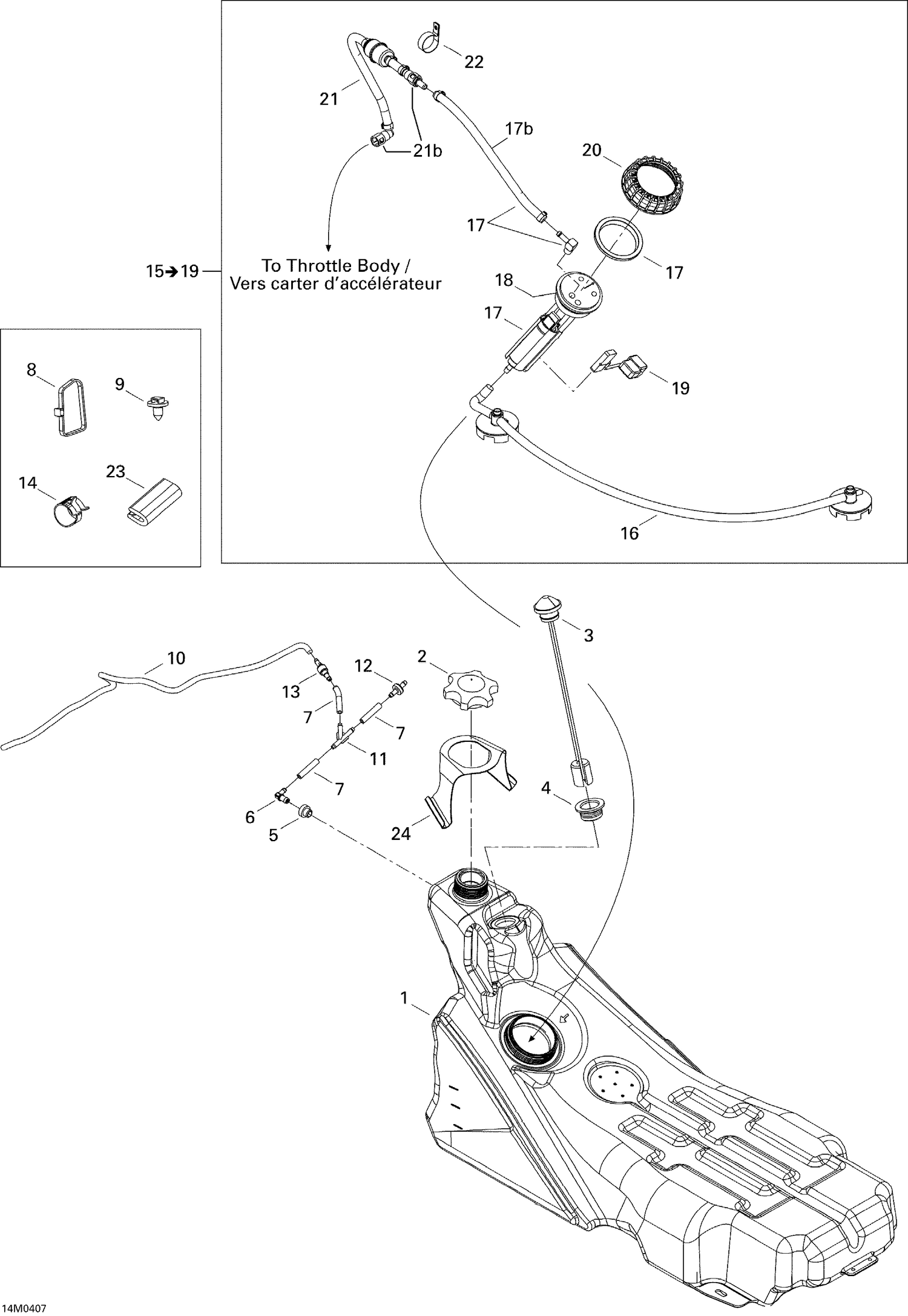

02- Fuel System
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 513033025 | Fuel Tank Cap |
| 5 | 513032908 | Grommet |
| 6 | 414580700 | Male Connector |
| 7 | 219704410 | Polyurethane Hose 10000Mm Long |
| 8 | 414115200 | Tie-Rap 180 mm |
| 9 | 293730040 | Mount Dart This part replaces 293730018. |
| 10 | 219704410 | Polyurethane Hose 10000Mm Long |
| 11 | 293710059 | Y-Fitting |
| 12 | 275500398 | Check Valve |
| 13 | 275500505 | Check Valve |
| 14 | 414554800 | Spring Clamp |
| 16 | 861302400 | Fuel Hose Kit |
| 17 | 861302600 | PUMP HOSE KIT - Call your local BRP dealership |
| 17b | 513033136 | Hose |
| 18 | 861302100 | REGULATOR KIT - Call your local BRP dealership |
| 19 | 861302500 | Float Level Sensor Kit |
| 20 | 513033040 | Nut, Fuel Pump Module |
| 21 | 513033133 | Fuel Filter Ass'y This part replaces 513033087. |
| 21b | 513033135 | Locking Clip |
| 22 | 513033047 | Open Clamp |
| 23 | 219704353 | Was 271000110 Protection Trim |
