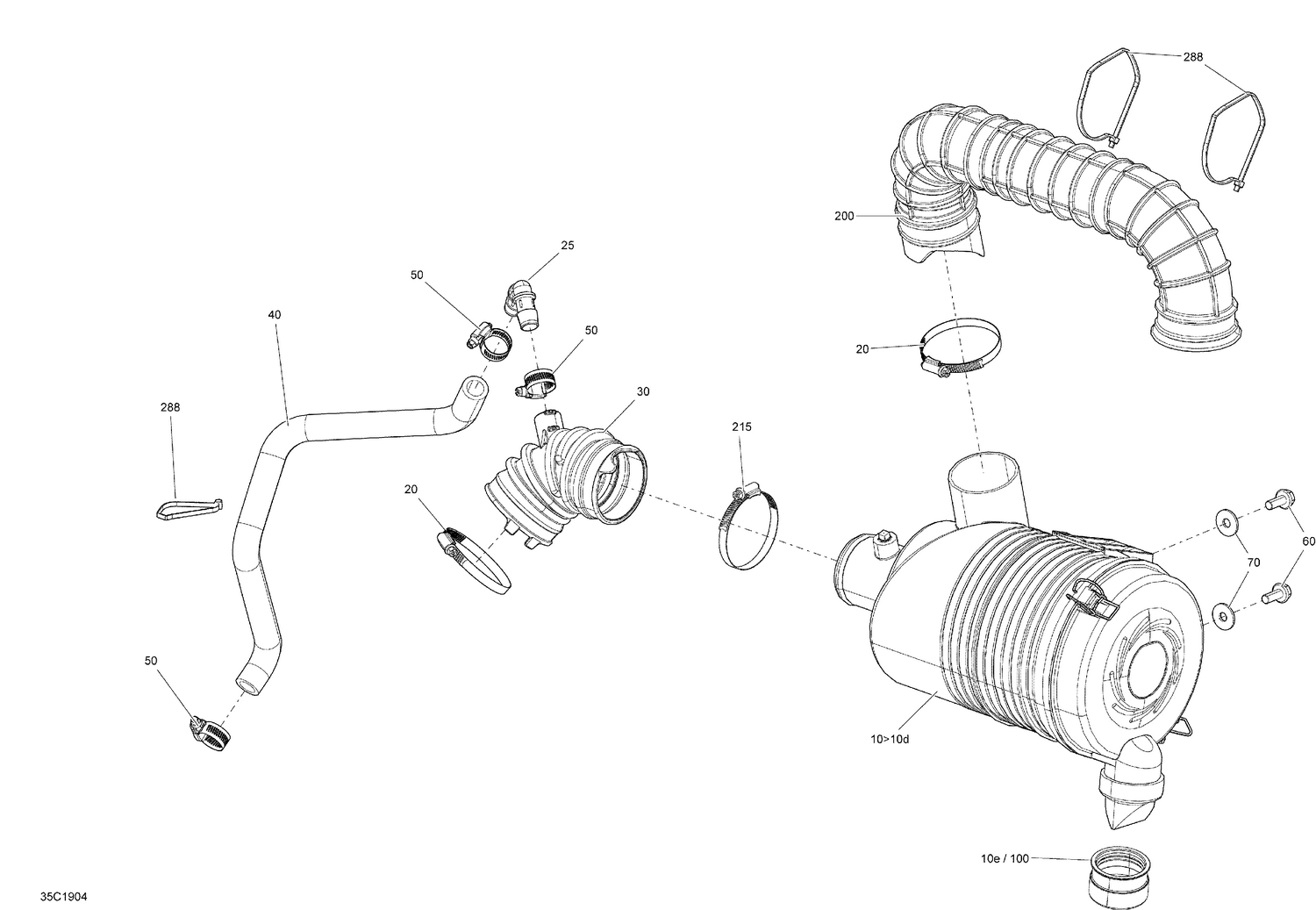

02- Air Intake - HD5
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900397 | Air Intake Cover |
| 10c | 715900394 | Air Filter |
| 10d | 211500001 | Pipe Plug Socket Head 1/8-27 Npt |
| 10e | 715003114 | Duct Bill Valve |
| 20 | 293650091 | Norma Clamp |
| 25 | 414523600 | Elbow Fitting |
| 30 | 707800698 | Air Inlet Tube |
| 40 | 707800699 | Crankcase Breather |
| 50 | 293650173 | Tridon Gear Clamp |
| 55 | 293650173 | Tridon Gear Clamp |
| 60 | 207682044 | Hex. Flange Screw M8 X 20 |
| 70 | 234082410 | Flat Washer 8 mm |
| 200 | 707800752 | Air Inlet Tube |
| 215 | 293650091 | Norma Clamp |
| 288 | 293750008 | Tie Wrap 368 mm |
