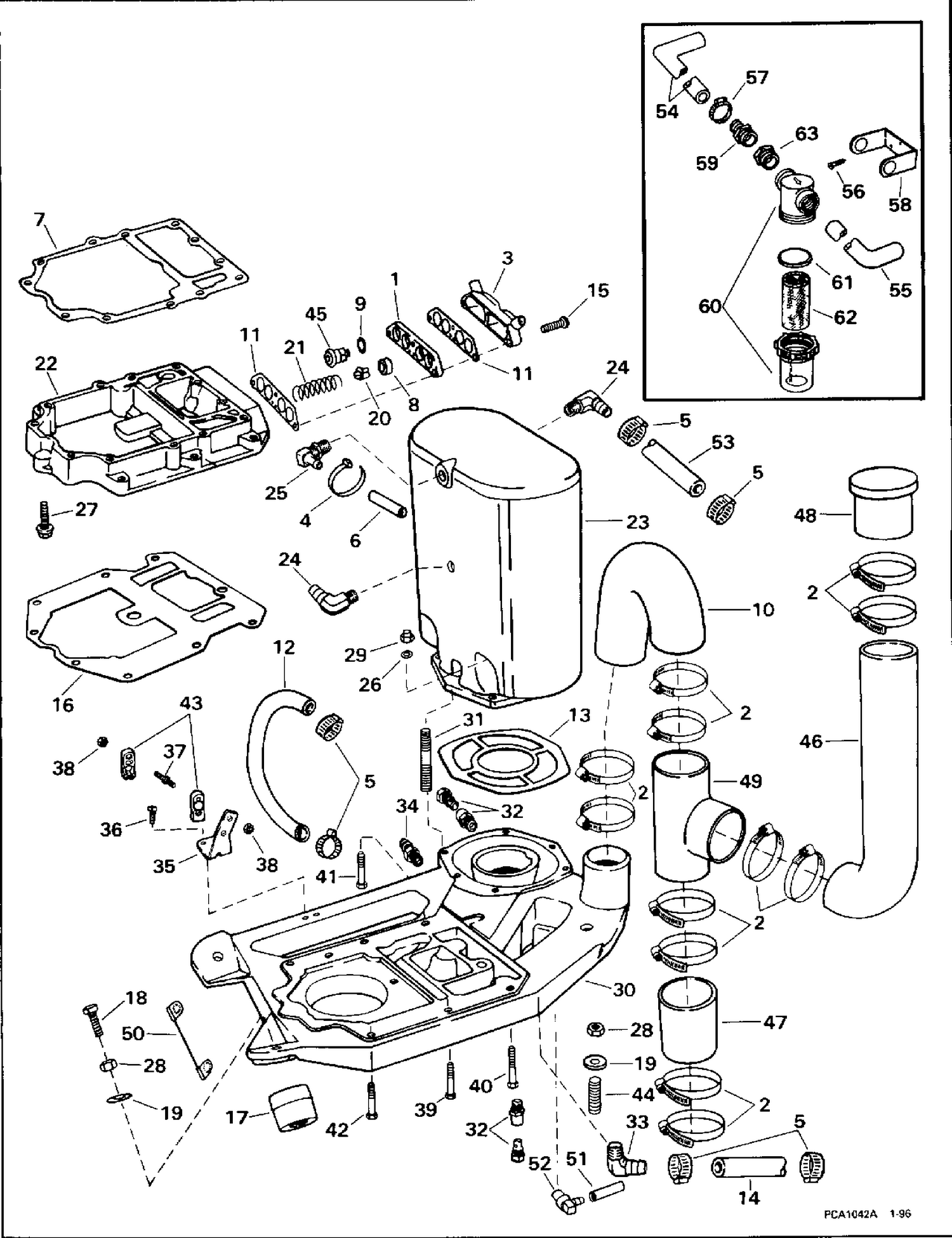

| Ref | Part Number | Description |
|---|
| 1 |
0321693 |
VALVE BODY |
| 2 |
0310894 |
CLAMP |
| 3 |
0321690 |
COVER, Thermostat |
| 4 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 6 |
HOSE, |
Muffler to tee, 11 1/2 in. (292mm) |
| 7 |
0342513 |
GASKET, Adapter to powerhead |
| 8 |
0321692 |
GROMMET |
| 9 |
0321932 |
GASKET, Thermostat |
| 10 |
0340969 |
HOSE, Exhaust |
| 11 |
0332369 |
GASKET |
| 12 |
0341618 |
HOSE, Adapter to muffler |
| 13 |
0339858 |
GASKET, Muffler to adapter |
| 14 |
HOSE, |
Water supply |
| 15 |
0305652 |
VIS, manette des gaz |
| 16 |
0340380 |
GASKET, Plate to adapter |
| 17 |
0436299 |
MOUNT ASSY., Adapter to inlet hsg. |
| 18 |
0342459 |
SCREW, Mount |
| 20 |
0318395 |
CHECK VALVE |
| 21 |
0317245 |
SPRING, Control valve |
| 22 |
0339925 |
PLATE, Cyl. & crkc. to adaptor |
| 23 |
0437799 |
MUFFLER ASSY. |
| 24 |
0340447 |
ELBOW, Adapter |
| 25 |
0342396 |
ELBOW, Muffler |
| 26 |
0306543 |
SCREW, Pinion to shaft |
| 27 |
0333188 |
SCREW, Plate to cyl. & crkc. |
| 28 |
0342458 |
NUT, Mount assy. |
| 30 |
0437535 |
ADAPTER ASSY. |
| 32 |
0379957 |
PETCHOCK ASSY, Water drain |
| 33 |
0340447 |
ELBOW, Adapter |
| 34 |
0340807 |
FITTING |
| 35 |
0340537 |
BRACKET, Throttle anchor |
| 36 |
0335200 |
VIS, capteur position de vilebrequin vers support |
| 37 |
3850682 |
STUD, Anchor block This part replaces 0914682. |
| 40 |
0328698 |
SCREW, Adapter to crankcase |
| 41 |
0553122 |
SCREW |
| 42 |
0306427 |
BOLT |
| 43 |
3852836 |
ANCHOR BLOCK This part replaces 0913795. |
| 44 |
0342460 |
SET SCREW, Mount |
| 45 |
5005440 |
THERMOSTAT This part replaces 0434841. |
| 46 |
0340967 |
HOSE |
| 47 |
0340970 |
HOSE, Tee, lower |
| 48 |
0340968 |
PLUG |
| 49 |
0340966 |
TEE, Exhaust |
| 50 |
0585153 |
LEAD ASSY., Mount |
| 51 |
0331838 |
HOSE, Adapter to control valve |
| 53 |
HOSE, |
Muffler to transom, 18 in. |
| 54 |
HOSE, |
Strainer to adapter |
| 55 |
HOSE, |
Supply to strainer |
| 58 |
0342407 |
BRACKET |
| 59 |
0341939 |
FITTING |
| 60 |
0437597 |
STRAINER |
| 61 |
0916474 |
O-RING |
| 62 |
0341965 |
SCREEN |
| 0437598 |
0437598 |
KIT, Strainer |
