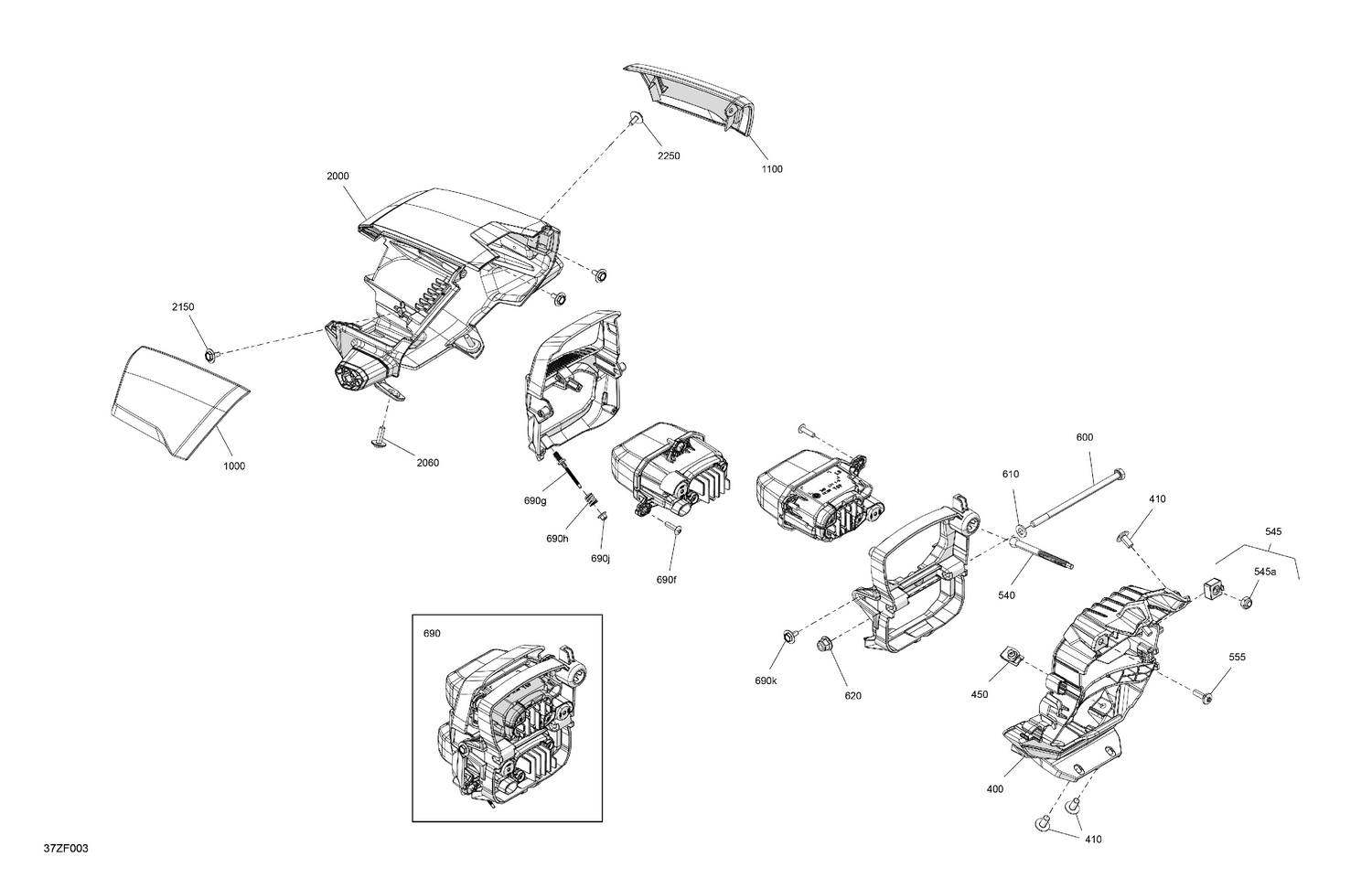

07- Body - Console
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 400 | 708400624 | Front Headlight Support |
| 410 | 250000767 | Torx Truss Screw M6 X 12 |
| 450 | 250100209 | Spring Nut U M5 X 0.8 |
| 540 | 710005837 | Ajustment Screw |
| 545a | 232561200 | Brass Elastic Stop Nut M6 |
| 555 | 250000720 | Torx Screw K50 X 16 |
| 600 | 250001053 | Hex. Screw M6 X 115 Din 931 |
| 610 | 234061410 | Flat Washer 6 mm |
| 620 | 233261494 | Hex. Flange Elastic Nut M6 |
| 690f | 250000759 | Torx Truss Pt K40 X 16 |
| 690g | 517309133 | Threaded Rod |
| 690h | 517309058 | Compression Spring |
| 690j | 517309134 | Specialized Nut |
| 690k | 250000805 | Plastite Screw M4 X 10 |
| 1000 | 708400763 | LH Headlight Trim |
| 1100 | 708400764 | RH Headlight Trim |
| 2000 | 708400817 | Headlight Fairing |
| 2060 | 250001357 | Truss Torx Screw M5 X 16 |
| 2150 | 250000889 | Screw M4 X 16 |
