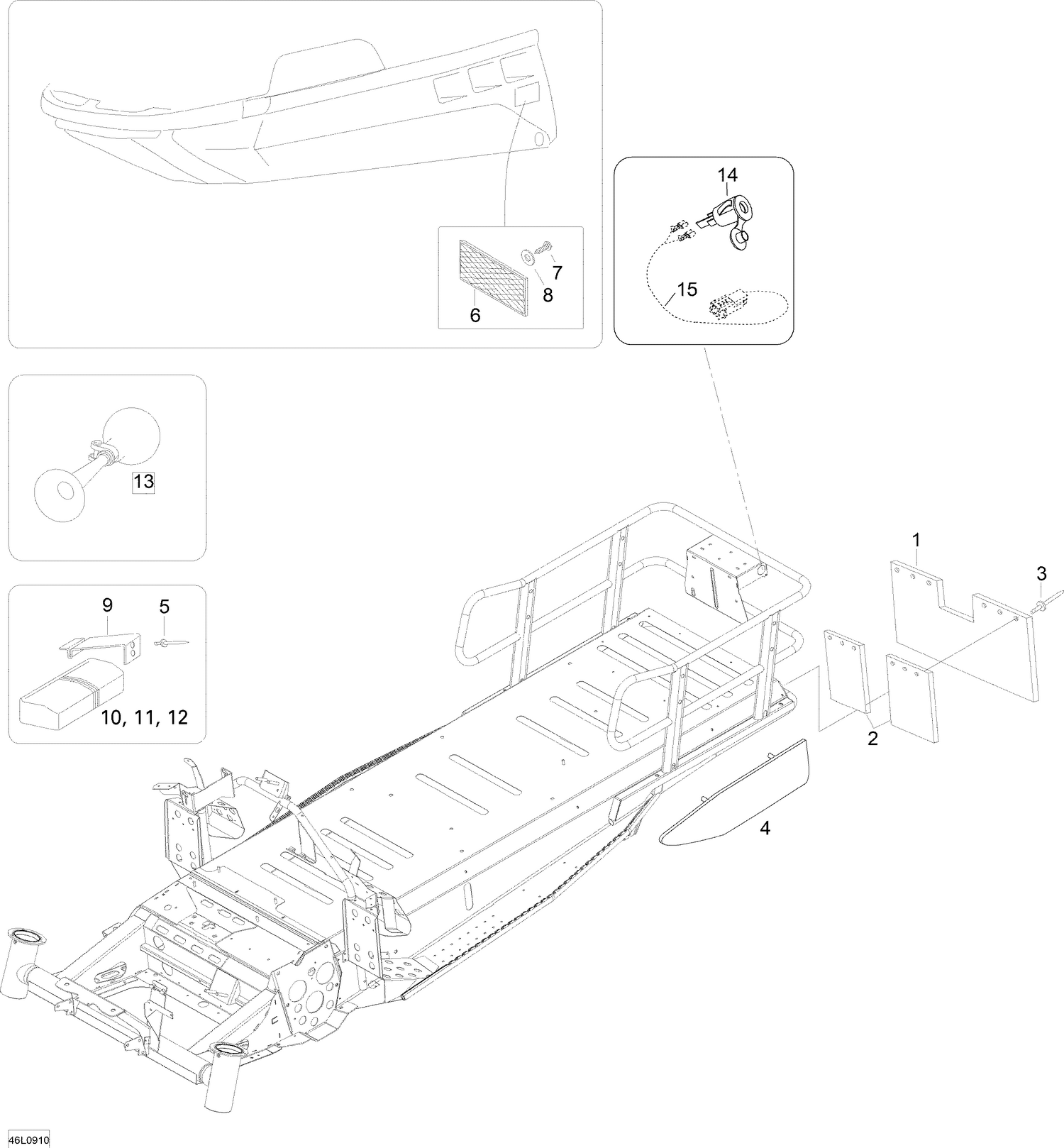

| Ref | Part Number | Description |
|---|
| 1 |
605354720 |
Snow Guard |
| 2 |
605355316 |
SUPPORT - Call your local BRP dealership |
| 3 |
36037 |
Black Rivet This part replaces M36037. |
| 4 |
605354746 |
LH SIDE SNOW GUARD - Call your local BRP dealership |
| 4 |
605354747 |
RH SIDE SNOW GUARD - Call your local BRP dealership |
| 5 |
36108 |
Rivet This part replaces M36108. |
| 6 |
414510200 |
REFLECTOR, AMBER - Call your local BRP dealership |
| 7 |
M40063 |
SCREW M5X12 - Call your local BRP dealership |
| 8 |
234451418 |
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 9 |
M5346728 |
SPRING PLATE - Call your local BRP dealership |
| 10 |
605352219 |
TOOL SET - Call your local BRP dealership |
| 11 |
A50121179000 |
TOOL BOX - Call your local BRP dealership |
| 12 |
Not |
Available As Spare Part - Box Cover |
| 13 |
549011291 |
Horn This part replaces M21003. |
| 14 |
605352915 |
Power outlet kit (Revo) |
