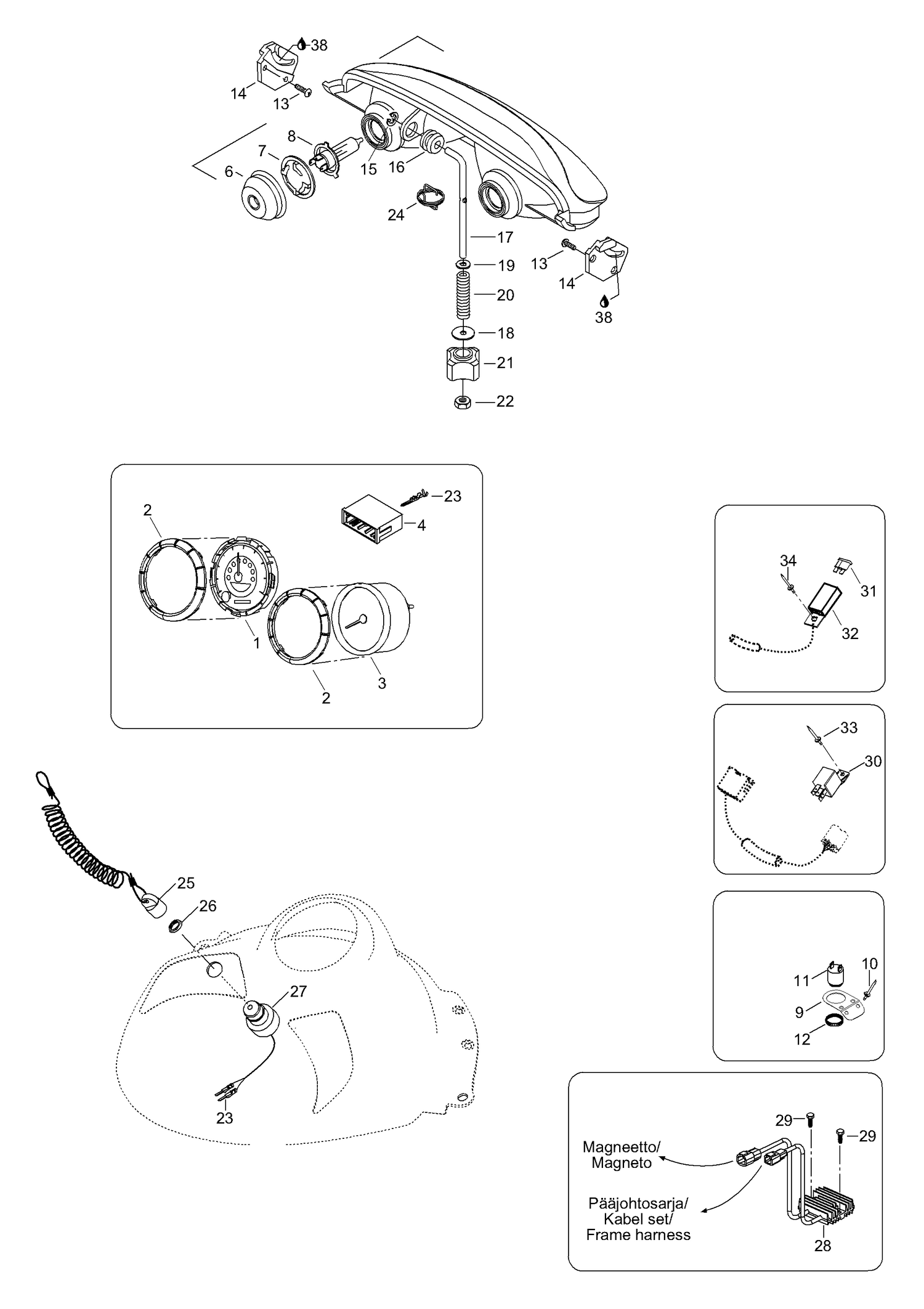

| Ref | Part Number | Description |
|---|
| 1 |
515176000 |
Speedometer |
| 2 |
515179005 |
Gauge Ring This part replaces 515175651. |
| 3 |
515176072 |
Tachometer |
| 4 |
42036 |
Connector housing |
| 6 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 7 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 8 |
515176274 |
Halogen Bulb, 60/55 W, 12 V This part replaces 410504401. |
| 9 |
5447941 |
HORN SUPPORT - Call your local BRP dealership |
| 10 |
36005 |
Rivet |
| 11 |
515176035 |
HORN - Call your local BRP dealership This part replaces 415060900. |
| 12 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 13 |
40177 |
Headlamp screw 4,8 x 16 |
| 14 |
517289300 |
R.H. headlamp support |
| 14 |
517289400 |
L.H. headlamp support |
| 15 |
732610072 |
Push Nut |
| 16 |
415100800 |
Grommet - Call your local BRP dealership |
| 17 |
517295800 |
ADJUSTER ROD - Call your local BRP dealership |
| 18 |
20038 |
Washer |
| 19 |
20003 |
Washer |
| 20 |
415100600 |
SPRING - Call your local BRP dealership |
| 21 |
515175548 |
Handle - Call your local BRP dealership |
| 22 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 23 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 24 |
5447238 |
Spring |
| 25 |
515178284 |
Dess. This part replaces 515166900. |
| 26 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 27 |
515175145 |
DESS SWITCH - Call your local BRP dealership |
| 28 |
515175968 |
Voltage Regulator This part replaces 515175756. |
| 29 |
40377 |
Self tapping screw M6 x 20 |
| 30 |
710010053 |
RELAY This part replaces 410113200. |
| 31 |
409003900 |
Fuse 20 A This part replaces 278001143. |
| 32 |
42272 |
Housing, fuse |
| 33 |
36005 |
Rivet |
| 34 |
36491 |
Rivet |
| 38 |
Not |
Available As Spare Part - Foam - DOES NOT APPLY TO THIS MODEL |
