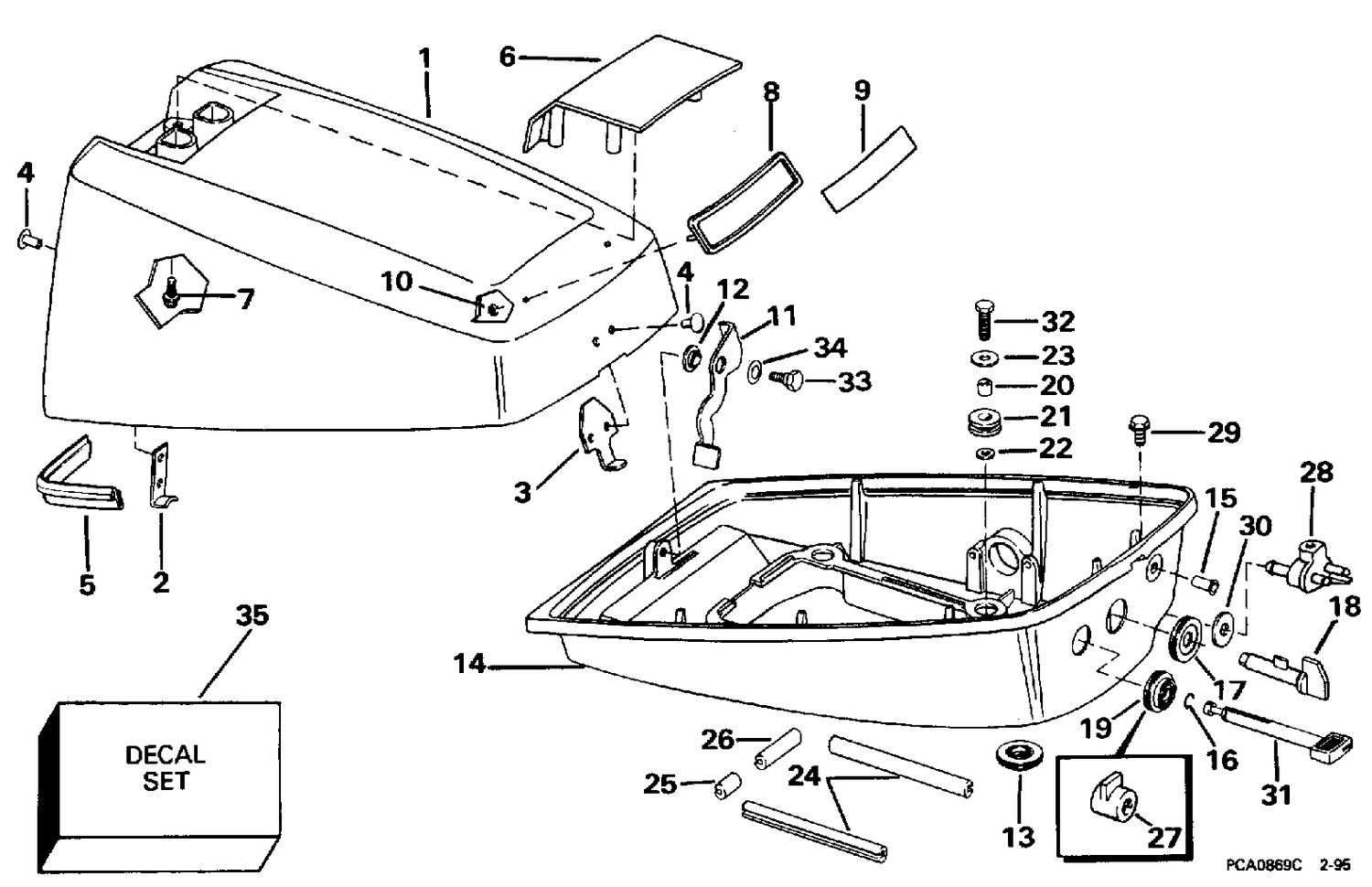

| Ref | Part Number | Description |
|---|
| 1 |
0284699 |
ENGINE COVER ASSY. |
| 1 |
0435139 |
ENGINE COVER ASSY. |
| 2 |
0391114 |
HOOK Rear, (includes rivets) |
| 3 |
0431940 |
HOOK Front, (includes rivets) |
| 4 |
0318836 |
RIVET |
| 5 |
0334154 |
SEAL |
| 6 |
0331134 |
TILT HANDLE |
| 8 |
0211948 |
FRAME |
| 8 |
0331906 |
APPLIQUE |
| 9 |
0212542 |
PLATE |
| 9 |
0337627 |
PLATE |
| 11 |
0312833 |
HANDLE, Latch |
| 12 |
0204444 |
BUSHING |
| 13 |
0331634 |
BAGUE, câble d'accélérateur |
| 14 |
0396888 |
ENGINE COVER, Lower |
| 16 |
0325104 |
RETAINING RING |
| 17 |
0324973 |
GROMMET, Knob slow speed |
| 18 |
0324974 |
KNOB, Slow speed |
| 19 |
0204457 |
GOMMET, Choke knob |
| 20 |
0325085 |
SLEEVE, Mount engine cover |
| 22 |
0329241 |
RONDELLE |
| 24 |
0325087 |
SEAL, Engine cover side |
| 25 |
0325088 |
SEAL, Exhaust housing rear, starboard |
| 26 |
0325823 |
SEAL, Exhaust housing, rear port |
| 27 |
0326723 |
BUSHING, Choke knob |
| 31 |
0328031 |
KNOB, Choke |
| 32 |
0329894 |
SCREW |
| 33 |
0302592 |
SCREW |
| 34 |
0334858 |
WASHER |
| 35 |
0435606 |
DECAL SET |
