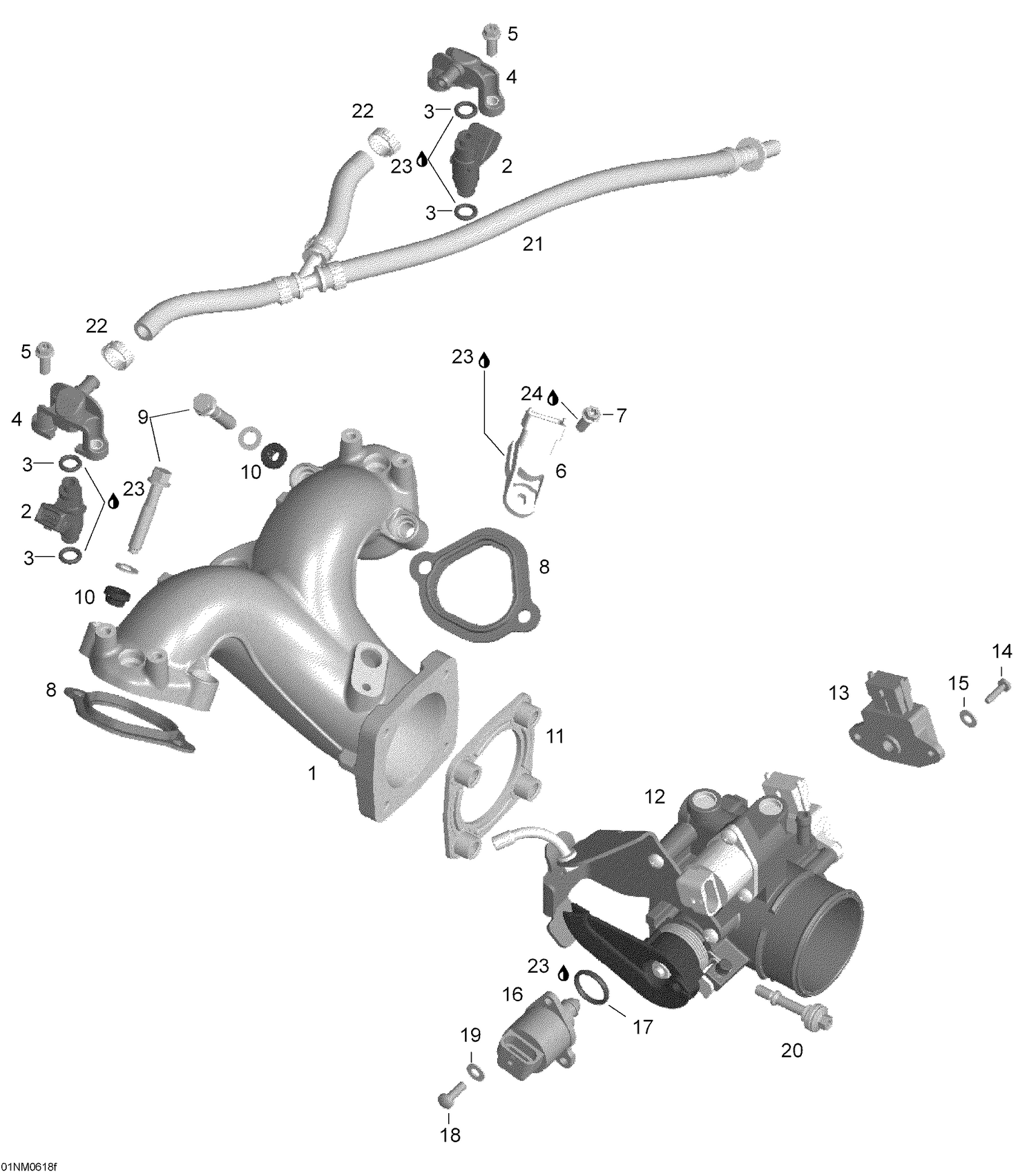

01- Inletmanifold
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420867942 | Air inlet manifold |
| 3 | 420631220 | O-Ring |
| 4 | 420874410 | Fuel rail |
| 5 | 420440162 | Flanged Torx Screw M6 X 16 |
| 6 | 707000995 | Pressure And Temperature Sensor This part replaces 420874650. |
| 7 | 420440162 | Flanged Torx Screw M6 X 16 |
| 8 | 420950692 | GASKET - Call your local BRP dealership |
| 9 | 420440477 | Screw M8 x 21 |
| 10 | 420660190 | RUBBER SLEEVE - Call your local BRP dealership |
| 11 | 420950792 | Rubber gasket |
| 13 | Not | Available As Spare Part - Potentiometer |
| 14 | Not | Available As Spare Part - Screw |
| 15 | Not | Available As Spare Part - Washer |
| 16 | 420665941 | Idle Bypass Valve This part replaces 420963055. |
| 17 | 420631780 | O-ring |
| 18 | 420440911 | Screw M5 x 16 |
| 19 | 420845710 | Snap ring |
| 20 | 420440568 | Hex. Distance Screw M6 X 30.5 This part replaces 420440307. |
| 21 | 420874562 | Fuel hose |
| 22 | 420851458 | Clamp |
| 23 | 293550030 | Grease, Super Lube This part replaces 293550014. |
