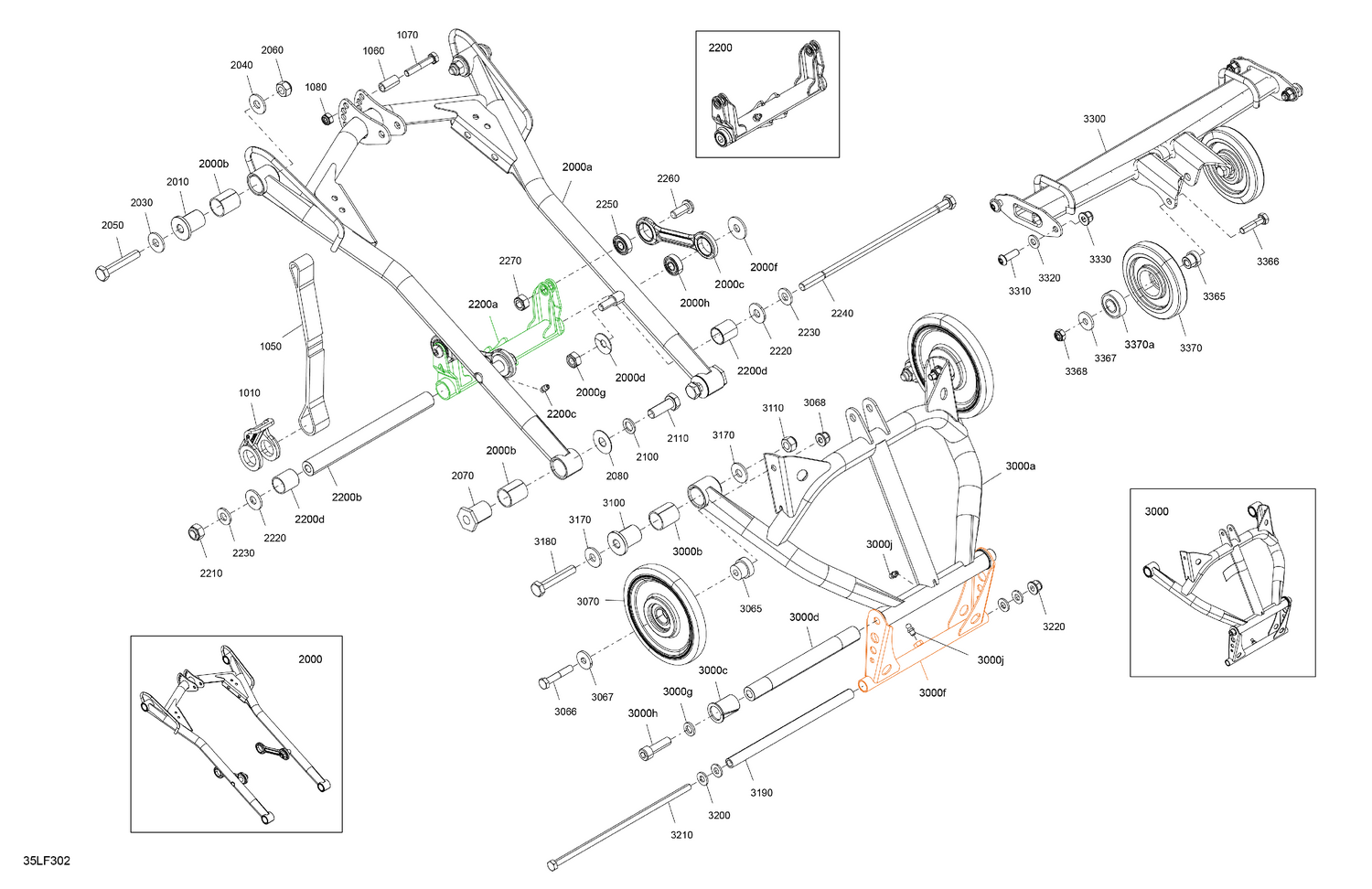

05- Suspension - Rear - Upper Section
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 1010 | 503194867 | Holder, Limiter Strap |
| 1050 | 503196920 | Strap Stopper |
| 1060 | 503195579 | Sleeve |
| 1070 | 207084544 | Hex. Screw M8 X 45 |
| 1080 | 232581414 | Hex. Elastic Stop Nut M8 |
| 2000a | 503196155 | Front Suspension Arm |
| 2000b | 503191554 | Bushing |
| 2000c | 503196428 | Link Rod |
| 2000d | 25004 | Cup Spring |
| 2000f | 234002410 | Flat Washer 10 mm |
| 2000g | 233401414 | Lock Spring Nut M10 |
| 2000h | 503194696 | Bearing |
| 2010 | 503190698 | Axle |
| 2030 | 503191926 | Washer |
| 2040 | 503191926 | Washer |
| 2050 | 207006056 | Hex. Cap Screw M10 X 60 |
| 2060 | 233601466 | Elastic Locking Nut M10 |
| 2070 | 503191966 | Lower Axle |
| 2080 | 503190656 | Washer |
| 2100 | 503192491 | Washer |
| 2110 | 250000537 | Hex. Cap Screw M12 X 35 |
| 2200a | 503196425 | Front Pivot Arm |
| 2200b | 503193893 | Lower Shaft |
| 2200c | 408200700 | Grease Fitting |
| 2200d | 503196217 | Glide Bearing |
| 2210 | 503193227 | Bolt M10 X 251MM |
| 2220 | 503191926 | Washer |
| 2230 | 250200138 | Washer |
| 2240 | 233201466 | Flanged Elastic Nut M10 |
| 2250 | 503194696 | Bearing |
| 2260 | 205402546 | Socket Screw BN.HD.ISO.7380 |
| 2270 | 232500416 | Elastic Stop Nut M10 |
| 3000a | 503196162 | Rear Suspension Arm |
| 3000b | 503191554 | Bushing |
| 3000c | 503191640 | Cushion |
| 3000d | 503196223 | Lower Shaft |
| 3000f | 503196433 | Pivot Arm |
| 3000g | 503192496 | Washer |
| 3000h | 205503554 | Socket Head Screw M10 X 35 |
| 3000j | 408200700 | Grease Fitting |
| 3065 | 503197978 | Sleeve |
| 3066 | 207084544 | Hex. Screw M8 X 45 |
| 3067 | 20077 | M8 Washer |
| 3068 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3070 | 503193852 | Idler Wheel |
| 3100 | 503190698 | Axle |
| 3110 | 233601466 | Elastic Locking Nut M10 |
| 3170 | 503191926 | Washer |
| 3180 | 207006056 | Hex. Cap Screw M10 X 60 |
| 3190 | 503196358 | Pivot Arm Axle |
| 3200 | 503192494 | Washer |
| 3210 | 503192440 | Bolt M8 X 248mm |
| 3220 | 233281466 | Elastic Flang Nut M8 |
| 3300 | 503196424 | Central Beam |
| 3310 | 250001126 | Torx Screw Button Head M8 X 25 |
| 3320 | 503192494 | Washer |
| 3330 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3365 | 503193330 | Sleeve |
| 3366 | 207083544 | Hex. Screw M8 X 35 |
| 3367 | 20077 | M8 Washer |
| 3368 | 232581414 | Hex. Elastic Stop Nut M8 |
