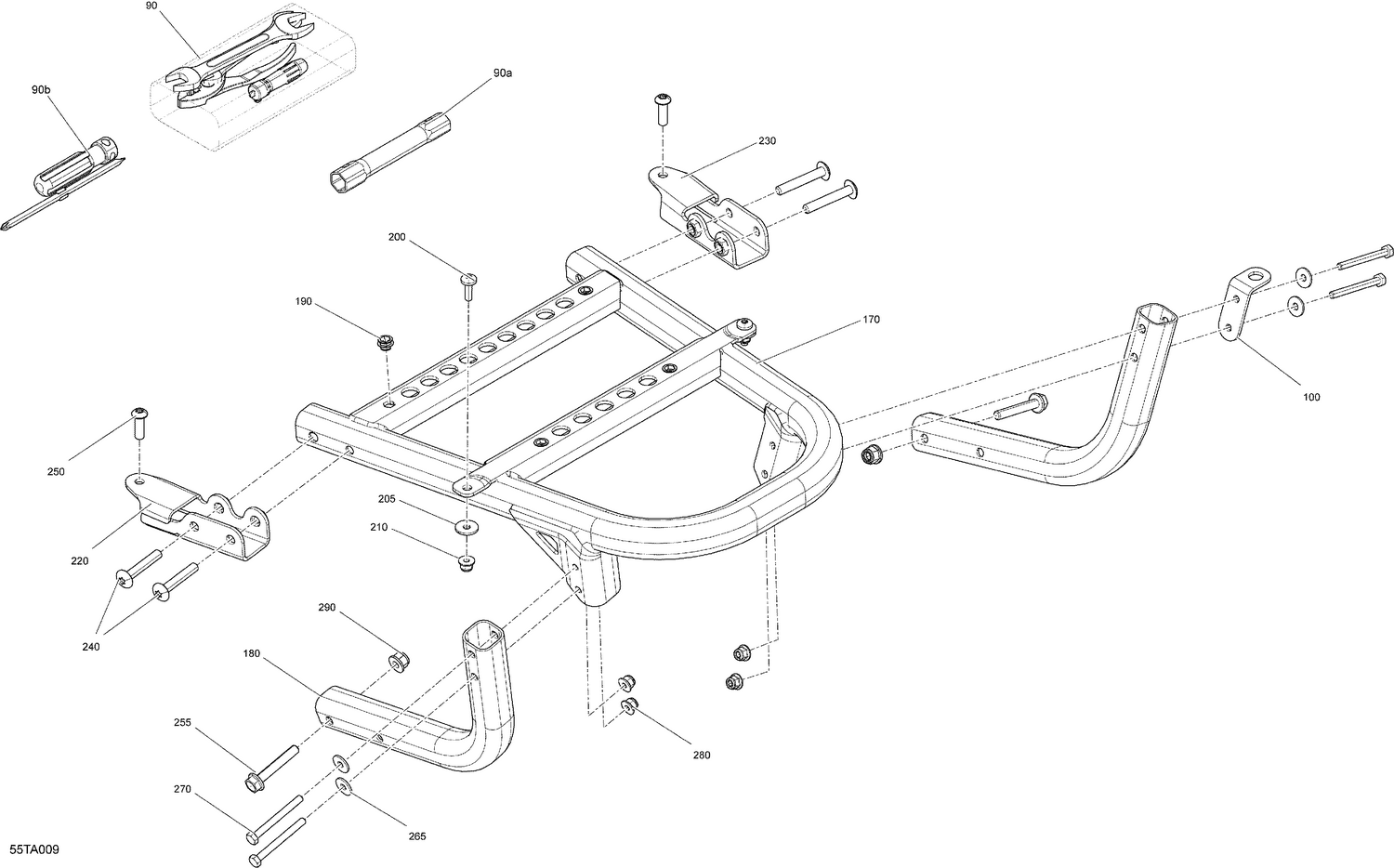

07- Body - Storage Tray
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 90a | 529000085 | Socket Wrench 14/16MM |
| 90b | 529000021 | Screw Driver |
| 100 | 705005837 | Flag Support |
| 170 | 715007470 | Rear Bumper Ass'y |
| 180 | 705018526 | Deep Black, Rear Pillar -SB This part replaces 705004981. |
| 190 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 200 | 250000712 | Torx Screw M6 X 20 |
| 205 | 224061201 | Flat Washer |
| 210 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 220 | 705004977 | LH Front Bracket |
| 230 | 705004978 | RH Front Bracket |
| 240 | 250000844 | Torx Screw M8 X 50 S.GRIP |
| 250 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr |
| 255 | 207685044 | Hex. Flange Screw M8 X 50 |
| 265 | 234062410 | Flat Washer 6 mm |
| 270 | 207066044 | Hex. Screw M6 X 60 |
| 280 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
