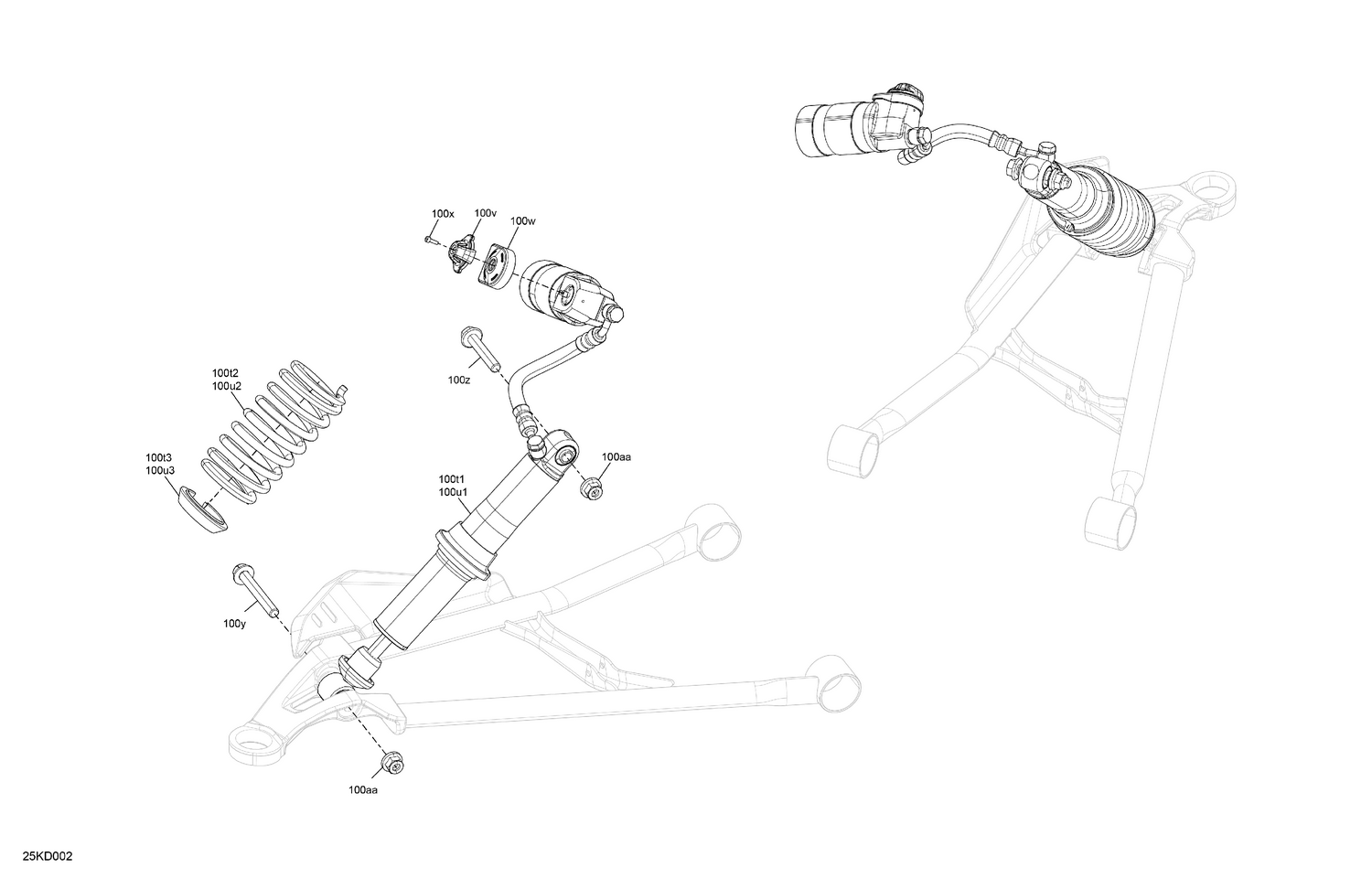

05- Suspension - Front Shocks
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 100t1 | 706004338 | LH Front Adjustable Shock Absorber |
| 100t2 | 706204736 | Front Compression Spring |
| 100t3 | 503195241 | Spring Stopper |
| 100u1 | 706004512 | RH Front Adjustable Shock Absorber |
| 100u2 | 706204736 | Front Compression Spring |
| 100u3 | 503195241 | Spring Stopper |
| 100v | 706004415 | Adjustment Button |
| 100w | 706004533 | Gauge |
| 100x | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 100y | 207607056 | Hex. Flange Screw M10 X 70 |
| 100z | 207605554 | Hex. Flange Screw M10 X 55 |
