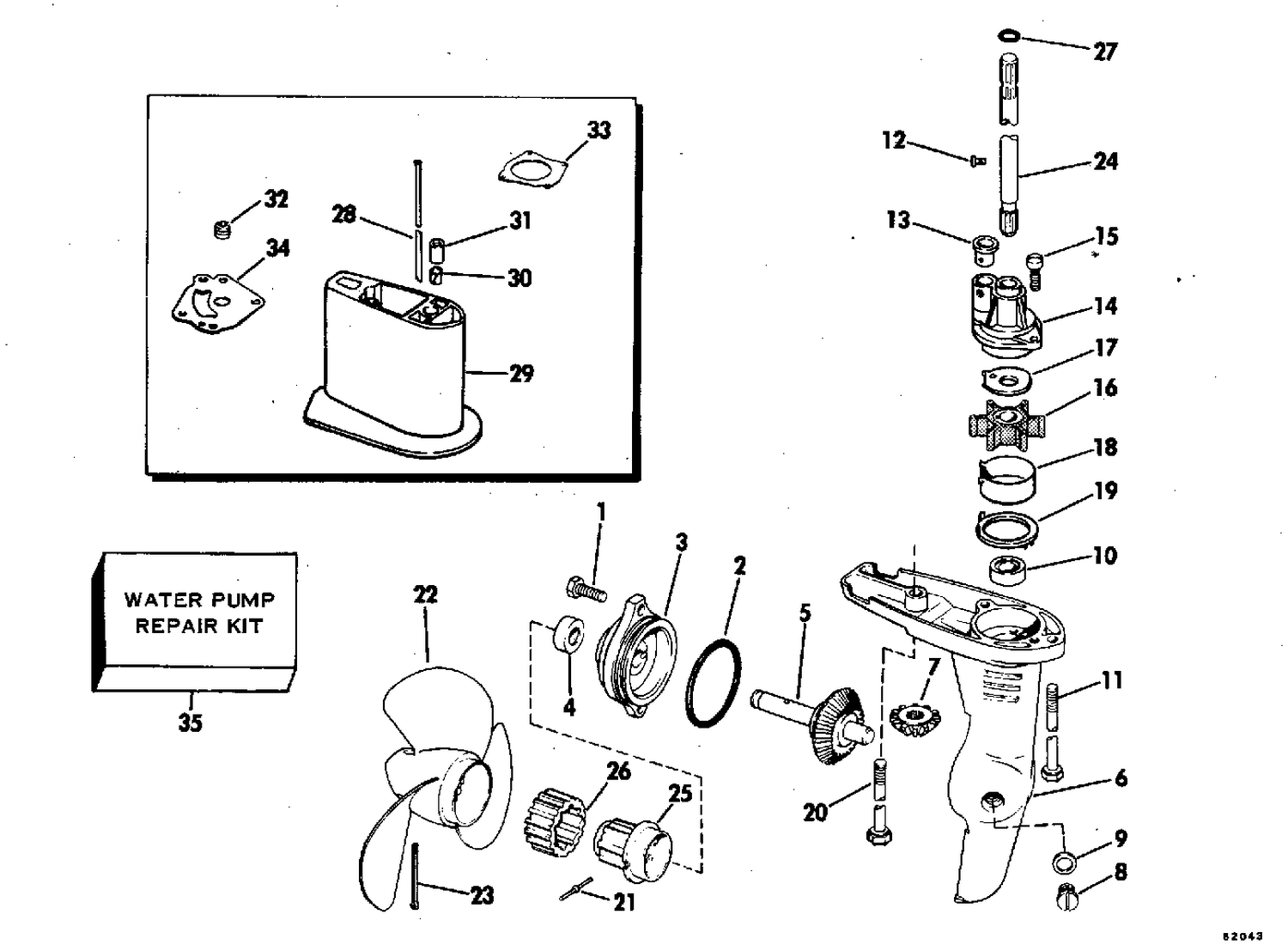

| Ref | Part Number | Description |
|---|
| 1 |
0300646 |
VIS, ancrage |
| 3 |
0383341 |
EARCASE HEAD AND BUSHING ASSEMBLY |
| 5 |
0385236 |
PROP SHAFT AND GEAR ASSY |
| 6 |
0389066 |
GEARCASE & BUSH. ASSY. |
| 7 |
0313608 |
PINION, Driveshaft |
| 10 |
504154335 |
Deep Black, Chain Case Ass'y |
| 11 |
0303398 |
VIS, support This part replaces 0302030. |
| 11 |
0315221 |
SCREW, G case mtg, long |
| 12 |
0321130 |
DRIVE PIN, Impeller |
| 14 |
BODY, |
Water pump |
| 16 |
0387361 |
IMPELLER & PIN ASSY |
| 17 |
PLATE, |
Water pump |
| 18 |
CUP, |
Impeller body |
| 19 |
SPACER, |
Water pump |
| 20 |
0313332 |
SCERW, Adj. bracket |
| 20 |
250001213 |
Socket Head Screw M6 X 18 |
| 21 |
0333513 |
DRIVE IN, Propeller This part replaces 0316558. |
| 22 |
0318487 |
PROPELLER |
| 23 |
0313693 |
COTTER PIN |
| 24 |
0323381 |
DRIVESHAFT, Std |
| 24 |
0323666 |
DRIVESHAFT, Long |
| 25 |
0391598 |
CLUTCH HUB, Propeller This part replaces 0317466. |
| 26 |
0310331 |
RING, Clutch |
| 28 |
0323646 |
SCREW, Cover to exh. hsg. |
| 32 |
0323286 |
GROMMET, Water tube |
| 33 |
0315338 |
GASKET, Exh housing |
| 34 |
0323936 |
GASKET, Housing to cover This part replaces 0323443. |
| 70 |
250001016 |
Hex Flanged Screw M8 X 25 S.Grip |
| 80 |
233261434 |
Flanged Elastic Nut M6 |
| 100 |
293200168 |
Oil Seal |
| 110 |
293350153 |
Ball Bearing |
| 120 |
504152576 |
Circlip |
| 140 |
504154083 |
Sprocket 24 Teeth Ass'y |
| 150b |
293350142 |
Ball Bearing |
| 150c2 |
504154043 |
Cap |
| 150d |
293300291 |
O-Ring Seal This part replaces 293300230. |
| 200 |
504153500 |
Connecting Shaft Ass'y |
| 210 |
293370129 |
Circlip |
| 220 |
504153179 |
Release Spring |
| 230 |
504153502 |
Sliding Gear 27 Teeth Machined |
| 260 |
504152689 |
Washer |
| 270 |
293370055 |
Circlip |
| 290 |
207503046 |
Hex. Flange Screw M10 X 30, Scotch Grip |
| 500b |
250400010 |
Rolled Pin M3 X 10 |
| 510 |
504078700 |
Ring |
| 520 |
504154086 |
Sprocket 19 Teeth Ass'y |
| 530 |
570048600 |
Alignement Rod |
| 550 |
504154087 |
Gear Straight 29 Teeth Ass'y |
| 560 |
504077300 |
Trust washer |
| 1100 |
293200159 |
Oil Seal |
| 1120 |
504152582 |
Circlip |
| 1130 |
504153996 |
Sprocket 49 Teeth |
| 1140 |
504152572 |
Circlip |
| 1500 |
504153397 |
Drive Chain, 116 Links |
| 1510 |
414575600 |
Hair Pin |
| 1520 |
504153760 |
Adjustment Screw |
| 1540 |
250500013 |
Hex. Countersunk Drain Plug |
| 1545 |
504153704 |
Magnetic Plug |
| 1550 |
293300202 |
O-Ring |
| 1600 |
504154577 |
Chain Tensioner |
| 1610 |
504153312 |
Chain Slider |
| 1640 |
250200185 |
Copper Washer |
| 1650 |
293370105 |
Circlip |
| 1660 |
504153531 |
Slide Chain |
| 1670 |
250000717 |
Torx Head Screw M6 X 16 |
| 1690 |
250000764 |
Hex. Button Head Screw M8 X 1.25 X 35 |
| 1700d |
515179692 |
Clip Connector |
| 1700f |
415130141 |
Sleeve |
| 1710 |
293300200 |
O-Ring |
| 1720 |
250001153 |
Flanged Hex. Screw M6X20 |
| 1740a |
504152930 |
Cap This part replaces 504154304. |
| 1740b |
293710180 |
Straight Pipe Fitting |
| 1740c |
219704539 |
Hose 5.7MM - 630MM |
| 1740d |
515179201 |
Heat Shield |
| 1740f |
414580700 |
Male Connector |
| 1770 |
250500013 |
Hex. Countersunk Drain Plug |
| 1790 |
250001015 |
Flanged Hex. Screw M6 X 35 |
| 1800 |
504154097 |
Fork Ass'y |
| 1810 |
293300202 |
O-Ring |
| 1820 |
504154096 |
Reverse Axle |
| 1830 |
250400045 |
Spring Pin M5 X 16 |
| 1860 |
504153532 |
Machined Lever |
| 1880 |
207564044 |
Hex. Flange Screw M6 X 40, Scotch Grip |
| 1890 |
504153657 |
Rod Actuating Adjustable Ass'y |
| 1900 |
504153944 |
Rod Actuating Ass'y |
| 1920 |
205562044 |
Socket Head Screw M6 X 20, Scotch Grip |
| 1930 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 1940 |
504153524 |
Reverse Lever |
| 1960 |
205564044 |
Socket Head Screw M6 X 40, S.GRIP |
| 1970 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 1980 |
504082900 |
Washer |
| 1990 |
207089044 |
Hex. Screw M8 X 90 |
| 2030 |
293300201 |
O-Ring |
| 2040 |
504154043 |
Cap |
| 2050 |
504152572 |
Circlip |
| 2070 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 2090 |
504153683 |
Handle Support |
| 2110 |
504153648 |
Spacer |
| 2120 |
504153735 |
Bushing |
| 2130 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 2180 |
504153735 |
Bushing |
| 2190 |
504153648 |
Spacer |
| 2500b |
250300028 |
Clinch Stud, M8 X 25 |
| 2510 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 3000b |
XXX |
Not Available As Spare Parts |
| 3000c |
XXX |
Not Available As Spare Parts |
| 3000d |
504154417 |
Retaining Ring |
| 3000f |
293350059 |
Ball Bearing |
| 3000g |
293300291 |
O-Ring Seal This part replaces 293300230. |
| 3200a |
415130661 |
Clip |
| 3200b |
504152651 |
Cleat |
| 4000 |
250000764 |
Hex. Button Head Screw M8 X 1.25 X 35 |
| 0389038 |
0389038 |
GEARCASE ASSY, Complete |
| 0389220 |
0389220 |
EXTENSION KIT - 5 INCH |
