Parts Catalog

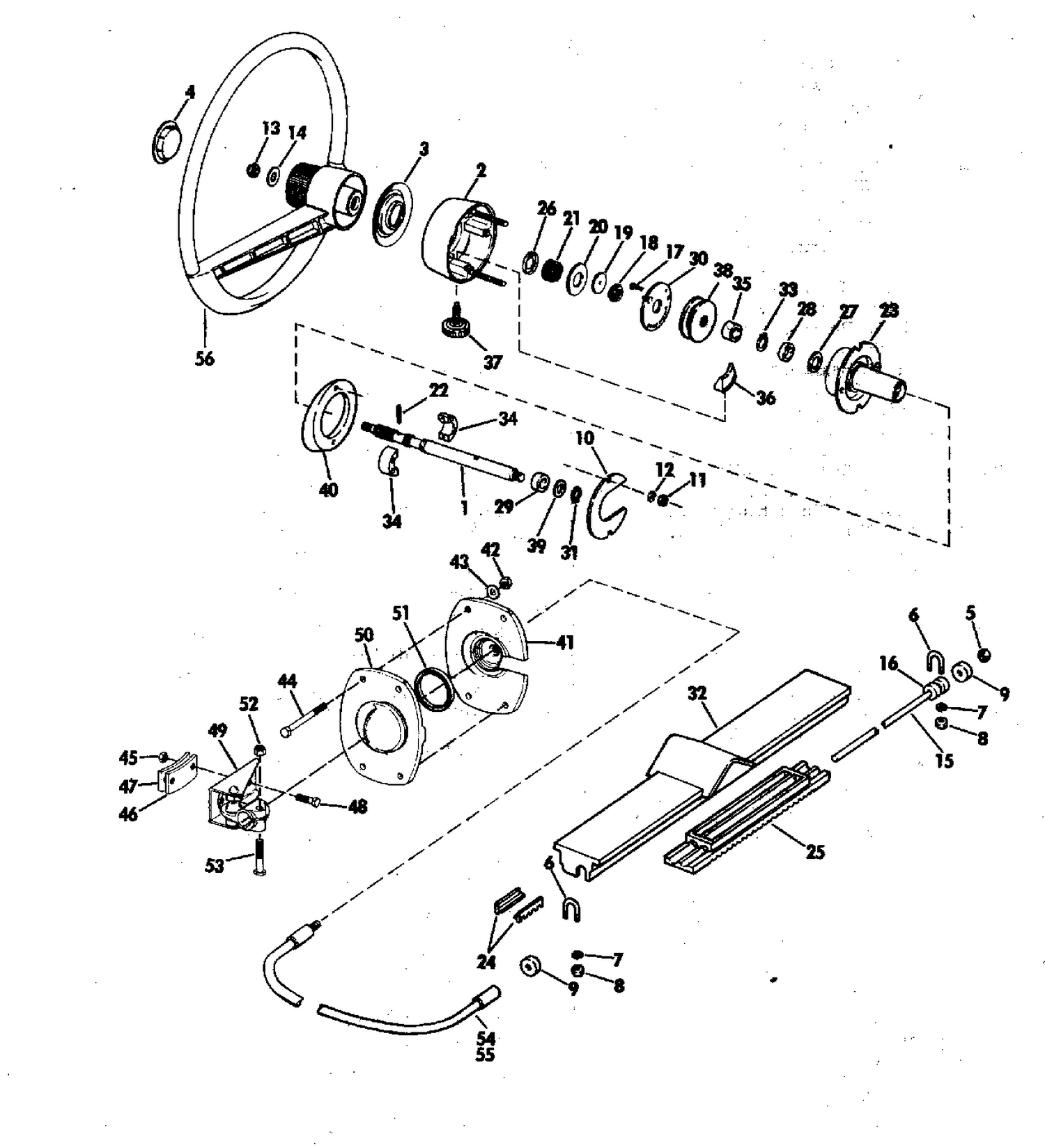

MECHANICAL STEERING KIT 90, 120, 155, 210 HP

Parts (58)

Ref	Part Number	Description
1	0171872	SHAFT & PINION ASSEMBLY
2	0172307	BEZEL ASSEMBLY
3	0121581	LENS
4	0121609	MEDALLION
6	0121603	U BOLT
8	0132520	NUT
9	0121607	BUMPER
10	0121583	PLATE, Mounting
11	0306320	NUT
13	0904880	LOCKNUT, Steering shaft
14	0121639	SPRING WASHER, Steering wheel
15	0172109	GUIDE BAR ASSEMBLY
16	0171604	STOP
17	0121605	SCREW
18	0121598	GEAR, Drive
19	0121594	GEAR, Cluster
20	0121597	GEAR, Output
21	0121586	SPRING, Coil
23	0121577	HELM
24	0121582	PAD, Wear
25	0121579	RACK
26	0121641	WASHER, Coupled
27	0121588	WASHER, Thrust
28	0121592	BEARING, Front
29	0121590	BEARING, Front
30	0171871	SUPPORT PLATE ASSEMBLY
31	0121599	BOWED "E" RING
32	0121580	COVER, Dust, snap on
33	0121591	RING, Retaining
34	0122018	BEARING
35	0121732	SPACER
36	0121701	SHOE, Brake
37	0121699	SCREW, Jack
38	0121700	PULLEY, Brake
39	0121589	WASHER, End play
40	0172145	ADAPTER KIT, 20
41	0121673	TRANSOM PLATE, Inner
44	0121675	BOLT,Hex head
46	0121671	FRONT PLATE
47	0121670	BACK PLATE
48	0312207	BOLT,Hex head
49	0171951	CABLE TERMINAL ASSEMBLY
50	0121672	TRANSOM PLATE, Outer
51	0121669	SEAL
53	0306427	BOLT
54	0171910	CABLE ASSEMBLY, 10' to
55	0172002	CABLE ASSEMBLY, Dual station 22'
0121702	0121702	CLIP, Canoe
0171909	0171909	TERMINAL KIT & TRANSOM PLATE ASSEMBLY
0171950	0171950	CABLE ASSEMBLY, 50'
0172003	0172003	CABLE ASSEMBLY, Dual station, 10'
0172004	0172004	CABLE ASSEMBLY, Dual station, 12'
0172005	0172005	CABLE ASSEMBLY, Dual station, 14'
0172006	0172006	CABLE ASSEMBLY, Dual station, 16'
0172007	0172007	CABLE ASSEMBLY, Dual station, 18'
0172008	0172008	CABLE ASSEMBLY, Dual station, 20'
0172308	0172308	HELM ASSEMBLY
0381167	0381167	BACKING PLATE ASSEMBLY
