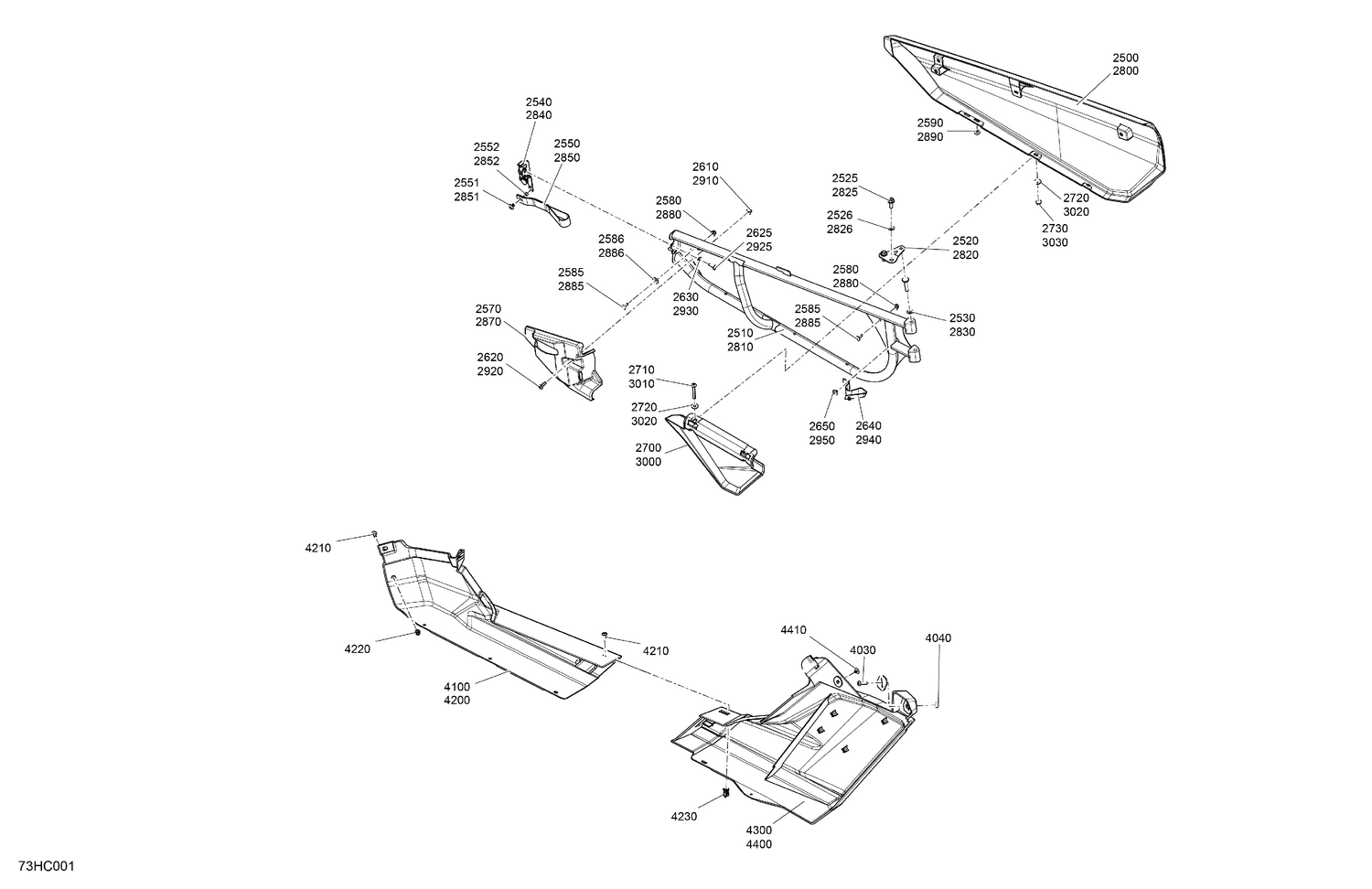

07- Body - Doors
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 2510 | 705018468 | Deep Black, LH Front Door This part replaces 705015442. |
| 2520 | 705011187 | Door Support |
| 2525 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 2526 | 234081430 | Flat Washer M8 |
| 2530 | 234081100 | Flat Washer 8 mm, Nylon |
| 2540 | 705013095 | LH Latch |
| 2550 | 293850135 | Belt |
| 2551 | 293150103 | Pop Rivet 3/16" |
| 2552 | 293900104 | Bushing |
| 2570 | 705013535 | LH Latch Cover |
| 2580 | 250100198 | Panel Nut M6 X 1.0 |
| 2585 | 250000721 | Torx Truss Screw M6 X 16 |
| 2586 | 234062670 | Stainless Steel Flat Washer |
| 2590 | 293150103 | Pop Rivet 3/16" |
| 2610 | 250100198 | Panel Nut M6 X 1.0 |
| 2620 | 250000721 | Torx Truss Screw M6 X 16 |
| 2625 | 250000786 | Torx Screw M6 X 20, Scotch Grip |
| 2630 | 224061121 | Flat Washer |
| 2640 | 293850129 | Door Belt |
| 2650 | 293150103 | Pop Rivet 3/16" |
| 2700 | 705010732 | LH Lower Door Panel |
| 2710 | 250000749 | Torx Truss Screw M6 X 50 |
| 2720 | 234062670 | Stainless Steel Flat Washer |
| 2730 | 233261466 | Hex. Flange Elastic Nut M6 |
| 2810 | 705018470 | Deep Black, RH Front Door This part replaces 705015443. |
| 2820 | 705011187 | Door Support |
| 2825 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 2826 | 234081430 | Flat Washer M8 |
| 2830 | 234081100 | Flat Washer 8 mm, Nylon |
| 2840 | 705013096 | RH Latch |
| 2850 | 293850135 | Belt |
| 2851 | 293150103 | Pop Rivet 3/16" |
| 2852 | 293900104 | Bushing |
| 2870 | 705013536 | RH Latch Cover |
| 2880 | 250100198 | Panel Nut M6 X 1.0 |
| 2885 | 250000721 | Torx Truss Screw M6 X 16 |
| 2886 | 234062670 | Stainless Steel Flat Washer |
| 2890 | 293150103 | Pop Rivet 3/16" |
| 2910 | 250100198 | Panel Nut M6 X 1.0 |
| 2920 | 250000721 | Torx Truss Screw M6 X 16 |
| 2925 | 250000786 | Torx Screw M6 X 20, Scotch Grip |
| 2930 | 224061121 | Flat Washer |
| 2940 | 293850129 | Door Belt |
| 2950 | 293150103 | Pop Rivet 3/16" |
| 3000 | 705010733 | RH Lower Door Panel |
| 3010 | 250000749 | Torx Truss Screw M6 X 50 |
| 3020 | 234062670 | Stainless Steel Flat Washer |
| 3030 | 233261466 | Hex. Flange Elastic Nut M6 |
| 4030 | 250000807 | Torx Truss Screw M6 X 25 |
| 4040 | 250100198 | Panel Nut M6 X 1.0 |
| 4100 | 705017554 | Deep Black, LH Central Side Panel |
| 4200 | 705017555 | Deep Black, RH Central Body Panel This part replaces 705017555. |
| 4210 | 250000722 | Torx Screw M6 X 20 |
| 4220 | 250100198 | Panel Nut M6 X 1.0 |
| 4230 | 705016606 | Insert |
