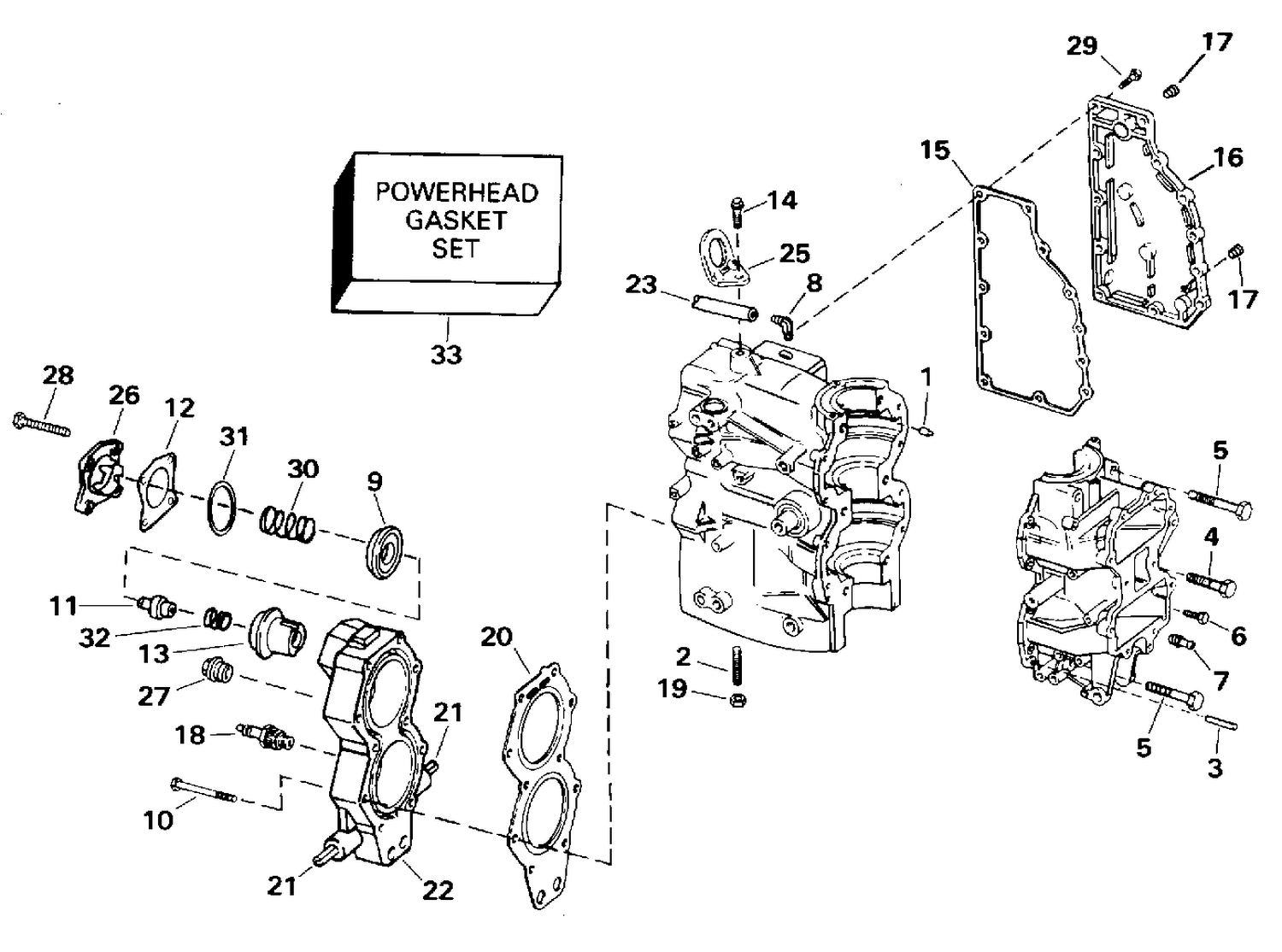

CYLINDER & CRANKCASE
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 0435957 | DIAPHRAGM |
| 10 | 0322323 | SCREW |
| 11 | 0436195 | ENSEMBLE THERMOSTAT |
| 12 | 0329830 | GASKET, Cover |
| 14 | 0326248 | SCREW |
| 15 | 0325211 | GASKET |
| 16 | 0437506 | COVER & PLUG Assy, Water passage |
| 18 | 0432424 | SPARK PLUG , QL16V |
| 19 | 0316355 | BUT, Carburetor mounting This part replaces 0315204. |
| 20 | 0335359 | GASKET, Cylinder head |
| 22 | 0339540 | CYLINDER HEAD |
| 23 | HOSE, | Indicator, 18 3/4 in. (480mm) |
| 25 | 0326023 | LIFT BRACKET |
| 26 | 0343141 | COVER, Thermostat This part replaces 0339207. |
| 28 | 0306049 | SCREW |
| 29 | 0302288 | BOLT |
| 30 | 0342421 | SPRING |
| 0437341 | 0437341 | CYLINDER & C'CASE Assy |
