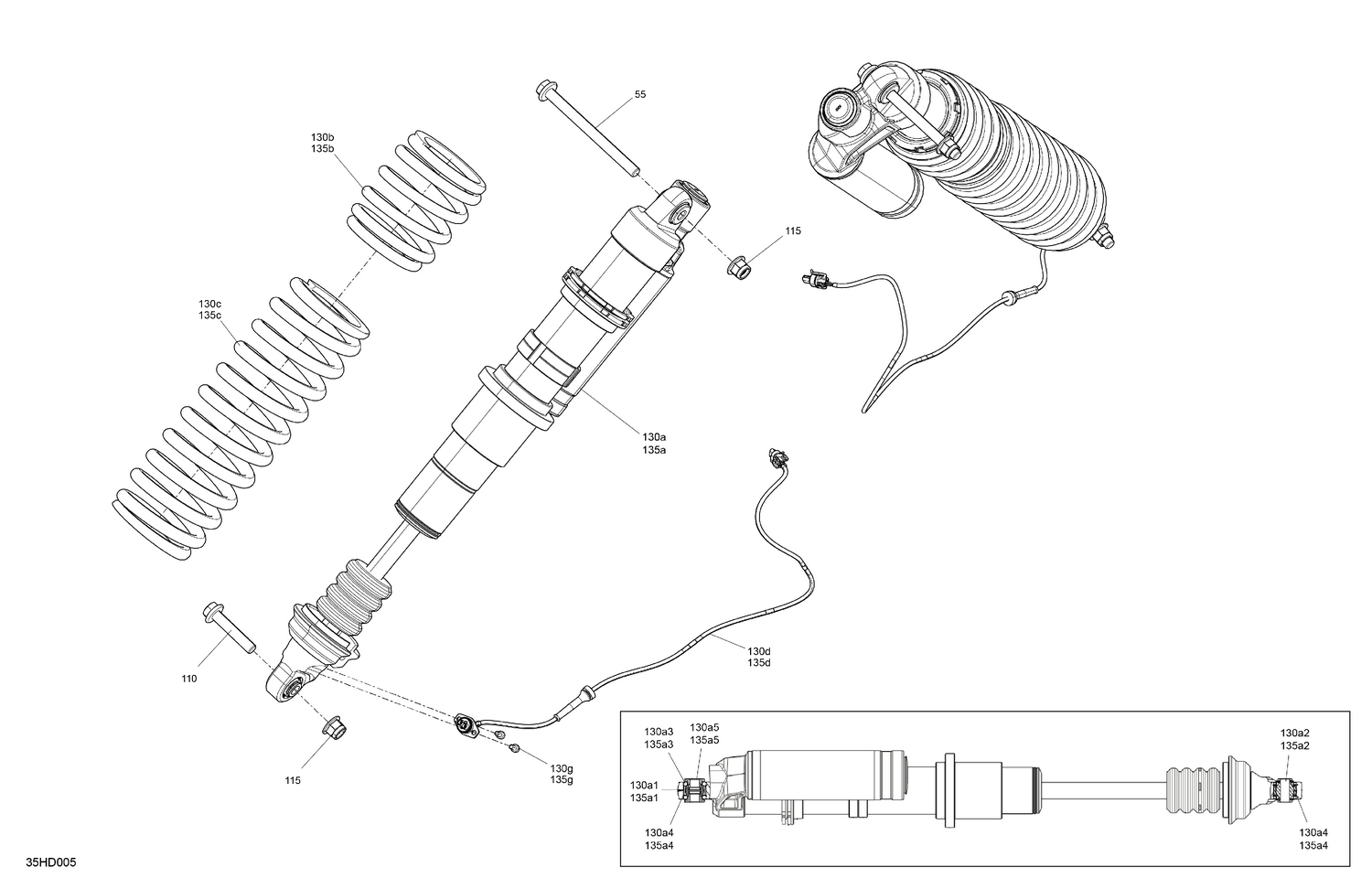

05- Suspension - Front Shocks
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 55 | 250000861 | Flange Screw M12 X 145 |
| 110 | 250000857 | Flange Screw M12 X 60 |
| 115 | 250001195 | Elastic Flange Nut M12 |
| 130a1 | 715900337 | Spherical Bearing |
| 130a2 | 706004078 | Ball Joint |
| 130a3 | 715900338 | O-Ring Bushing |
| 130a4 | 715900480 | Circlip |
| 130a5 | 715900481 | Reducer |
| 130b | 706205761 | Liquid Titan, Compression Spring |
| 130c | 706205770 | Liquid Titan, Compression Spring |
| 130d | 710006388 | Front Suspension Wiring Harness Ass'y |
| 130g | 205551060 | Socket Head Screw M5 X 10 |
| 135a1 | 715900337 | Spherical Bearing |
| 135a2 | 706004078 | Ball Joint |
| 135a3 | 715900338 | O-Ring Bushing |
| 135a4 | 715900480 | Circlip |
| 135a5 | 715900481 | Reducer |
| 135b | 706205761 | Liquid Titan, Compression Spring |
| 135c | 706205770 | Liquid Titan, Compression Spring |
| 135d | 710006388 | Front Suspension Wiring Harness Ass'y |
