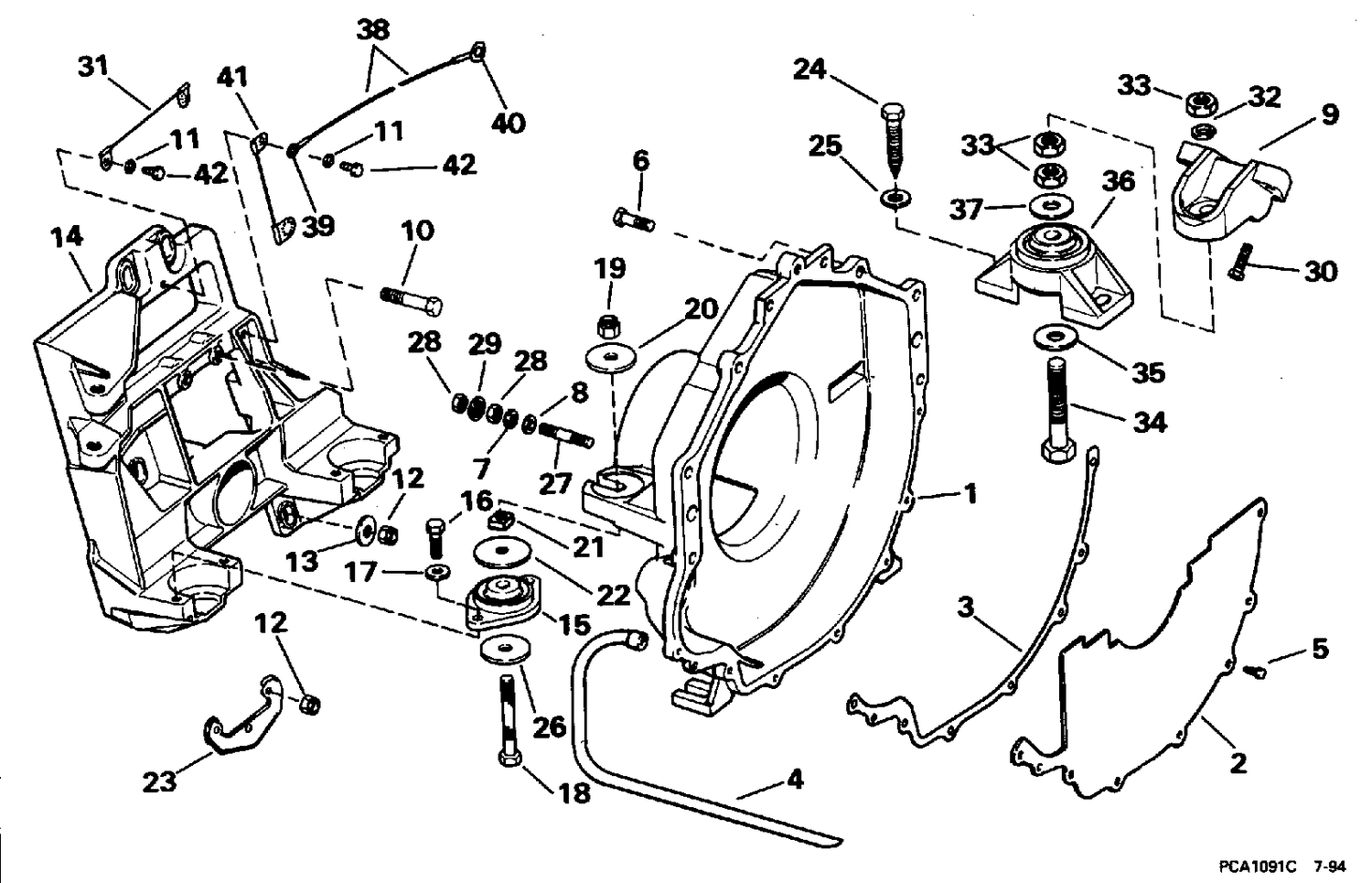

| Ref | Part Number | Description |
|---|
| 1 |
3857846 |
Housing This part replaces 3853457. |
| 2 |
3854604 |
COVER, Flywheel |
| 3 |
3852834 |
GASKET, Flywheel |
| 4 |
3852832 |
HOSE, Flywheel housing |
| 5 |
3852421 |
SCREW, Baffle |
| 6 |
3850753 |
SCREW, Lower |
| 6 |
3853547 |
SCREW, Bracket |
| 7 |
0120177 |
L'WASHER, Alternator to brkt This part replaces 3852002. |
| 9 |
3857844 |
Brkt This part replaces 3852760. |
| 10 |
3853547 |
SCREW, Bracket |
| 11 |
0329241 |
RONDELLE This part replaces 3852193. |
| 12 |
3853329 |
LOCKNUT, Transom plate |
| 13 |
3852573 |
WASHER, Pivot pin |
| 14 |
3854605 |
TRANSOM PLATE |
| 15 |
3853972 |
REAR MOUNT |
| 16 |
0309484 |
SCREW This part replaces 3852085. |
| 18 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) This part replaces 3852153. |
| 19 |
3850929 |
LOCKNUT, Rear mount This part replaces 3852122. |
| 20 |
3852540 |
WASHER |
| 21 |
3852539 |
NUT |
| 22 |
3852622 |
WASHER, Lower |
| 23 |
3852605 |
BEARING PLATE |
| 24 |
3852475 |
LAG SCREW |
| 25 |
3852078 |
WASHER, Lag screw |
| 26 |
3852542 |
WASHER |
| 27 |
3852483 |
STUD, Ground |
| 29 |
0306993 |
L'WASHER,Potentiometer,12 V This part replaces 3852070. |
| 30 |
3853326 |
SCREW, Bracket to engine |
| 31 |
3853929 |
GROUND STRAP, Bracket to arm |
| 32 |
3852090 |
LOCK WASHER |
| 33 |
3852021 |
LOCKNUT |
| 34 |
3852566 |
BOLT, Engine mount |
| 35 |
3852428 |
WASHER, Lower |
| 36 |
3853805 |
FRONT MOUNT |
| 37 |
3852433 |
WASHER |
| 38 |
3853929 |
GROUND STRAP, Bracket to arm |
| 40 |
3852527 |
RING TERMINAL |
| 41 |
3853929 |
GROUND STRAP, Bracket to arm |
