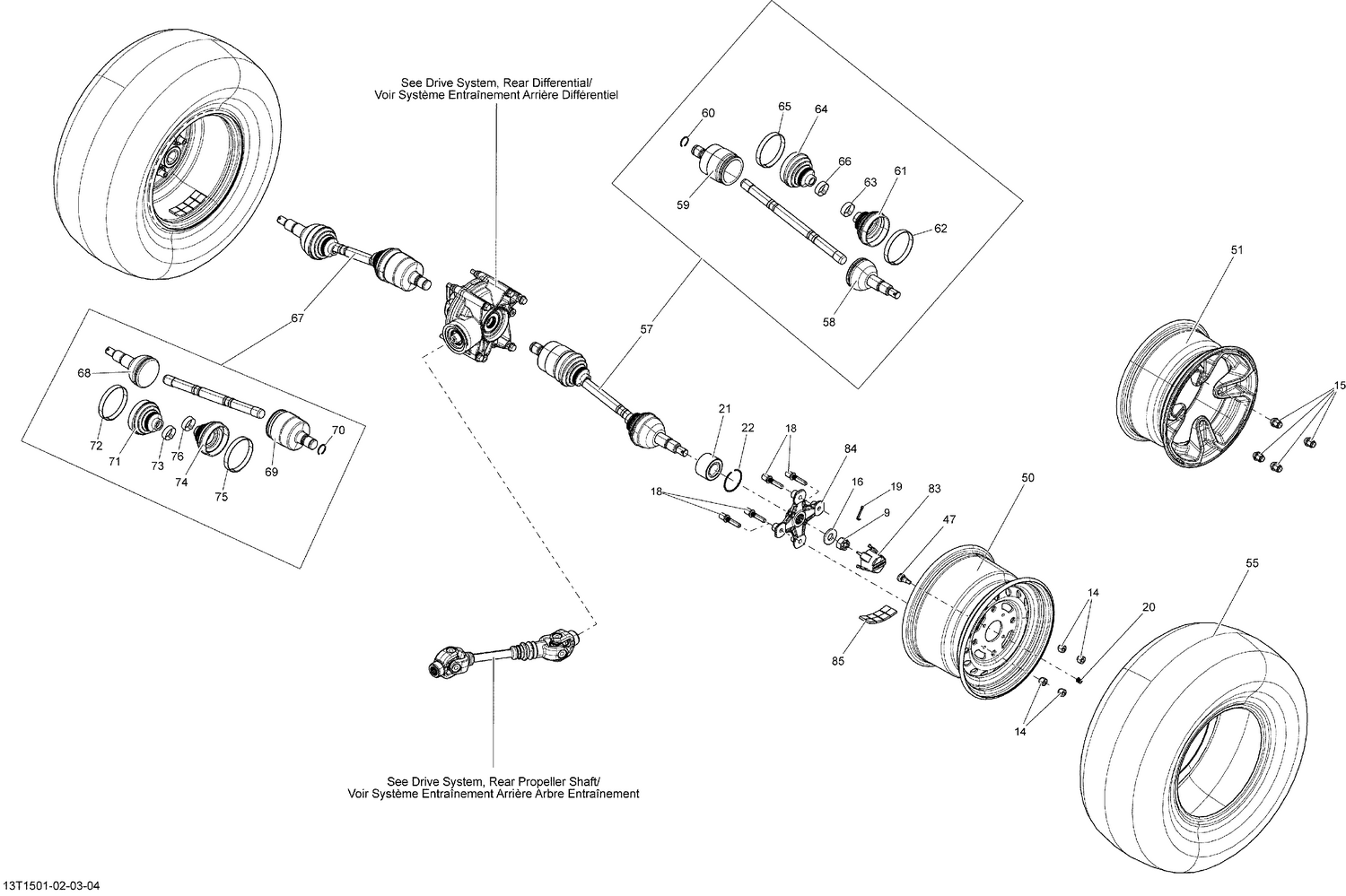

08- Drive System, Rear _13T1502
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 15 | XXX | Not Available As Spare Parts |
| 16 | 250200171 | Conical Spring Washer M18 This part replaces 250200049. |
| 19 | 250400036 | Cotter Pin |
| 20 | 293000110 | Valve Cap |
| 21 | 293350150 | Ball Bearing This part replaces 293350040. |
| 22 | 293370019 | Circlip |
| 47 | 705400193 | Rim Valve With Cap |
| 57 | 705501898 | LH Half Shaft Ass'y |
| 58 | 705401344 | CV Joint |
| 59 | 715900304 | Plunging Joint |
| 60 | 705501781 | Circlip |
| 62 | 715900282 | Oetiker Clamp |
| 63 | 715900283 | Oetiker Clamp, Small |
| 65 | 715900284 | Oetiker Clamp, Large |
| 66 | 715900261 | Oetiker Clamp, Small |
| 67 | 705501897 | RH Half Shaft Ass'y |
| 68 | 705401344 | CV Joint |
| 69 | 715900304 | Plunging Joint |
| 70 | 705501781 | Circlip |
| 72 | 715900282 | Oetiker Clamp |
| 73 | 715900283 | Oetiker Clamp, Small |
| 75 | 715900284 | Oetiker Clamp, Large |
| 76 | 715900261 | Oetiker Clamp, Small |
| 83 | 705400928 | Wheel Cap |
