Home / BRP / Can-Am ATV / 2021 / 004 - ATV - North America - Renegade Series / 003 - Renegade 850 EFI - STD_XXC - North America, 2021 0004BMA00 0004BMB00 0004DMA00 0004DMB00 / 07- Body - Skid Plate - STD

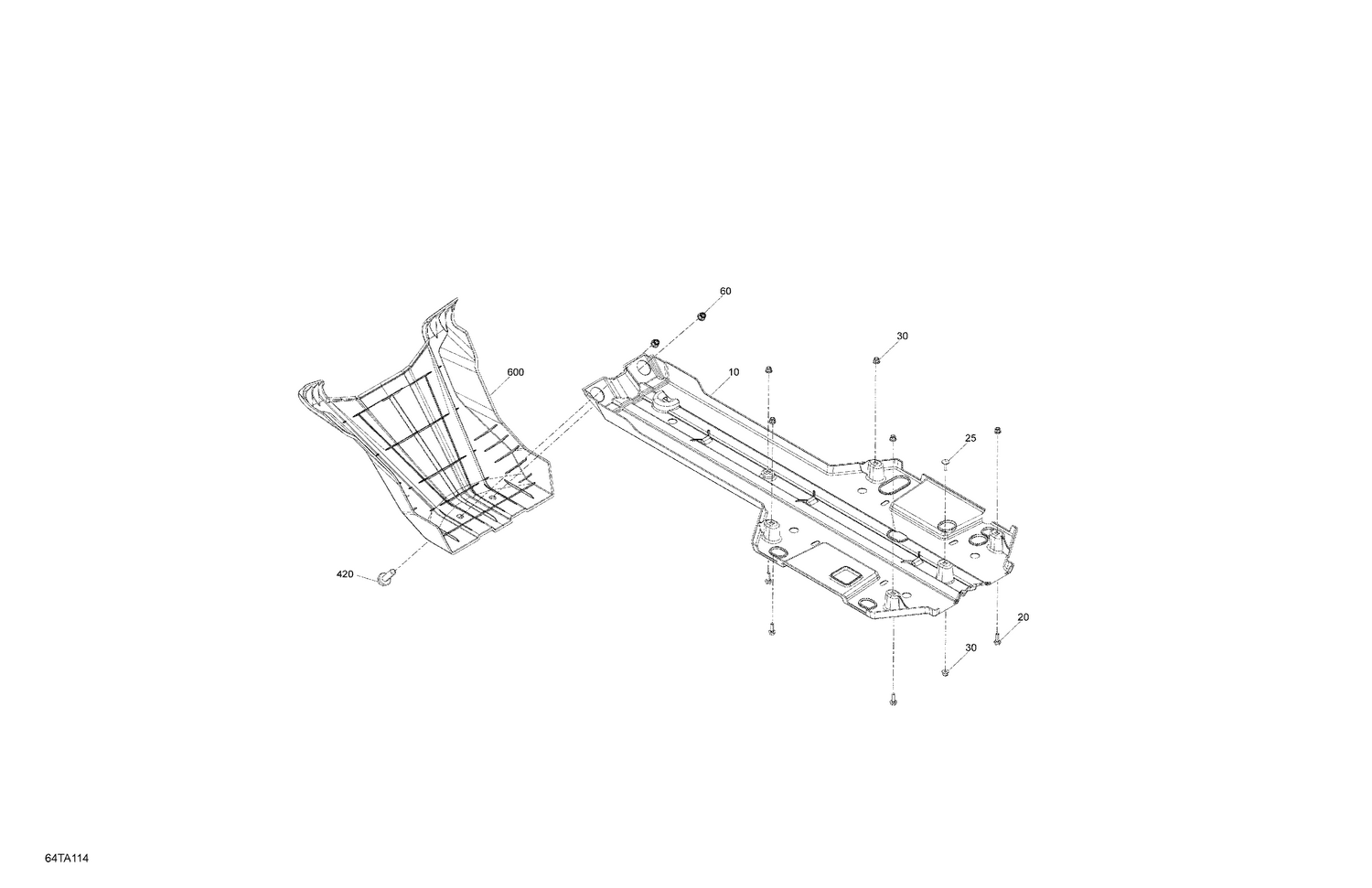

07- Body - Skid Plate - STD

07- Body - Skid Plate - STD

Parts (5)

RefPart NumberDescription
20 207662054 Hex. Flange Screw M6 X 20
25 207762044 Carriage Bolt M6 X 20
30 233261434 Flange Elastic Nut M6
60 233281434 Hex. Flange Elastic Nut M8
420 207682544 Hex. Flange Screw M8 X 25
