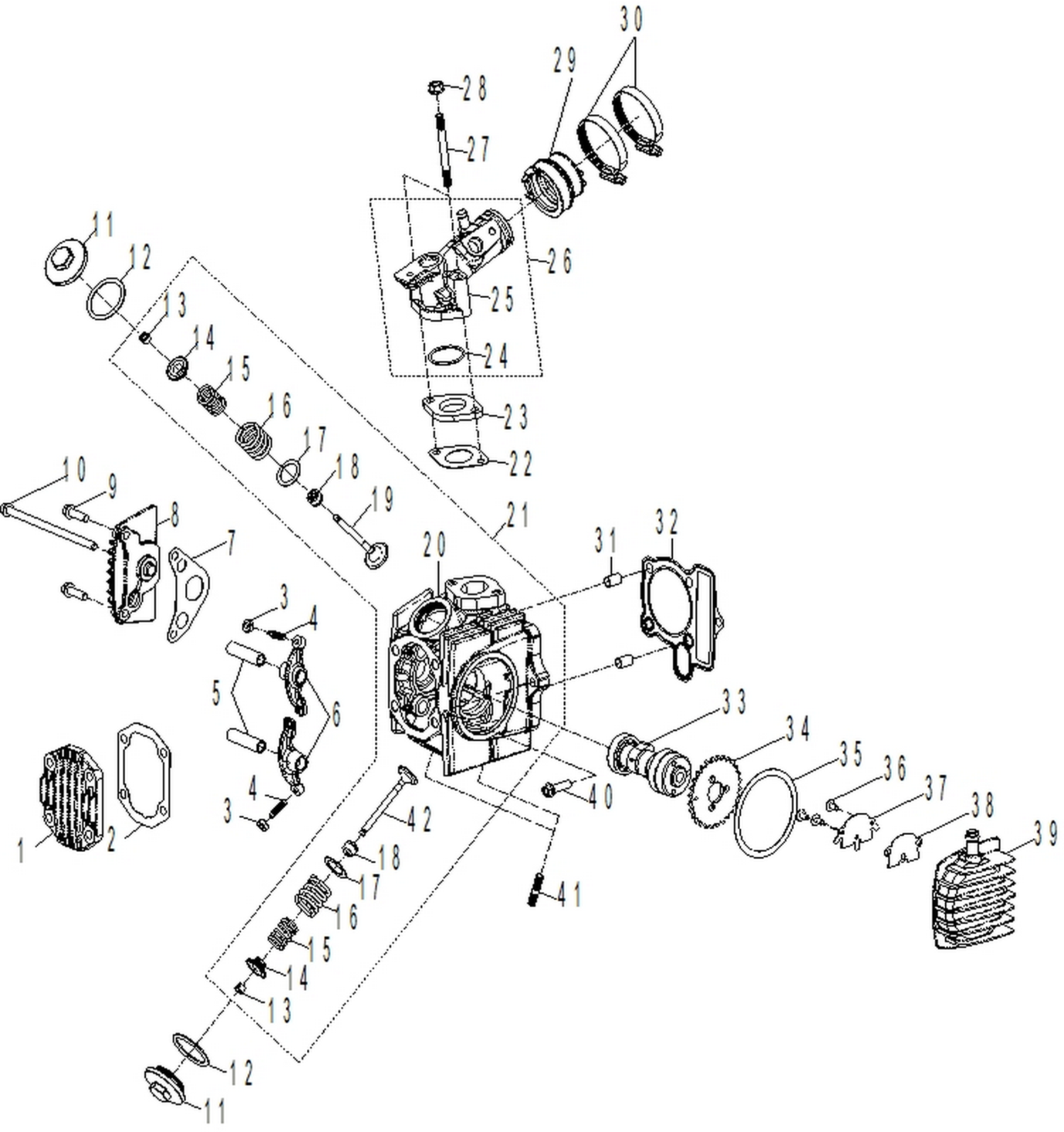

02- Engine - Cylinder Head
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A1230918S000 | Cover Cylinder |
| 2 | A12391121001 | Cover Gasket |
| 3 | A902060500000A | Adjusting Nut |
| 4 | A9001206015 | Adjusting Screw 90012-05185 |
| 5 | A1445218S000 | Rocker Arm Shaft |
| 6 | A1443118S000 | Rocker Arm |
| 7 | A12394010001 | Cylinder Right Cap Gasket |
| 8 | A1233122A000 | Cylinder Right Cap |
| 9 | A960000602088C3 | Hexagonal Head Bolt M6 X 20 |
| 10 | A960000611088C3 | Hexagonal Flange Bolt M6 X 110 |
| 11 | A1236118S000 | Cap |
| 12 | A9321203132 | Gasket (ACM) |
| 13 | A14781119000 | Valve Lock |
| 14 | A1477118S000 | Retainer Valve Spring |
| 15 | A1476118S000 | Spring Valve Inner |
| 16 | A1475118S000 | Spring Valve Outer |
| 17 | A1477518S000 | Spring Ring |
| 18 | A1220918S000 | Valve Seal |
| 19 | A1471118S000 | Intake Valve |
| 20 | A1220122A000 | Cylinder Head |
| 21 | A1222022C000 | Cylinder Head Ass'y |
| 22 | A17113119003 | Heat Insulation |
| 23 | A17112119000 | Cylinder Head Insulation |
| 24 | A9321002720 | O-RIng |
| 25 | A1710122C000 | Intake Manifold |
| 26 | A1710022C000 | Intake Manifold Ass'y |
| 27 | A9100106063B0C3 | Double Head Stud M6X63 |
| 28 | A94050060000C3 | Hexagonal Head Nut |
| 29 | A1614622C000 | Intake Manifold Socket |
| 30 | A9452002551A | Strap |
| 31 | A9430108140 | Dowel Pin |
| 32 | A1225122A00A | Cylinder Gasket |
| 33 | A1440022A000 | CamShaft |
| 34 | A1410518S000 | Cam Sprocket (28T) |
| 35 | A12395010001 | Cylinder Left Cap Ring |
| 36 | A9390310400880K3 | Self Tapping Screw M4 X 8 |
| 37 | A1230218S000 | Spacer |
| 38 | A12303010001 | Spacer Pad |
| 39 | A1234022C000 | Cylinder Left Cap |
| 40 | A960000602288C3 | Hex. Flange Screw M6 X 22 |
| 42 | A1472118S000 | Exhaust Valve |
