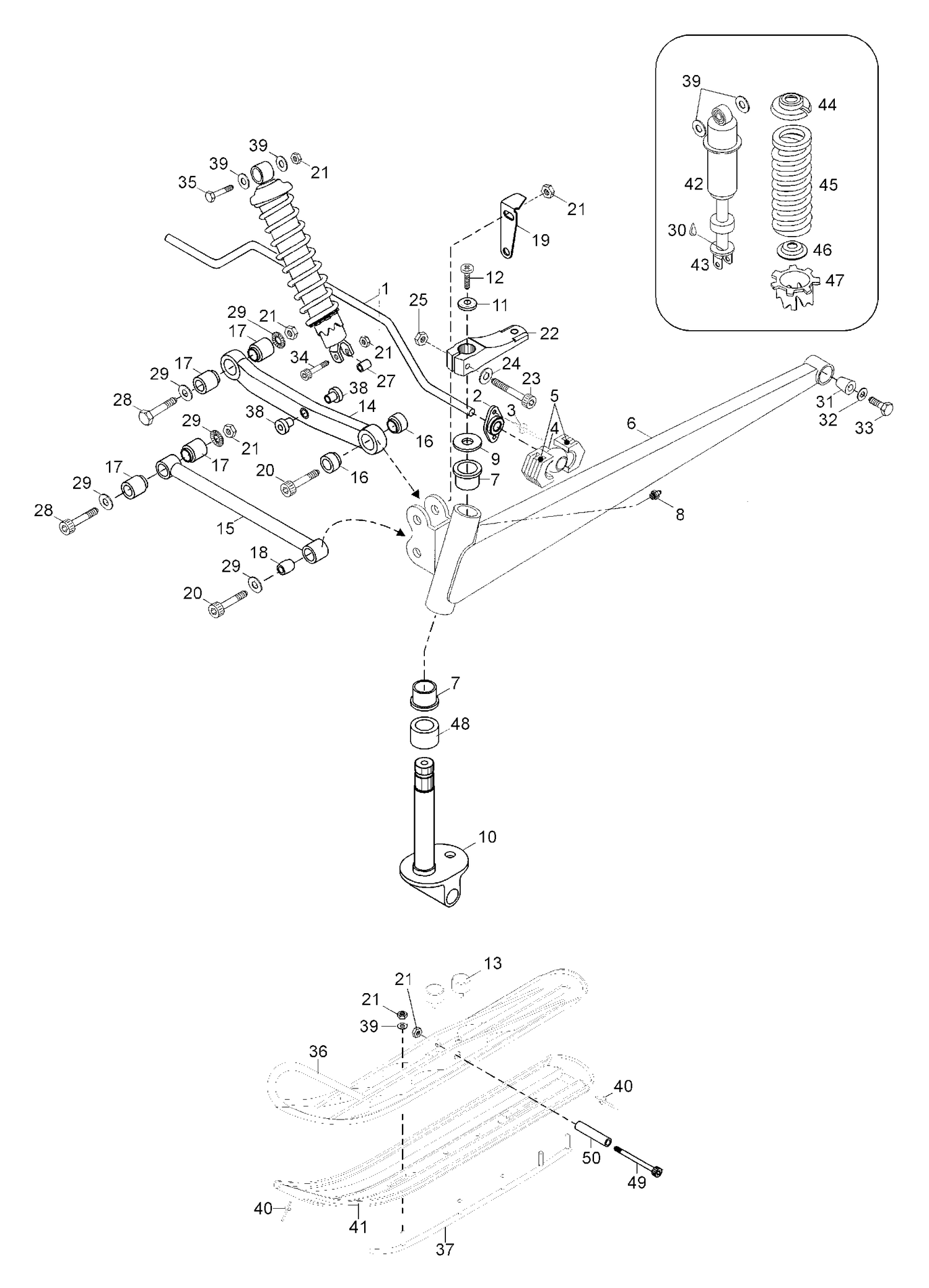

08- Front Suspension
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5241706 | Sway bar |
| 2 | 5440458 | Bearing |
| 3 | 36036 | Rivet |
| 4 | 5440438 | Ball joint |
| 5 | 572069800 | Block sliding, half |
| 6 | 5244589 | Swing arm, L.H. blue |
| 6 | 5244590 | Swing arm, R.H. blue |
| 7 | 31048 | Housing |
| 8 | 34011 | Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 9 | 31010 | Support ring |
| 10 | 5244462 | Ski leg |
| 11 | 5440849 | Coned washer |
| 12 | 40842 | Screw |
| 13 | 2848001 | Bumper |
| 14 | 5244591 | Upper arm, blue |
| 15 | 5244592 | Lower arm blue |
| 16 | 5443670 | Bushing, short |
| 17 | 5443669 | Bushing, long |
| 18 | 5440183 | Spacer |
| 19 | 5443972 | Limiter L.H. |
| 19 | 5443973 | Limiter R.H. |
| 20 | 40858 | Allen screw M10x50 |
| 21 | 33012 | Nut elastic M10 |
| 22 | 5343569 | Reversing Arm |
| 23 | 40851 | Allen screw M8x50 |
| 24 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
| 25 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 27 | 5441433 | Bushing |
| 28 | 40277 | Allen screw M10x65 |
| 29 | 20068 | Lock washer |
| 30 | 293800005 | Loctite 271 (10 ml) This part replaces 413707400. |
| 31 | 547543 | Cone Rubber |
| 32 | 20028 | Washer |
| 33 | 40039 | Screw M10x20 |
| 34 | 40837 | Allen Screw M10x55 DIN 912 (1=10pcs) - Call your local BRP dealership |
| 35 | 40020 | Screw M10x65 |
| 36 | 5244325 | Ski Weld. |
| 37 | 5244435 | Runner |
| 38 | 31088 | Bearing |
| 39 | 20005 | WASHER M10 - Call your local BRP dealership |
| 40 | Not | Available As Spare Part - Rivet - DOES NOT APPLY TO THIS MODEL |
| 41 | Not | Available As Spare Part - Plastic surface black - DOES NOT APPLY TO THIS MODEL |
| 42 | 23035 | Shock abs. RYDE FX |
| 43 | 5442741 | Clevis |
| 44 | 5340862 | Spring stopper |
| 45 | 250252 | Spring |
| 46 | 23177001 | Spring guide |
| 47 | 23176001 | Preload adjuster cam |
| 48 | 5443622 | Sleeve |
| 49 | 40348 | Allen screw M10x100 |
