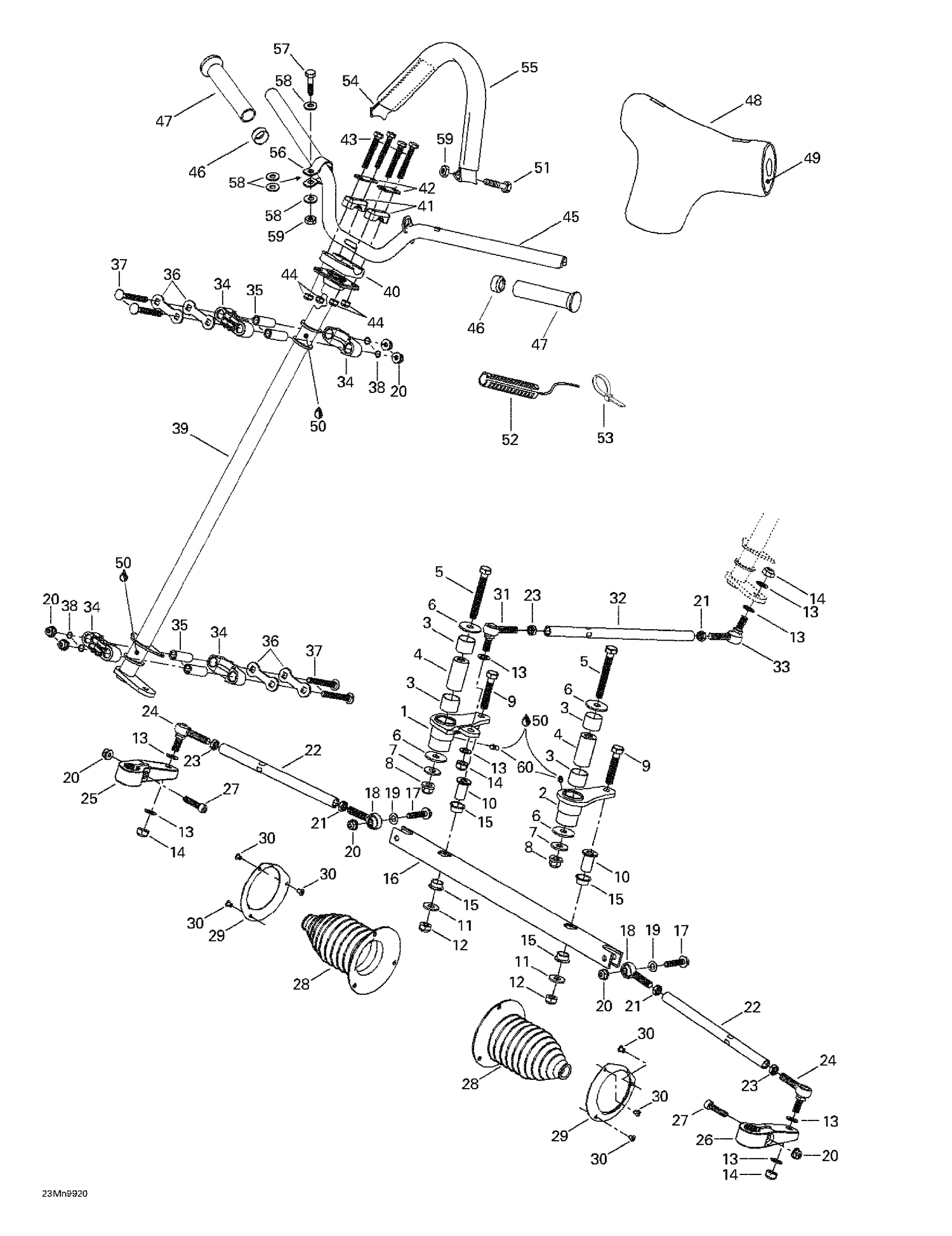

| Ref | Part Number | Description |
|---|
| 1 |
506146600 |
RH Swivel Arm |
| 2 |
506146700 |
LH Swivel Arm |
| 3 |
506149900 |
BUSHING SWIVEL - Call your local BRP dealership |
| 4 |
506150100 |
PIVOT SWIVEL - Call your local BRP dealership |
| 5 |
207008086 |
Hex. Screw M10 X 80 |
| 6 |
506150000 |
Washer 10 mm |
| 7 |
250200014 |
Flat Washer M10 This part replaces 506151251. |
| 8 |
250100105 |
Flange Nut M10 This part replaces 732610084. |
| 9 |
207005544 |
Hex. Screw M10 X 55 This part replaces 222005565. |
| 10 |
506147300 |
BAR PIVOT - Call your local BRP dealership |
| 11 |
224002251 |
FLAT WASHER - Call your local BRP dealership |
| 12 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 13 |
503175800 |
Washer |
| 14 |
232501416 |
Elastic Flange Nut M10 This part replaces 732610042. |
| 15 |
503191555 |
Swivel Bushing This part replaces 506150200. |
| 16 |
506147000 |
Bar-Swivel |
| 17 |
207684044 |
Hex. Flange Screw M8 X 40 |
| 18 |
506151101 |
LH Ball Joint |
| 19 |
506151252 |
Washer |
| 20 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 21 |
250100016 |
LH Threaded Hex. Jam Nut M10 This part replaces 732610011. |
| 22 |
506129600 |
Tie-Rod |
| 23 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 24 |
506151491 |
Ball Joint This part replaces 415012400. |
| 25 |
506145800 |
RH STEERING ARM - Call your local BRP dealership |
| 26 |
506145900 |
LH STEERING ARM - Call your local BRP dealership |
| 27 |
222983565 |
Allen Screw M8 x 35 |
| 28 |
570070500 |
TIE-ROD CAP - Call your local BRP dealership |
| 29 |
506151100 |
RETAINER RING - Call your local BRP dealership |
| 30 |
390402300 |
Pop Rivet 3/16" |
| 31 |
506151492 |
RH BALL JOINT - Call your local BRP dealership This part replaces 414768000. |
| 32 |
506150300 |
Inside Tie-Rod |
| 33 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 414768100. |
| 34 |
506150400 |
Housing Half |
| 35 |
506150500 |
Housing Bushing |
| 36 |
506150600 |
Stopper Plate |
| 37 |
207787044 |
Carriage Bolt M8 X 70 |
| 38 |
506151140 |
O-RING - Call your local BRP dealership |
| 39 |
506151222 |
Main Tube |
| 40 |
277000142 |
STEERING CLAMP - Call your local BRP dealership |
| 41 |
709400919 |
Steering Support This part replaces 414491600. |
| 42 |
709400509 |
Stiffner This part replaces 506151196. |
| 43 |
207085544 |
Hex. Screw M8 X 55 This part replaces 222085565. |
| 44 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 45 |
506151193 |
Handle Bar |
| 46 |
572081900 |
HANDLEBAR END - Call your local BRP dealership |
| 47 |
506151530 |
RH Grip 6-1/2" This part replaces 572100500. |
| 49 |
506151264 |
Foam |
| 50 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 51 |
207063544 |
Hex. Flange Screw M6 X 35 |
| 52 |
515175573 |
Heating Grip This part replaces 515175162. |
| 53 |
293750001 |
Tie Wrap 94 mm |
| 54 |
506152115 |
Strap Ass'y This part replaces 415095500. |
| 55 |
506152115 |
Strap Ass'y This part replaces 415090200. |
| 56 |
506148200 |
Support Plate |
| 57 |
207162544 |
Hex. Screw M6 X 25 This part replaces 222062565. |
| 58 |
234061410 |
Flat Washer 6 mm |
| 59 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
