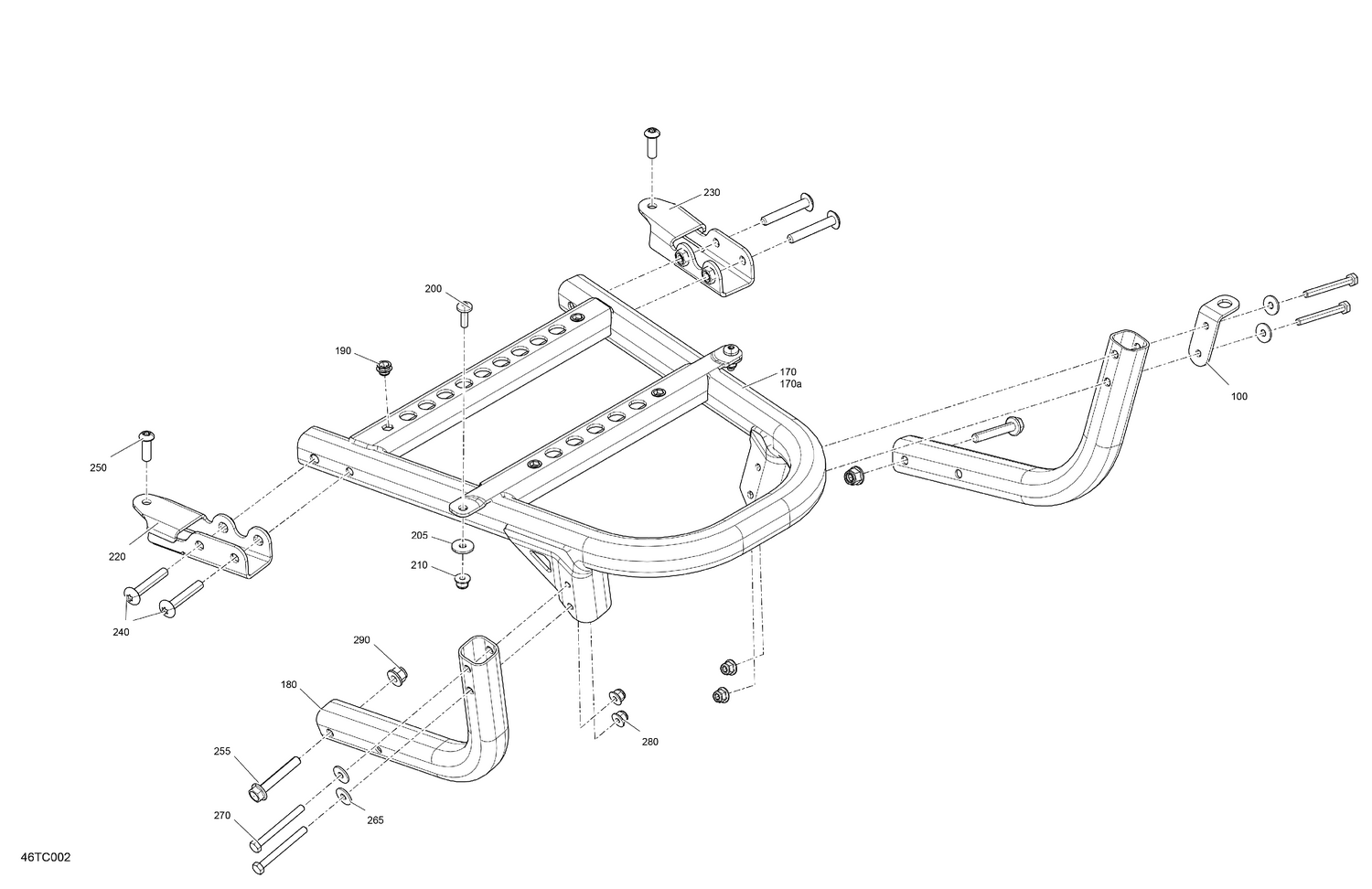

07- Body - Rear Bumper
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 705015697 | Black, Flag Support |
| 170 | 715009023 | Deep Black, Rear Bumper Kit |
| 170a | 715001894 | Kit Rear Bumper |
| 180 | 705018526 | Deep Black, Rear Pillar -SB This part replaces 705016209. |
| 190 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 200 | 250000712 | Torx Screw M6 X 20 |
| 205 | 224061201 | Flat Washer |
| 210 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 220 | 705004977 | LH Front Bracket |
| 230 | 705004978 | RH Front Bracket |
| 240 | 250000844 | Torx Screw M8 X 50 S.GRIP |
| 250 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr |
| 255 | 207685044 | Hex. Flange Screw M8 X 50 |
| 265 | 234062670 | Stainless Steel Flat Washer |
| 270 | 250000778 | Hex. Flange Screw M6 X 60 |
| 280 | 233261494 | Hex. Flange Elastic Nut M6 |
