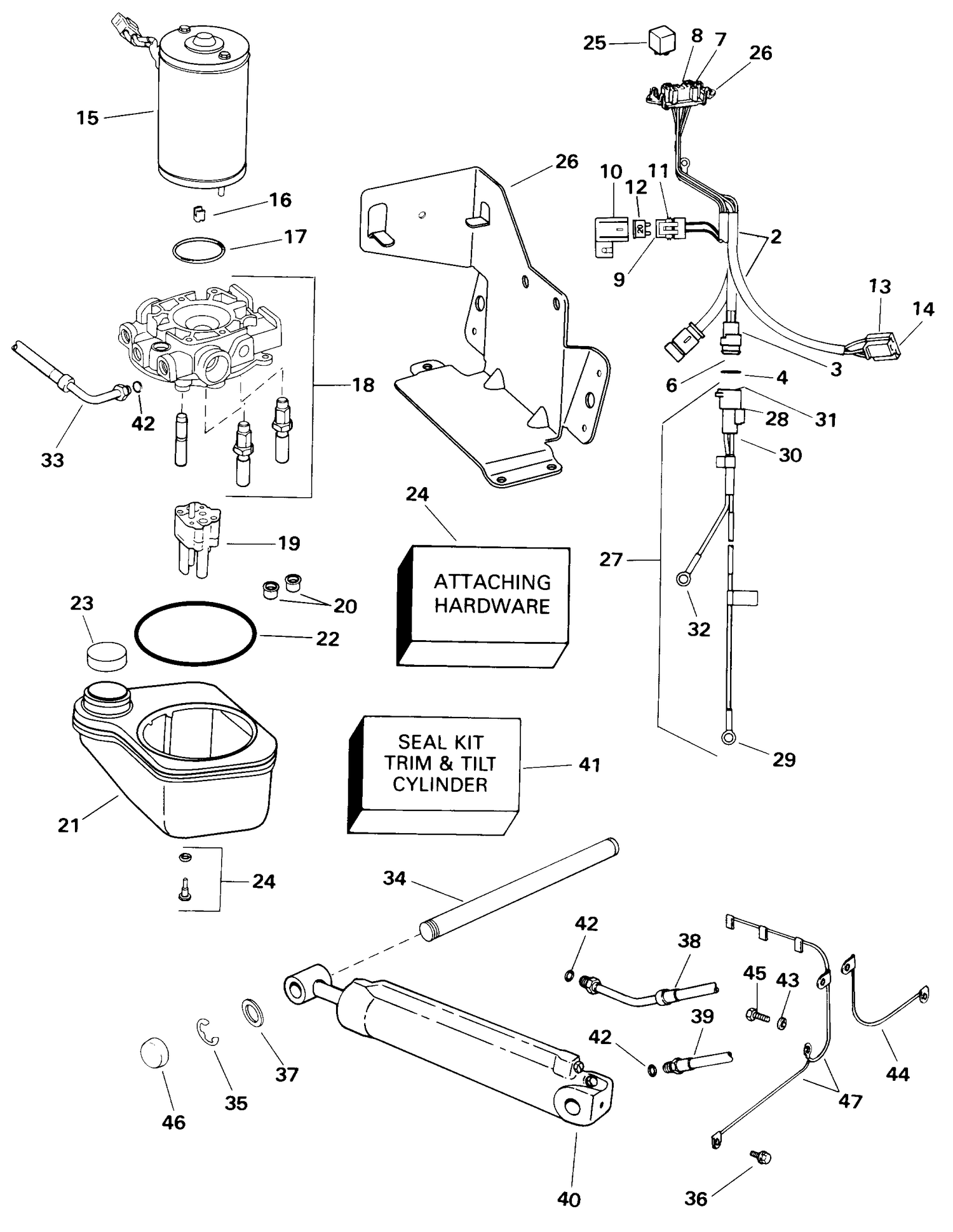

| Ref | Part Number | Description |
|---|
| 1 |
3860879 |
Manifold & Pump Ay This part replaces 3858069. |
| 2 |
3857345 |
CABLE |
| 11 |
3858187 |
CONNECTOR, Fuse |
| 13 |
0958210 |
CONNECTOR, Motor |
| 15 |
3858071 |
MOTOR ASSY. |
| 16 |
3858072 |
COUPLING, Motor to adapter |
| 17 |
3858073 |
O-RING, Motor to adapter |
| 18 |
3858074 |
ADAPTER, Motor to pump |
| 19 |
3858075 |
PUMP ASSY. |
| 20 |
3858076 |
FILTER |
| 21 |
3858077 |
RESERVOIR ASSY. |
| 22 |
3858078 |
SEAL, Reservoir to adapter |
| 23 |
3858079 |
CAP, Reservoir |
| 24 |
3858080 |
HARDWARE |
| 25 |
3858809 |
Relay This part replaces 3858081. |
| 26 |
3858083 |
BRACKET |
| 27 |
3854031 |
CABLE ASSY., Trim/tilt |
| 29 |
3852527 |
RING TERMINAL |
| 33 |
3853825 |
OIL LINE ASSY., Pump to manifold |
| 34 |
3857431 |
PIVOT PIN, Tilt cylinder |
| 35 |
3857521 |
CLIP, Pivot pin |
| 36 |
3852568 |
SCREW, Cover |
| 37 |
3857588 |
WASHER, Pivot pin |
| 38 |
3857523 |
OIL LINE, Port, down |
| 38 |
3857524 |
OIL LINE, Starboard, down |
| 39 |
3853855 |
OIL LINE, Starboard, up |
| 39 |
3853857 |
OIL LINE, Port, up |
| 40 |
3857470 |
CYLINDER ASSY. |
| 41 |
0985060 |
SEAL KIT This part replaces 3854247. |
| 43 |
0329241 |
RONDELLE This part replaces 3852193. |
| 44 |
0985394 |
GROUND WIRE, 2-loop This part replaces 3853849. |
| 46 |
3857522 |
CAP, Pivot shaft, tilt cylinder |
| 3854248 |
3854248 |
SPACER, Tilt limit |
| 3858304 |
3858304 |
SPACER, Tilt limit |
