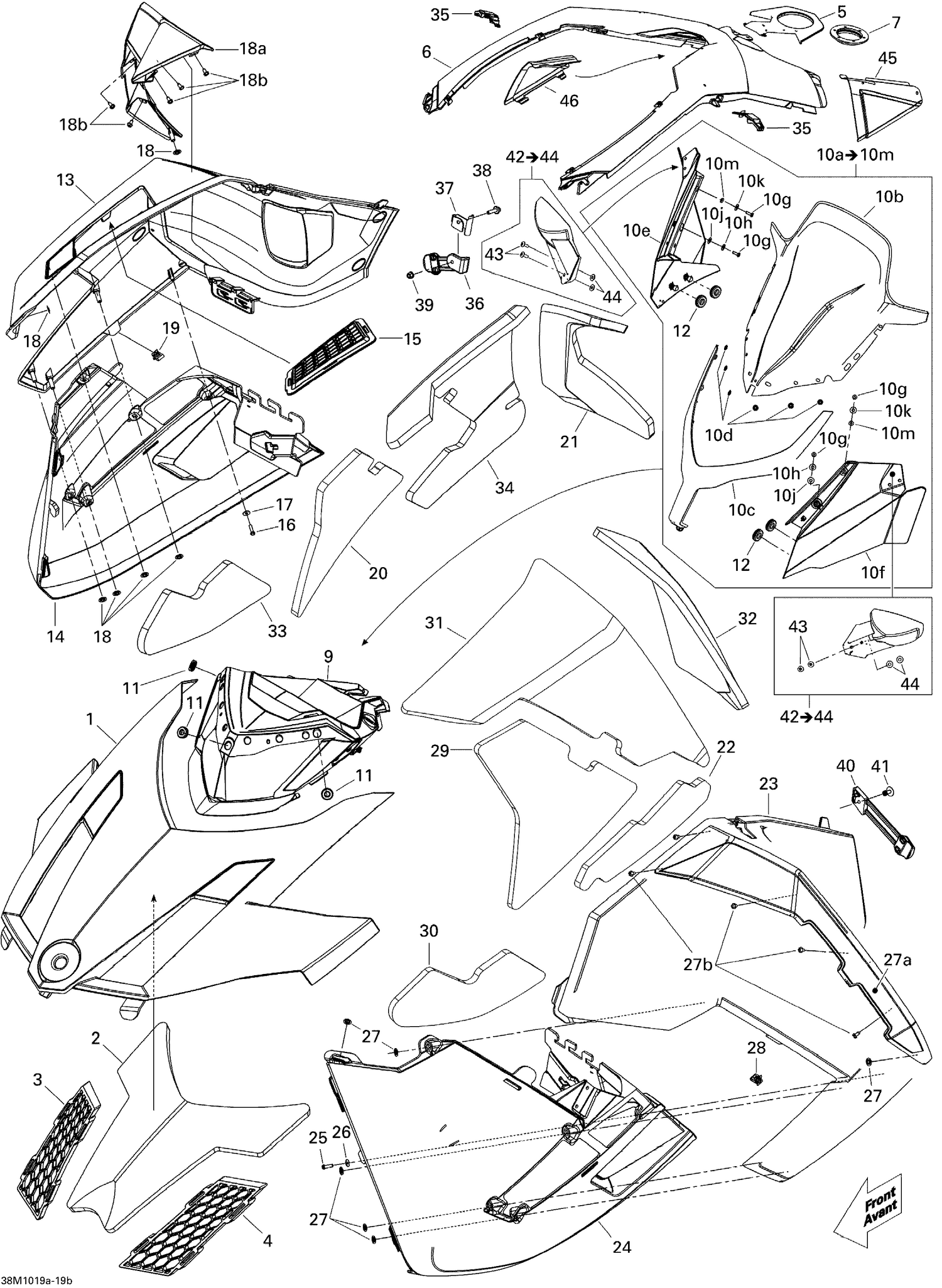

| Ref | Part Number | Description |
|---|
| 2 |
517304893 |
Hood Foam This part replaces 517303740. |
| 3 |
517303805 |
RH Hood Grille This part replaces 517304243. |
| 4 |
517303804 |
LH Hood Grille This part replaces 517304242. |
| 5 |
517304027 |
Deep Black, Cap Console |
| 7 |
517304518 |
Console Nut |
| 9 |
517303996 |
INDICATOR SUPPORT - Call your local BRP dealership |
| 10b |
517304268 |
EXTRA HIGHT WINDSHIELD (620) - Call your local BRP dealership |
| 10c |
860200230 |
Windshield Support Kit This part replaces 517303744. |
| 10d |
732610072 |
Push Nut |
| 10e |
517303745 |
RH Console Air Deflector |
| 10f |
517303746 |
LH CONSOLE AIR DEFLECTOR - Call your local BRP dealership |
| 10g |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 10h |
250200025 |
Washer M5 |
| 10j |
250200024 |
Rubber Washer 5 mm |
| 10k |
517225900 |
Flat Washer This part replaces 517304282. |
| 10m |
517304281 |
Rubber Washer 5 mm |
| 11 |
517303756 |
Grommet |
| 12 |
517303756 |
Grommet |
| 14 |
517304373 |
PANEL_BODY LWR R B-160 - Call your local BRP dealership |
| 15 |
517304240 |
GRILL - Call your local BRP dealership |
| 16 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 17 |
234042600 |
Flat Washer 4 mm, Stainless |
| 18 |
732610072 |
Push Nut |
| 18b |
732601210 |
HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership |
| 19 |
517302785 |
Edge Clip |
| 20 |
517304894 |
CENTRAL FOAM PANEL RH - Call your local BRP dealership This part replaces 517303750. |
| 21 |
517304895 |
REAR PANEL FOAM RH - Call your local BRP dealership This part replaces 517303751. |
| 22 |
517304897 |
CENTRAL FOAM PANEL LH - Call your local BRP dealership This part replaces 517304277. |
| 24 |
517304362 |
PANEL_BODY LWR L B-160 - Call your local BRP dealership |
| 25 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 26 |
234042600 |
Flat Washer 4 mm, Stainless |
| 27 |
732610072 |
Push Nut |
| 27b |
732601210 |
HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership |
| 28 |
517302785 |
Edge Clip |
| 29 |
517304899 |
LH CENTRAL PANEL FOAM - Call your local BRP dealership This part replaces 517304274. |
| 30 |
517304901 |
LH LOWER PANEL FOAM - Call your local BRP dealership This part replaces 517304059. |
| 31 |
517304902 |
LH UPPER PANEL FOAM - Call your local BRP dealership This part replaces 517304276. |
| 32 |
517304904 |
LH REAR PANEL FOAM - Call your local BRP dealership This part replaces 517304135. |
| 33 |
517304905 |
RH LOWER PANEL FOAM - Call your local BRP dealership This part replaces 517304063. |
| 34 |
517304908 |
RH UPPER PANEL FOAM - Call your local BRP dealership This part replaces 517304080. |
| 35 |
517305000 |
Panel Latch This part replaces 517303973. |
| 36 |
517303612 |
RH Panel Latch |
| 37 |
517304221 |
Latch Support |
| 38 |
207652044 |
Hex.Flange Screw M5 X 20 |
| 39 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 40 |
517303808 |
LH Panel Latch |
| 41 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 43 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 44 |
250200024 |
Rubber Washer 5 mm |
