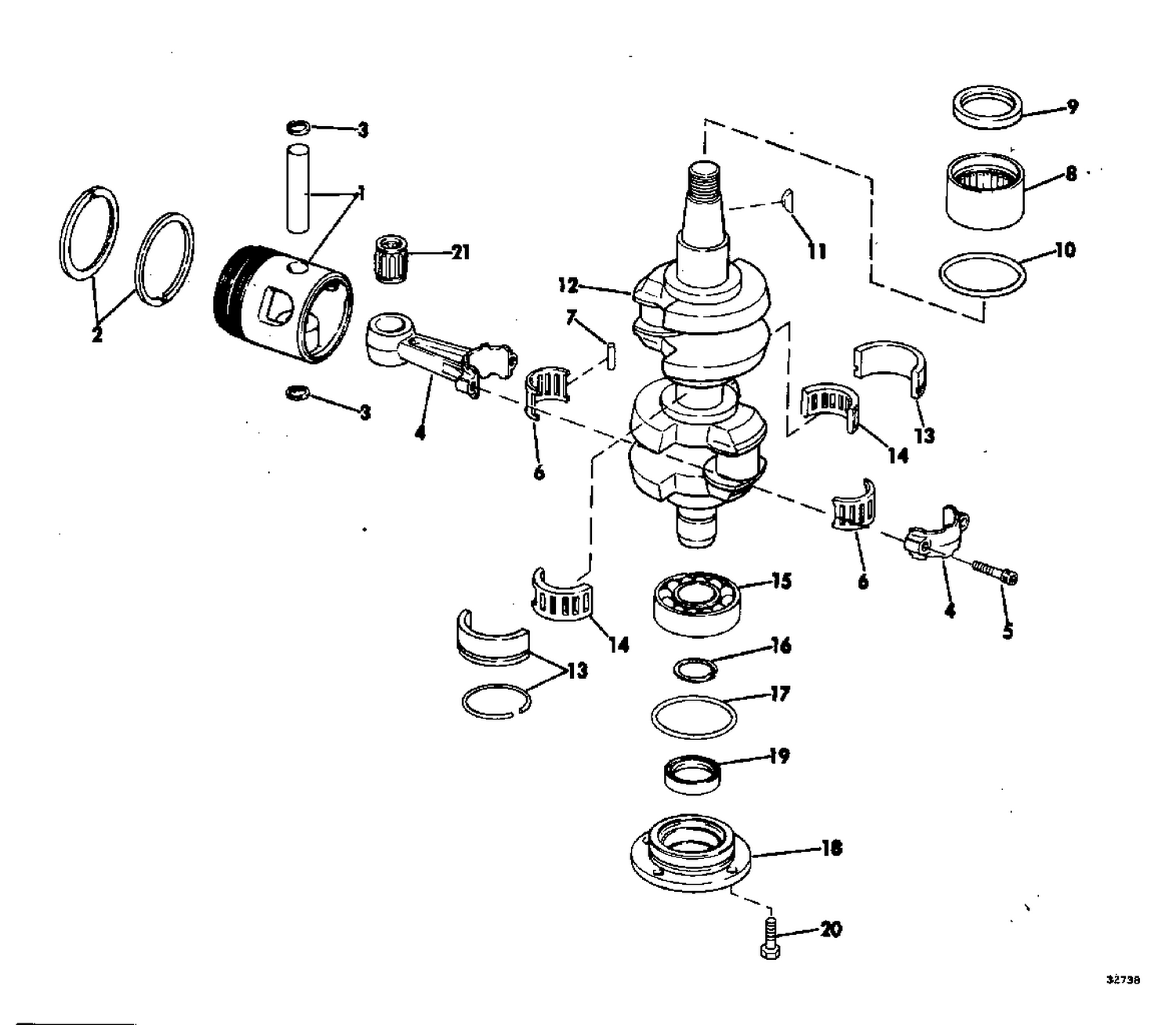

CRANKSHAFT & PISTON
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0386094 | PISTON & WRIST PIN, Std. |
| 1 | 0386097 | PISTON & WRIST PIN,.030" |
| 2 | 0385798 | RING SET, Std |
| 2 | 0385799 | RING SET , .030 O.S. |
| 3 | 0302577 | RETAINING RING |
| 4 | 0383903 | CONNECTING ROD ASSY |
| 6 | 0437088 | BEARING Assy This part replaces 0378528. |
| 7 | 0387142 | NEEDLE SET, RD |
| 8 | 0390900 | ROLLER BEARING ASSY This part replaces 0383955. |
| 10 | 0313754 | O RING |
| 12 | 0315474 | CRANKSHAFT |
| 13 | 0310433 | SLEEVE |
| 14 | 0378252 | BEARING ASSY., Needle |
| 17 | 0308876 | O RING CRANKCASE HEAD LOWER |
| 18 | 0395820 | CRANKCASE HEAD ASSY. This part replaces 0385835. |
| 20 | 0551793 | SCREW |
